On-Vehicle Inspection

Depress the parking brake pedal all the way and count the number of clicks.

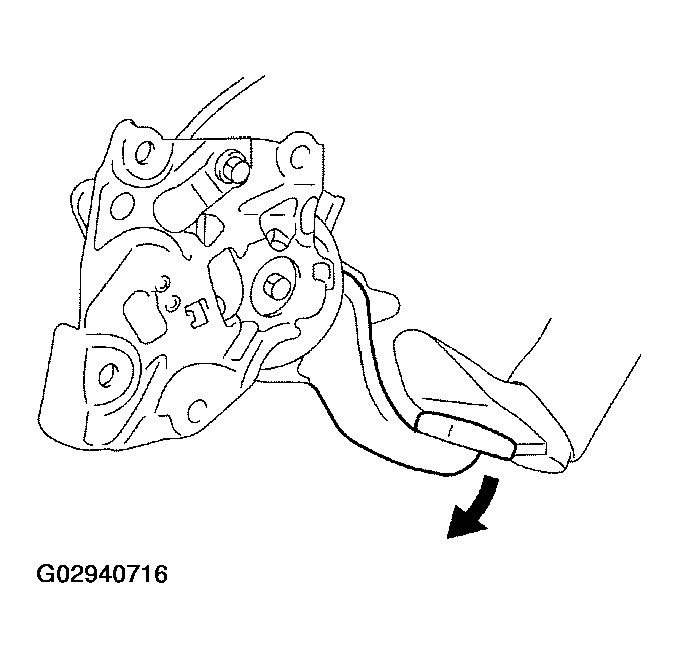

Fig 1: Checking Parking Brake Pedal Travel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Parking brake lever travel at 294 N (30 kgf, 66.1 lbf):7 - 9 clicks

HINT:

Before adjusting the parking brake, make sure that the rear brake shoe clearance has been adjusted. For shoe clearance adjustment, (see REASSEMBLY ).

1. Loosen the lock nut and turn the adjusting nut until the pedal travel is correct.
2. Tighten the lock nut.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

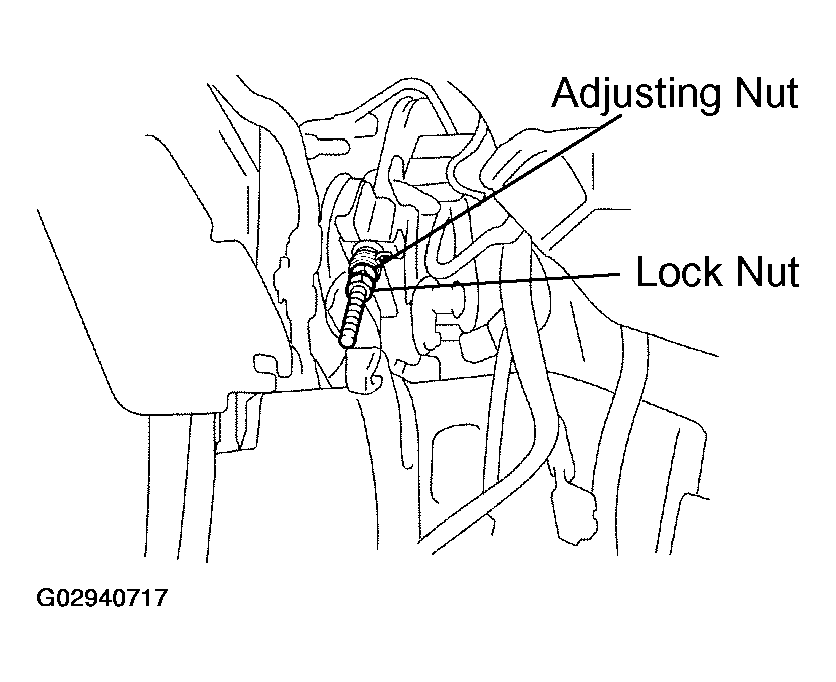

   Fig 2: Locating Adjusting And Lock Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
