Parking Brake Pedal: Components

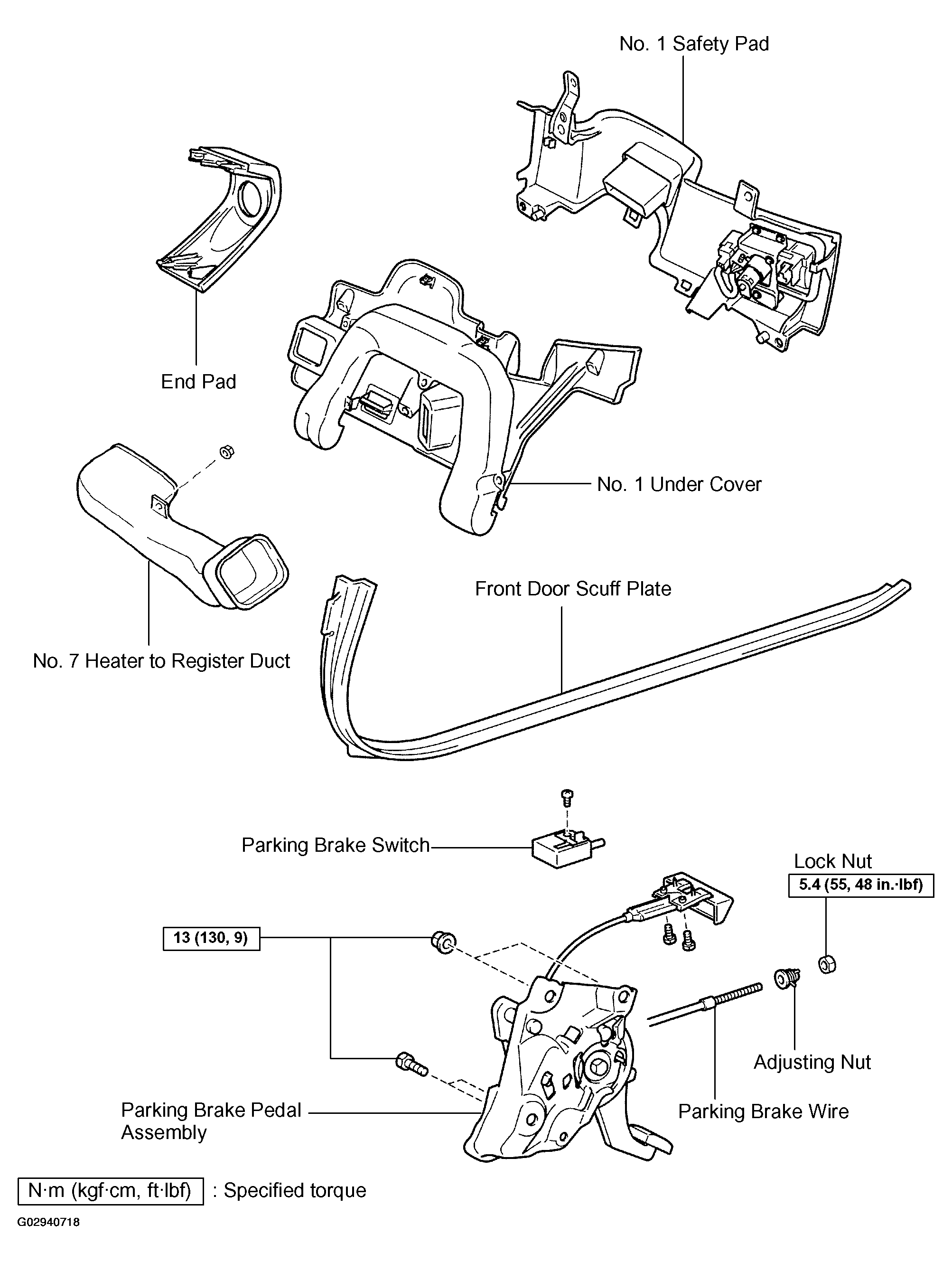

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications

G02940718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
