Install Accumulator Bracket

When installing the accumulator bracket, adjust to ensure that clearance (A, B, D and E) shown in Fig 1 corresponds to each value in the graphs (Fig 2) and are within the C range, using a thickness gauge.

C Range: 0.1 - 0.4 mm (0.004 - 0.016 in.)

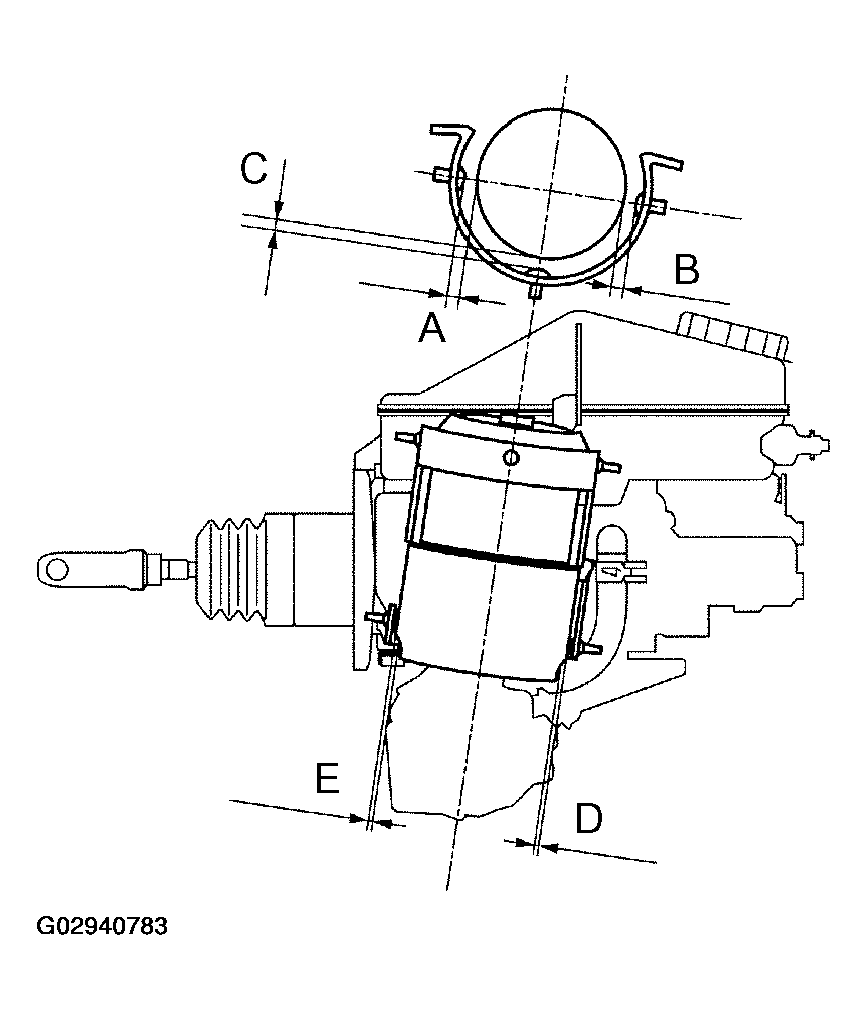

Fig 1: Installing Accumulator Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

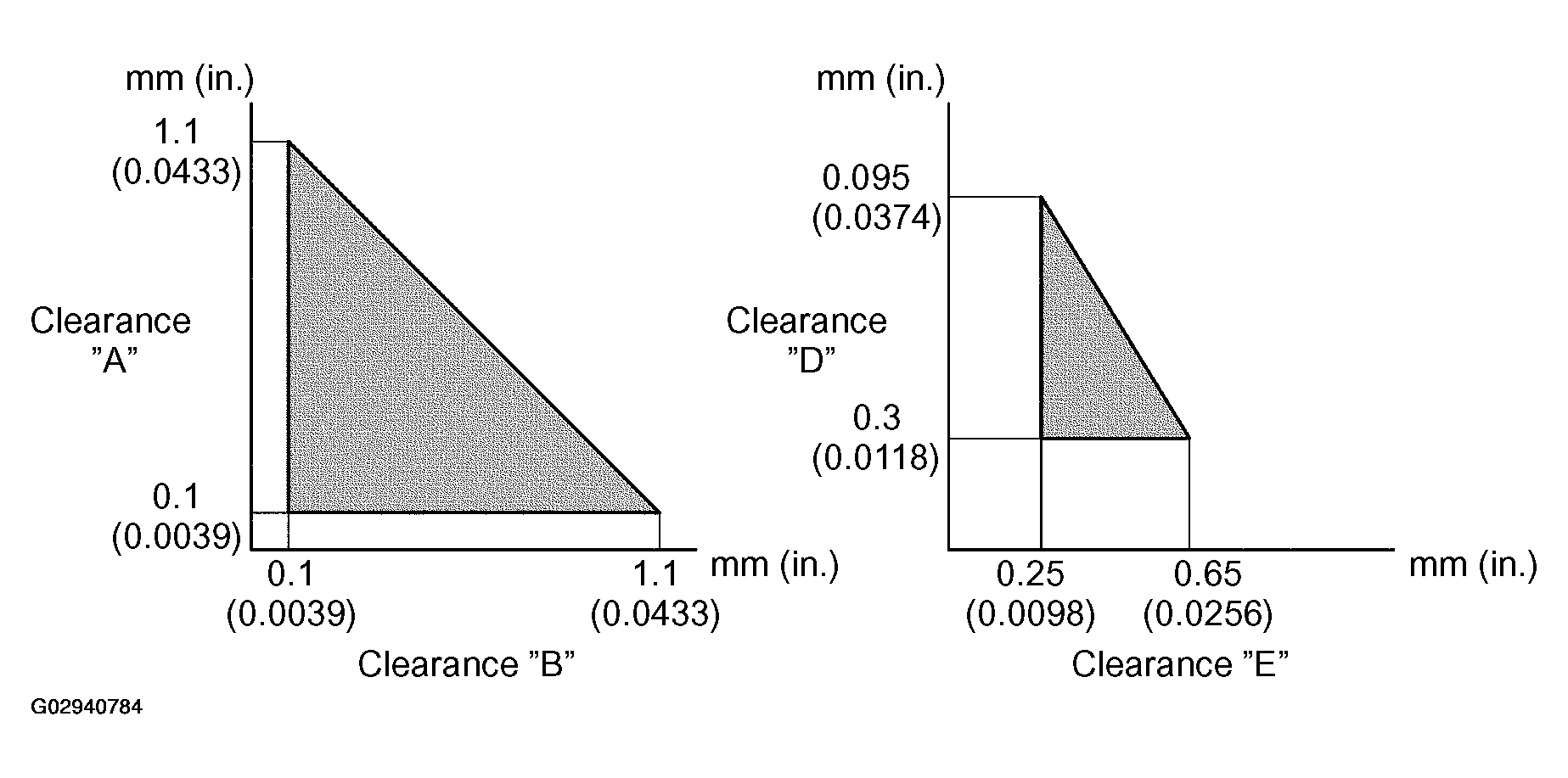

Fig 2: Clearance Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
