Hydraulic Brake Booster: Inspection

INSPECT HYDRAULIC BRAKE BOOSTER PUMP MOTOR OPERATION

1. Connect the positive (+) lead from the battery to terminal of pump motor, and the negative (-) lead to terminal 2.
2. Check that the pump motor operation.

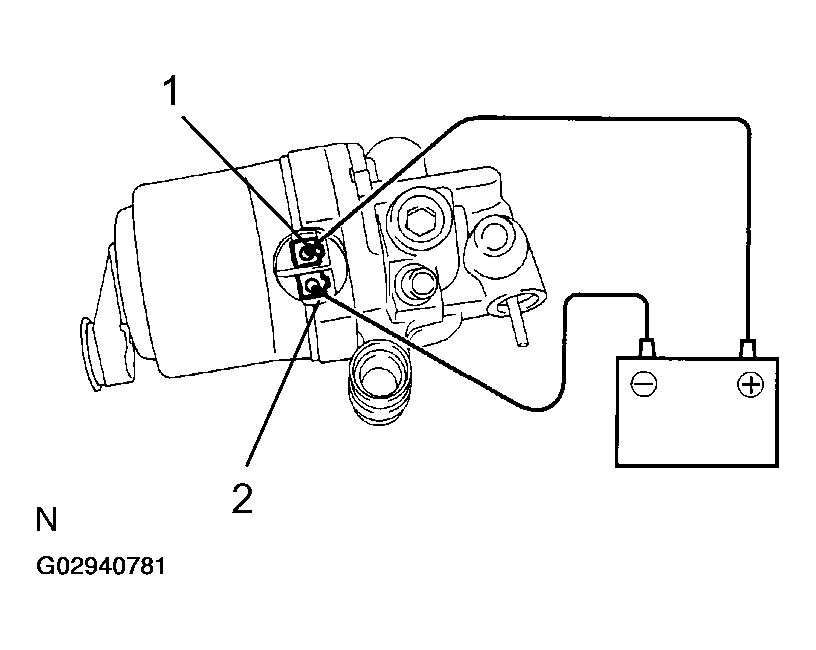

   Fig 1: Inspecting Hydraulic Brake Booster Pump Motor Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
