Hydraulic Brake Booster: Disposal

DISPOSAL METHOD OF ACCUMULATOR

1. Follow the procedures described below and drain the high pressure gas from the accumulator.
2. Place the accumulator in a vise, cover it with a cloth over a saw then cut the accumulator body slowly.
   CAUTION: Never cut at a stretch.
3. When the outer body of the accumulator is cut, gas discharges.

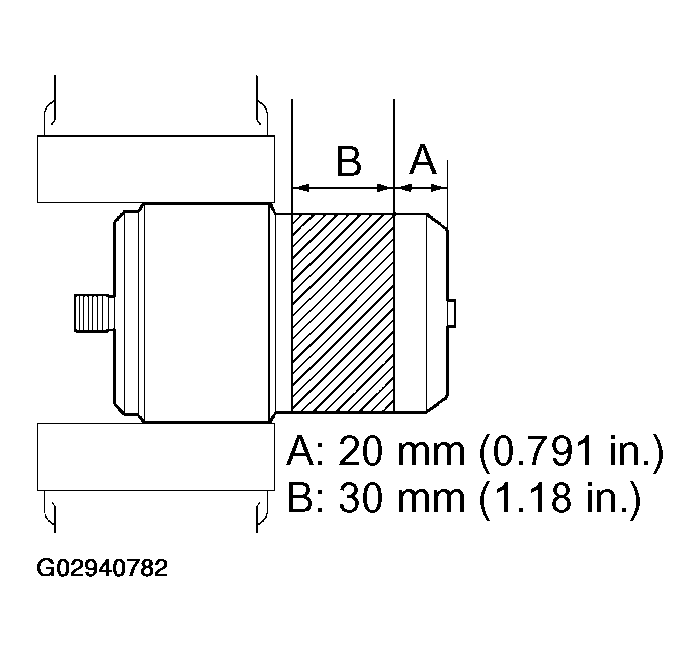

   Fig 1: Measuring Accumulator For Discharging Gas

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
