Hydraulic Brake Booster: Components

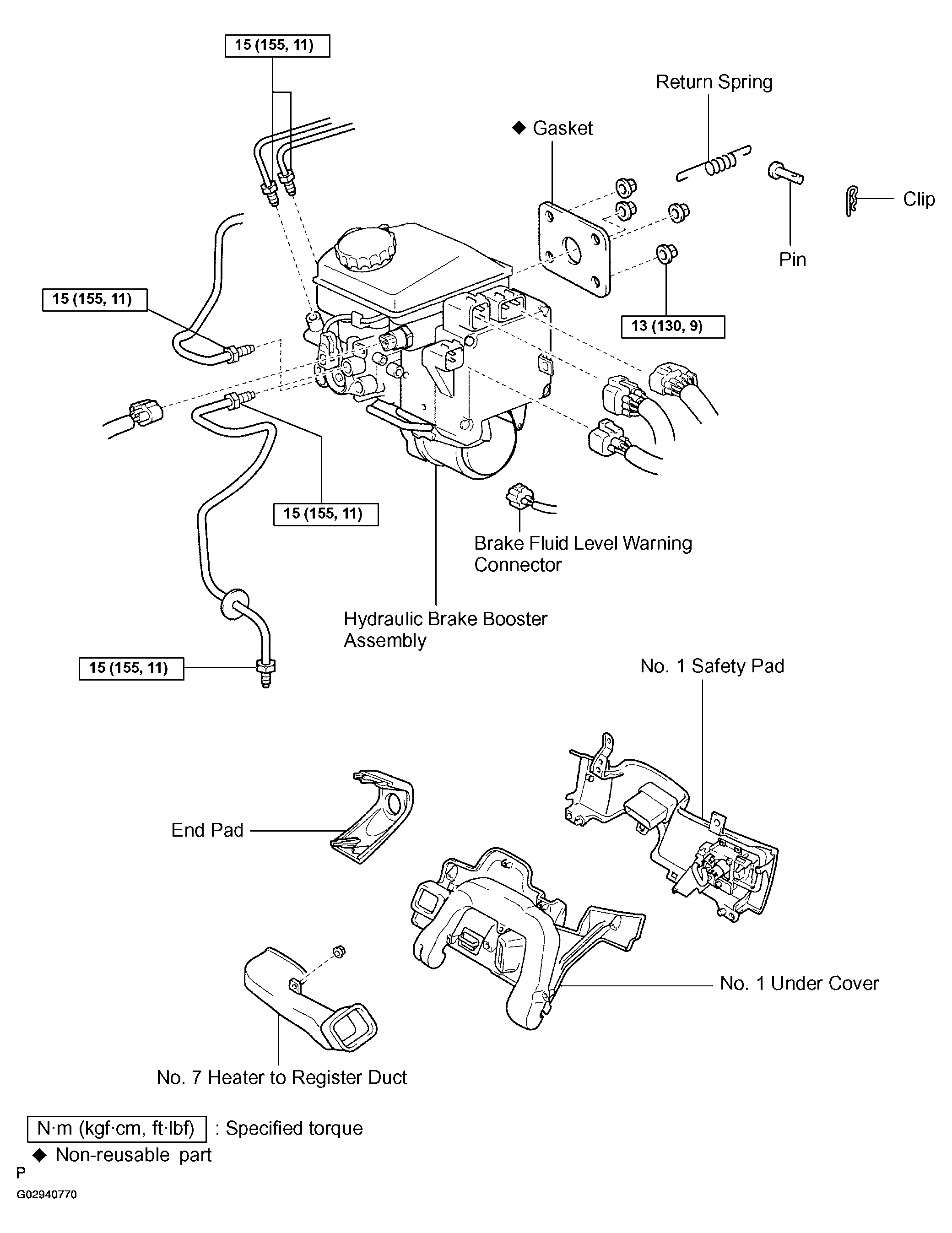

Fig 1: Hydraulic Brake Booster Replacement Components With Torque Specifications (1 Of 2)
G02940770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

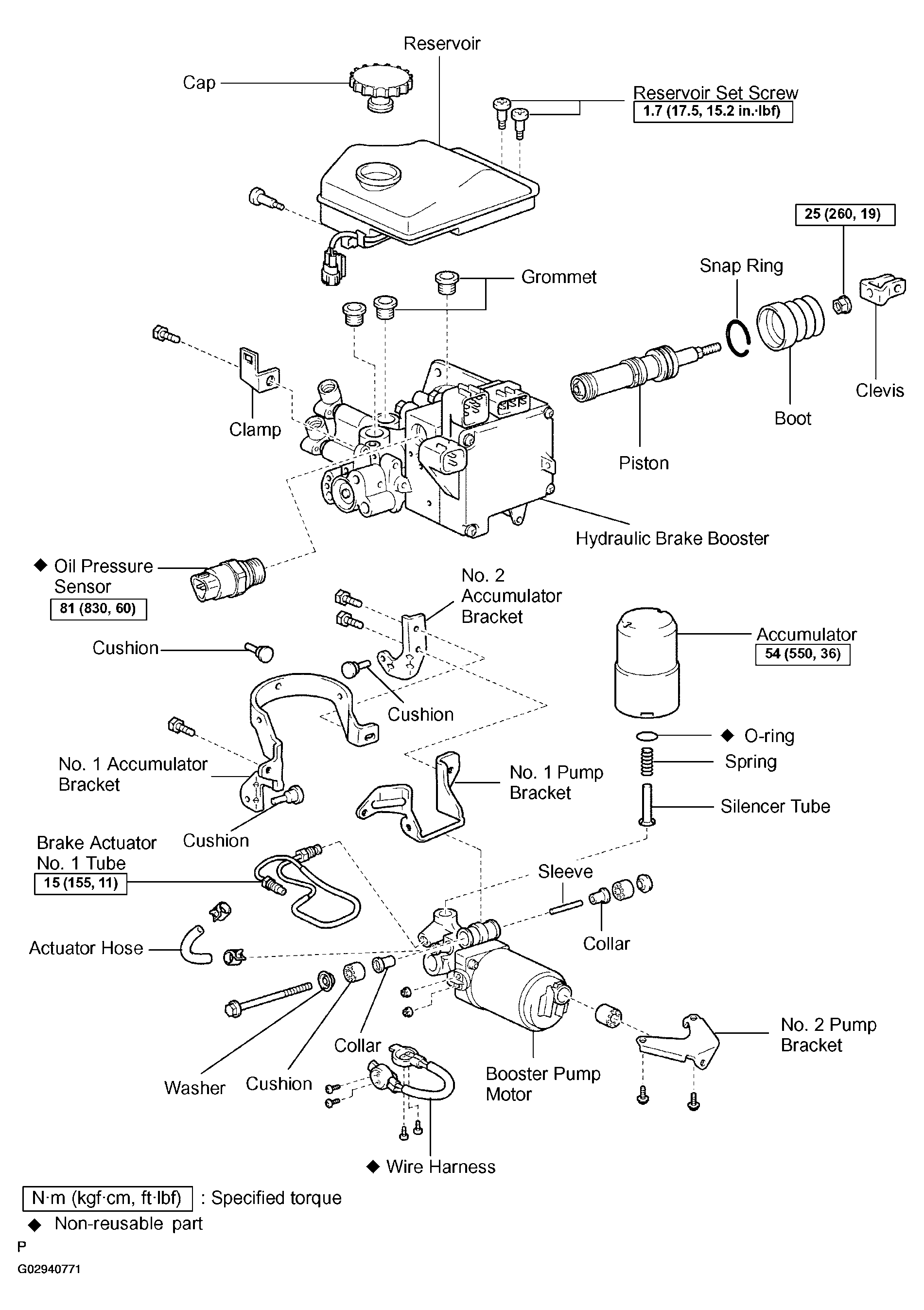

Fig 2: Hydraulic Brake Booster Replacement Components With Torque Specifications (2 Of 2)
G02940771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
