Front Brake Pad: Components

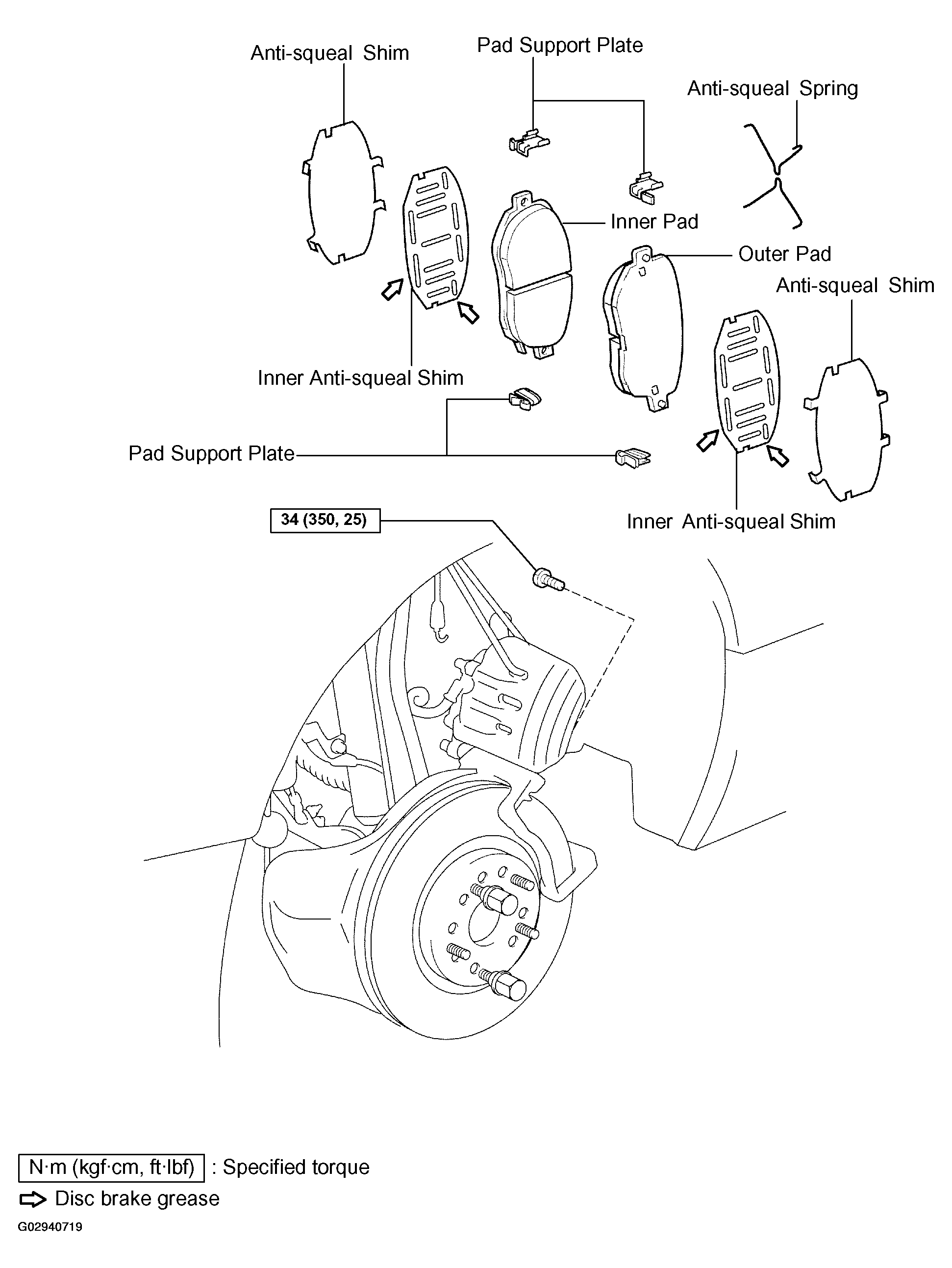

Fig 1: Brake Bad Replacement Components With Torque Specifications

G02940719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
