Front Brake Caliper: Components

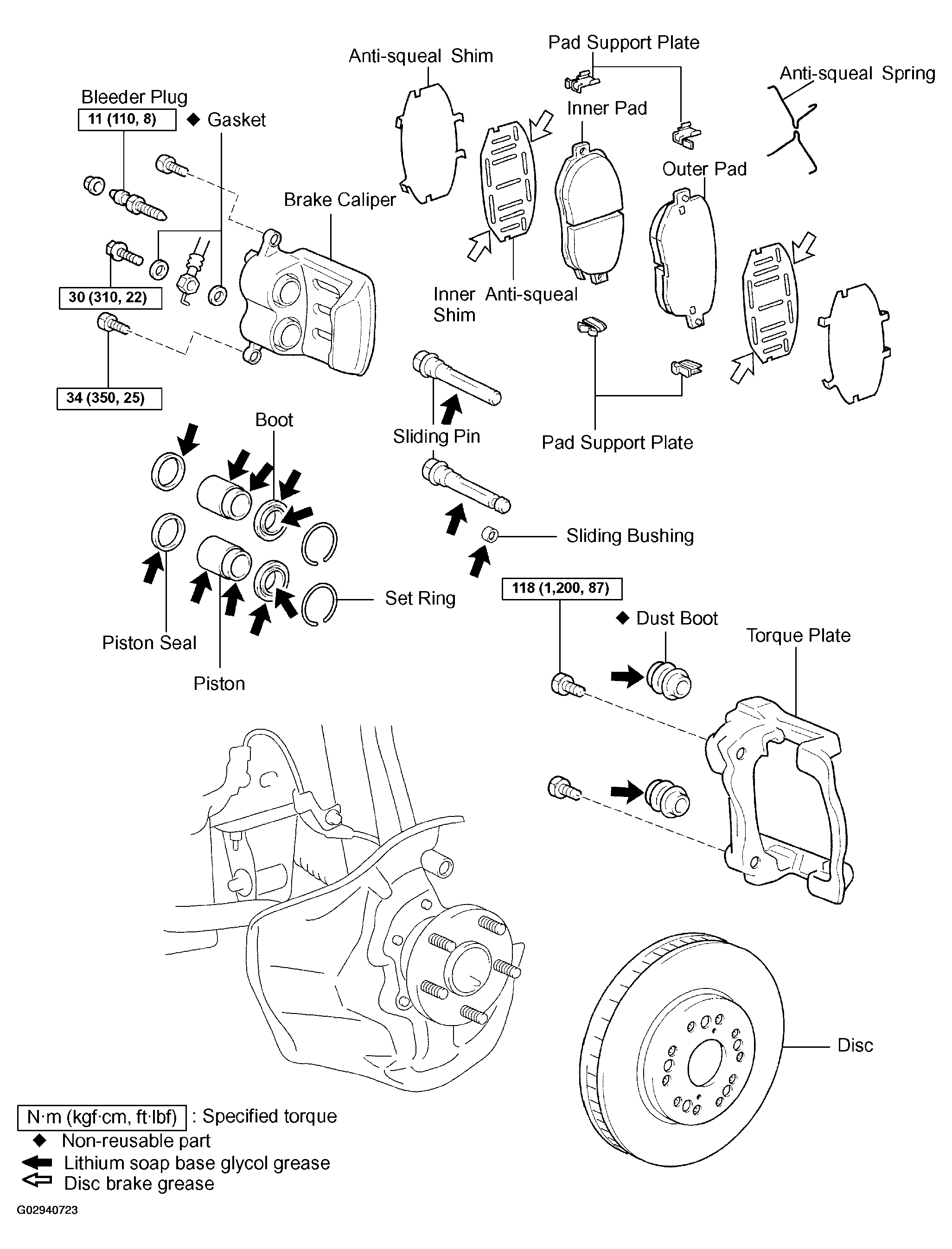

Fig 1: Front Brake Caliper Replacement Components With Torque Specifications

G02940723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
