Camshaft (LH Bank) (3MZ-FE): Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
DRAIN ENGINE COOLANT (See REPLACEMENT )
REMOVE FRONT WHEEL RH
REMOVE V-BANK COVER SUB-ASSY (See REPLACEMENT )
REMOVE RADIATOR HOSE INLET
REMOVE IGNITION COIL ASSY
REMOVE CYLINDER HEAD COVER SUB-ASSY LH (See ADJUSTMENT )
REMOVE FRONT FENDER APRON SEAL RH
REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See DRIVE BELT (3MZ-FE) )
REMOVE VANE PUMP V BELT (See DRIVE BELT (3MZ-FE) )
REMOVE ENGINE MOVING CONTROL ROD (See REPLACEMENT )
REMOVE ENGINE MOUNTING STAY NO.2 RH (See REPLACEMENT )
REMOVE GENERATOR BRACKET NO.2 (See REPLACEMENT )
REMOVE CRANKSHAFT PULLEY (See REPLACEMENT )
1. SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)
REMOVE TIMING BELT NO.1 COVER
REMOVE TIMING BELT NO.2 COVER (See REPLACEMENT )
REMOVE ENGINE MOUNTING BRACKET RH (See REPLACEMENT )
REMOVE TIMING BELT GUIDE NO.2
REMOVE TIMING BELT (See REPLACEMENT )
REMOVE TIMING BELT IDLER SUB-ASSY NO.2
REMOVE CAMSHAFT TIMING PULLEY (See REPLACEMENT )
1. SST 09960-10010 (09962-01000, 09963-01000), 09249-63010
REMOVE TIMING BELT NO.3 COVER (See REPLACEMENT )

REMOVE NO.3 CAMSHAFT SUB-ASSY

NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being removed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.

Align the timing marks (1 dot marks) of the camshaft drive and driven gears by turning the camshaft with a wrench.

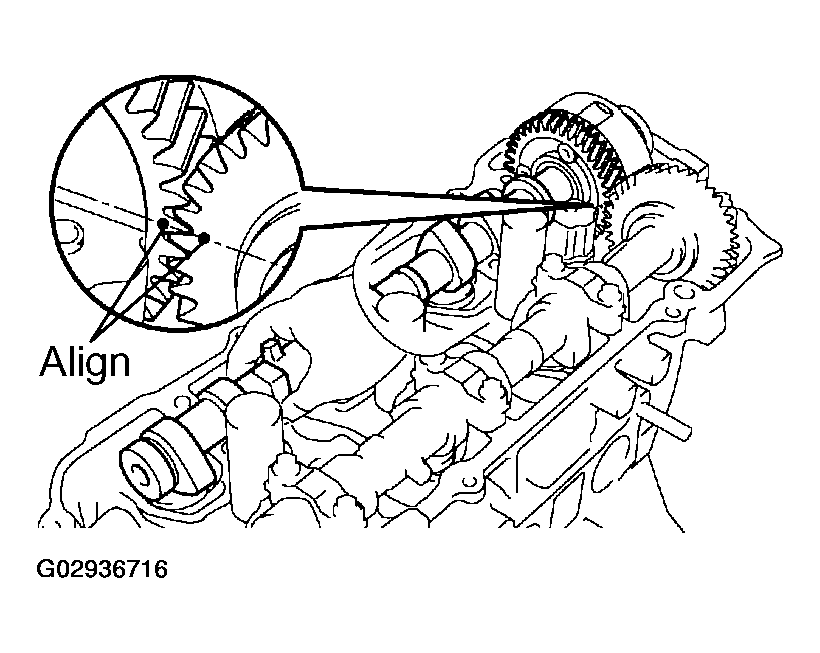

Fig 1: Aligning Timing Marks Of Camshaft Drive And Driven Gears
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Secure the exhaust camshaft sub gear to the main gear with a service bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

Recommended service bolt

SERVICE BOLT DIAMETER

Thread diameter	6 mm
Thread pitch	1.0 mm
Bolt length	16 to 20 mm

HINT:

When removing the camshaft, make certain that the torsional spring force of the sub gear has been eliminated by installation of the service bolt.

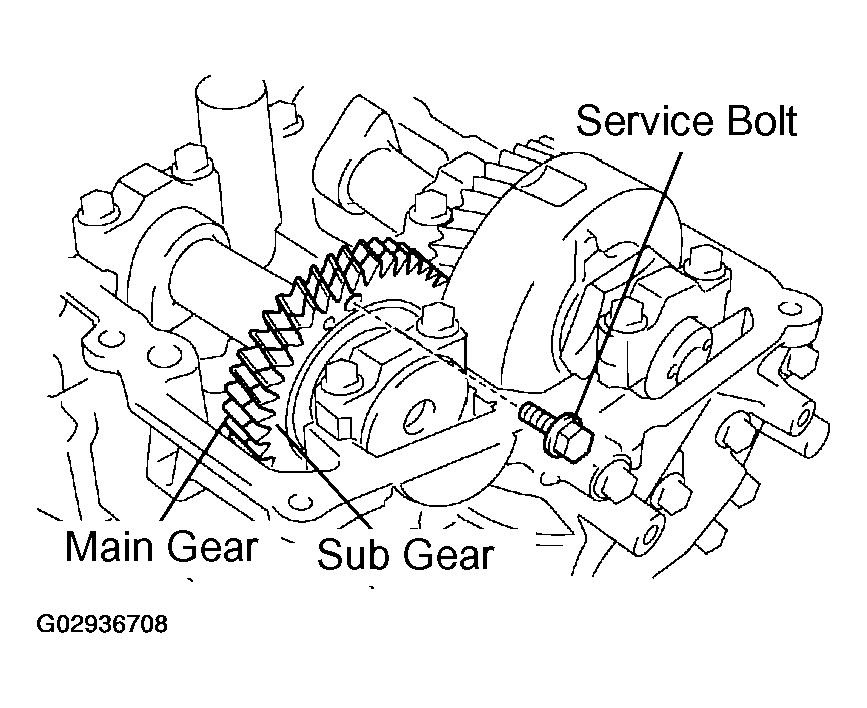

Fig 2: Securing Exhaust Camshaft Sub Gear To Main Gear With Service Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

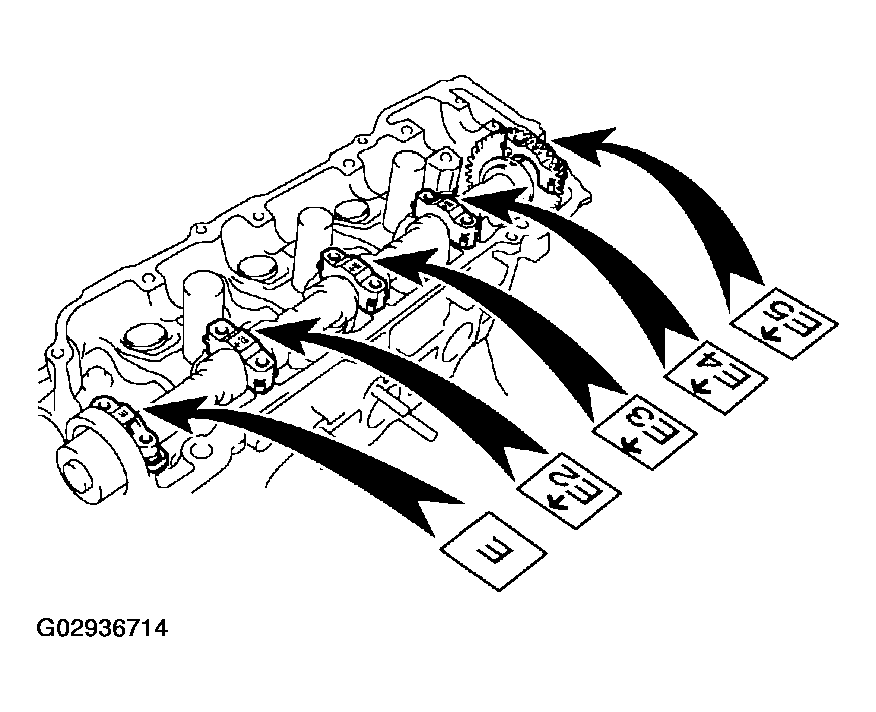

Using several steps, loosen and remove the 10 bearing cap bolts uniformly in the sequence shown in the illustration. Remove the 5 bearing caps and No. 3 camshaft.

NOTE:

Do not pry out the camshaft.
Be careful not to damage the contact surface of the cylinder head that receives the shaft thrust.

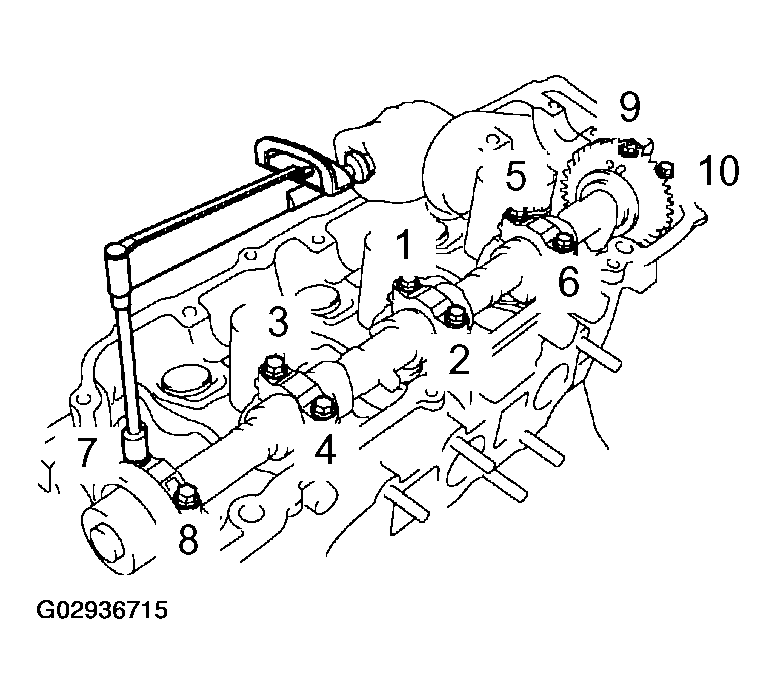

Fig 3: Removing Bearing Cap Bolts Uniformly In Sequence

REMOVE NO.4 CAMSHAFT SUB-ASSY
1. Using several steps, loosen and remove the 10 bearing cap bolts uniformly in the sequence shown in the illustration. Remove the 5 bearing caps and No. 4 camshaft.
  NOTE:
  - Do not pry out the camshaft.
  - Be careful not to damage the contact surface of the cylinder head that receives the shaft thrust.
2. Remove the oil seal from the No. 4 camshaft.

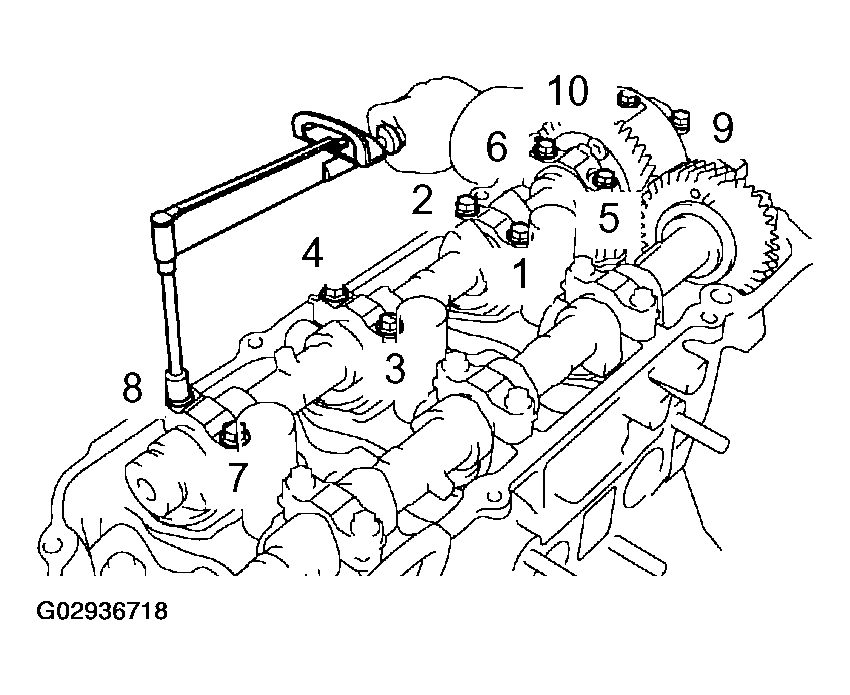

  Fig 4: Removing Bearing Cap Bolts Uniformly In Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING GEAR ASSY (See REPLACEMENT )
REMOVE CAMSHAFT SUB GEAR NO.3 (See REPLACEMENT )
1. SST 09960-10010 (09962-01000, 09963-00500)
INSTALL CAMSHAFT SUB GEAR NO.3 (See REPLACEMENT )
1. SST 09960-10010 (09962-01000, 09963-00500)
INSTALL CAMSHAFT TIMING GEAR ASSY (See REPLACEMENT )
INSTALL NO.4 CAMSHAFT SUB-ASSY
NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being installed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.
1. Apply new engine oil to the thrust portion and journal of the camshaft.
2. Place the No. 4 camshaft at a 90° angle of the timing mark (1 dot marks) on the cylinder head.
3. Apply multi-purpose grease to a new oil seal lip.

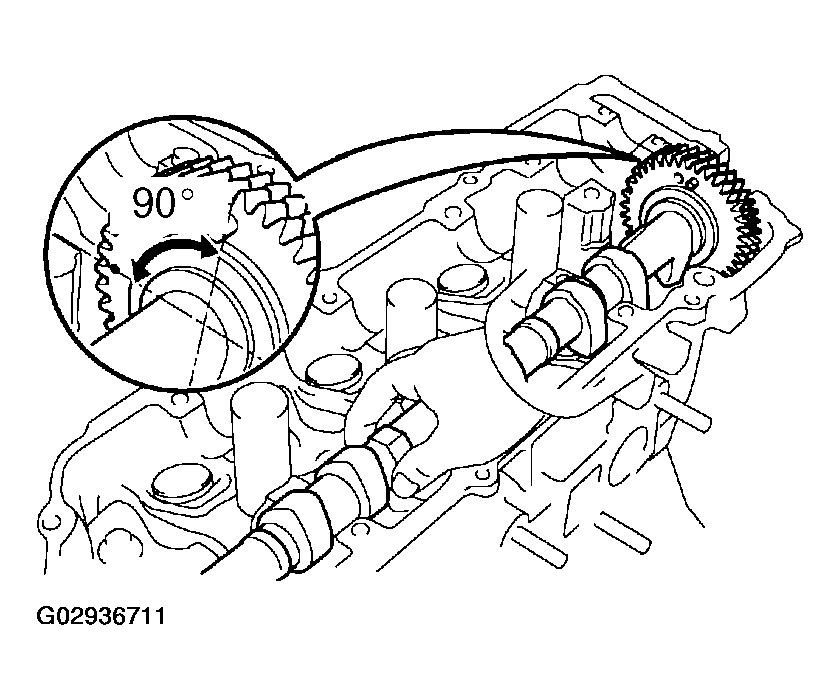

  Fig 5: Placing No 4 Camshaft At 90° Of Timing Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the oil seal to the camshaft.
  NOTE:
  - Do not turn over the oil seal lip.
  - Insert the oil seal until it stops.
5. Remove any old packing material from the contact surface.

  Fig 6: Installing Oil Seal To Camshaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Apply seal packing to the bearing cap No. 1 as shown in the illustration.
  Seal packing: Part No. 08826-00080 or equivalent
  NOTE:
  - Install the bearing cap No. 1 within 5 minutes after applying seal packing.
  - Do not expose the seal packing to engine oil within 2 hours after installing.
  Fig 7: Applying Seal Packing To Bearing Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the 5 bearing caps in their proper locations.
8. Apply a light coat of engine oil to the threads of the bearing cap bolts.

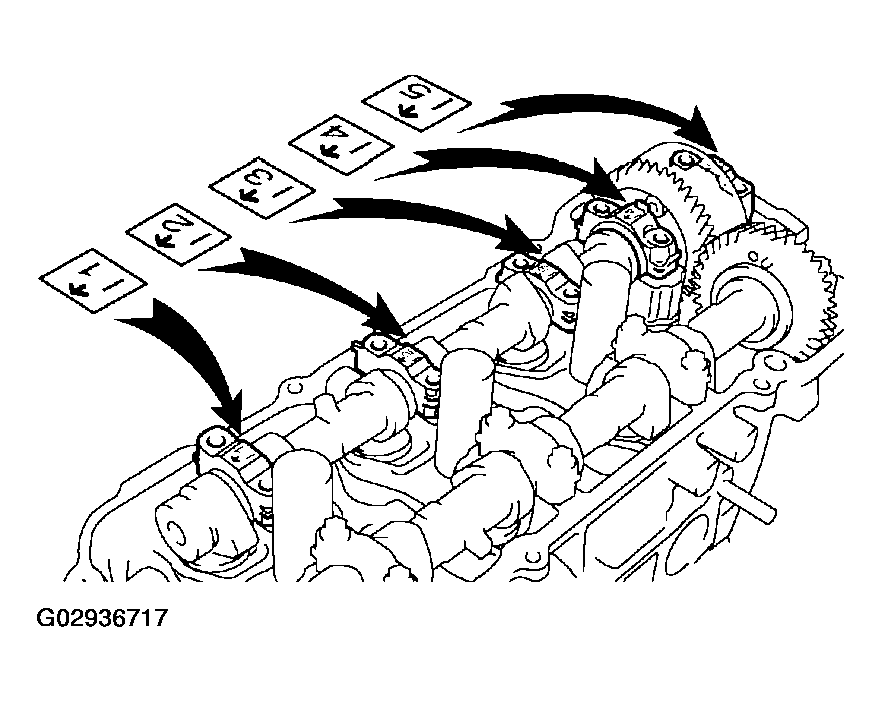

  Fig 8: Installing Bearing Cap In Proper Locations
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using several steps, install and tighten the 10 bearing cap bolts uniformly in the sequence shown in the illustration.
  1. Torque: 16 N.m (163 kgf.cm, 12 ft.lbf)

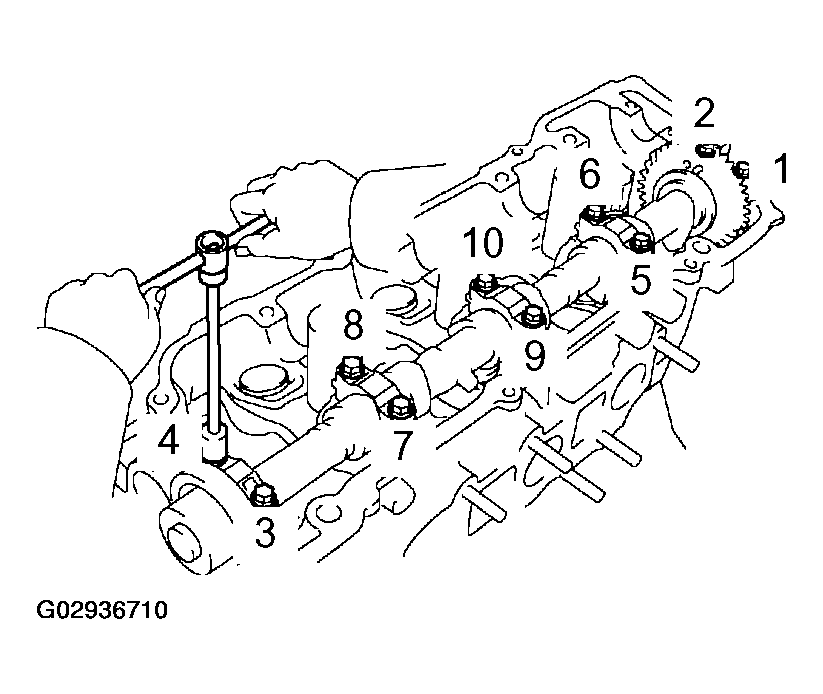

  Fig 9: Installing And Tightening Bearing Cap Bolt In Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO.3 CAMSHAFT SUB-ASSY
NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while being installed. If the camshaft is not kept level, the cylinder head or camshaft may be damaged. To avoid this, the following steps must be carried out.
1. Apply new engine oil to the thrust portion and journal of the camshaft.
2. Align the timing marks (1 dot marks) of the camshaft drive and driven gears.
3. Place the camshaft to the cylinder head.

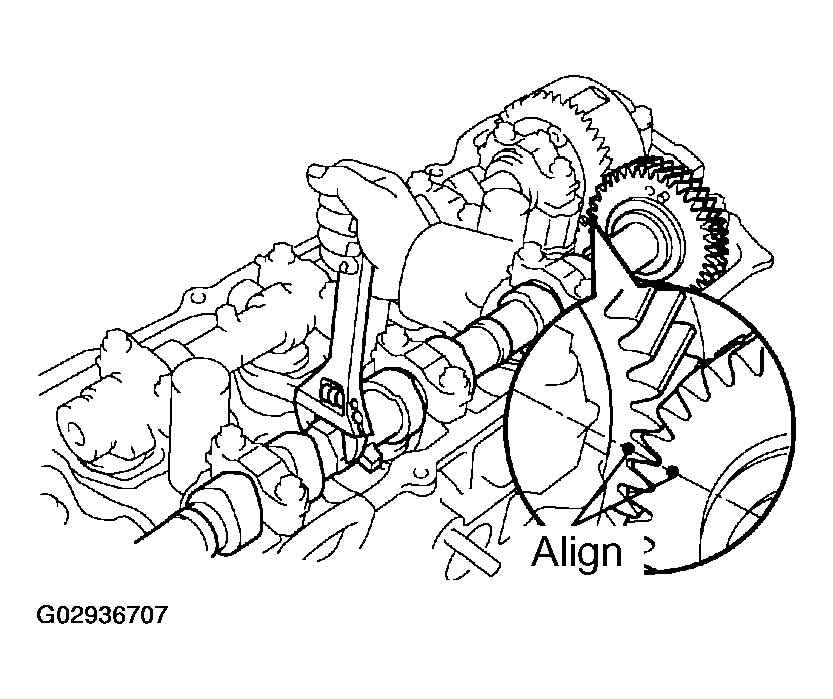

  Fig 10: Aligning Timing Mark Of Camshaft Drive And Driven Gears
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 5 bearing caps in their proper locations.
5. Apply a light coat of engine oil to the threads of the bearing cap bolts.

  Fig 11: Installing 5 Bearing Caps In Proper Locations
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using several steps, install and tighten the 10 bearing cap bolts uniformly in the sequence shown in the illustration.
  1. Torque: 16 N.m (163 kgf.cm, 12 ft.lbf)
7. Remove the service bolt.

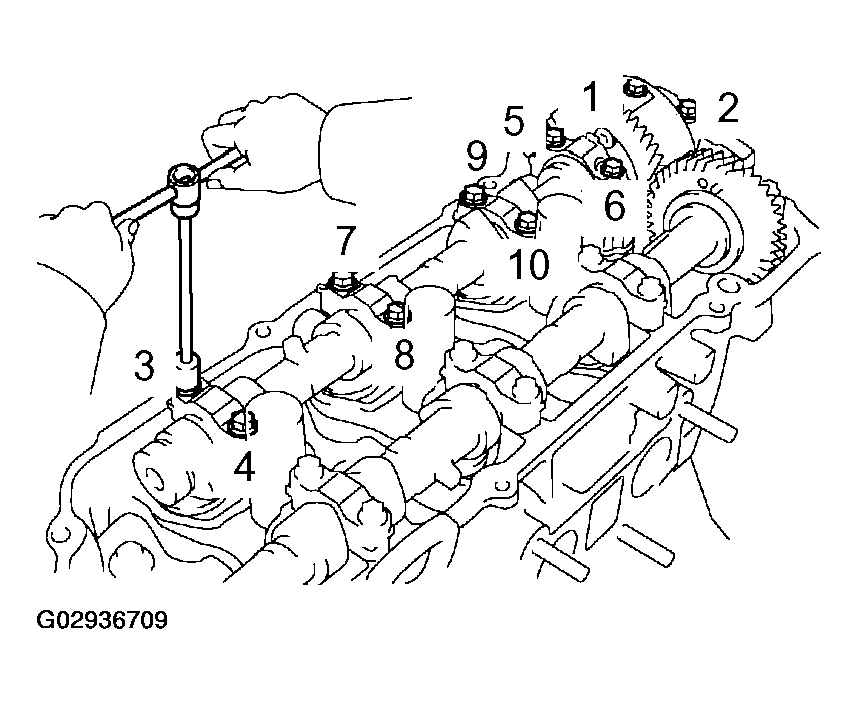

Fig 12: Tightening 10 Bearing Cap Bolts Uniformly In Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT NO.3 COVER (See REPLACEMENT )
INSTALL CAMSHAFT TIMING PULLEY (See REPLACEMENT )
1. SST 09960-10010 (09962-01000, 09963-01000), 09249-63010
INSTALL TIMING BELT IDLER SUB-ASSY NO.2 (See REPLACEMENT )
INSPECT TIMING BELT (See REPLACEMENT )
INSTALL TIMING BELT (See REPLACEMENT )
1. SST 09960-10010 (09962-01000, 09963-01000)
INSTALL TIMING BELT TENSIONER ASSY (See REPLACEMENT )
INSTALL TIMING BELT GUIDE NO.2 (See REPLACEMENT )
INSTALL ENGINE MOUNTING BRACKET RH (See REPLACEMENT )
INSTALL TIMING BELT NO.2 COVER (See REPLACEMENT )
INSTALL TIMING BELT NO.1 COVER (See REPLACEMENT )
INSTALL CRANKSHAFT PULLEY (See REPLACEMENT )
1. SST 09213-54015 (91651-60855), 09330-00021
INSTALL GENERATOR BRACKET NO.2 (See REPLACEMENT )
INSTALL ENGINE MOUNTING STAY NO.2 RH (See REPLACEMENT )
INSTALL ENGINE MOVING CONTROL ROD (See REPLACEMENT )
INSPECT VALVE CLEARANCE (See VALVE CLEARANCE (3MZ-FE) )
ADJUST VALVE CLEARANCE (See VALVE CLEARANCE (3MZ-FE) )
1. SST 09248-55040 (09248-05410, 09248-05420)
INSTALL VANE PUMP V BELT (See DRIVE BELT (3MZ-FE) )
INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See DRIVE BELT (3MZ-FE) )
INSPECT DRIVE BELT DEFLECTION AND TENSION (See ENGINE (3MZ-FE) )
INSTALL CYLINDER HEAD COVER SUB-ASSY LH (See VALVE CLEARANCE (3MZ-FE) )
INSTALL IGNITION COIL ASSY (See VALVE CLEARANCE (3MZ-FE) )
INSTALL V-BANK COVER SUB-ASSY (See REPLACEMENT )
INSTALL FRONT WHEEL RH (See DRIVE BELT (3MZ-FE) )
ADD ENGINE COOLANT (See REPLACEMENT )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
SYSTEM INITIALIZATION (See CHARGING SYSTEM (3MZ-FE) )
