Terminals Of Ecu

RADIO RECEIVER ASSY

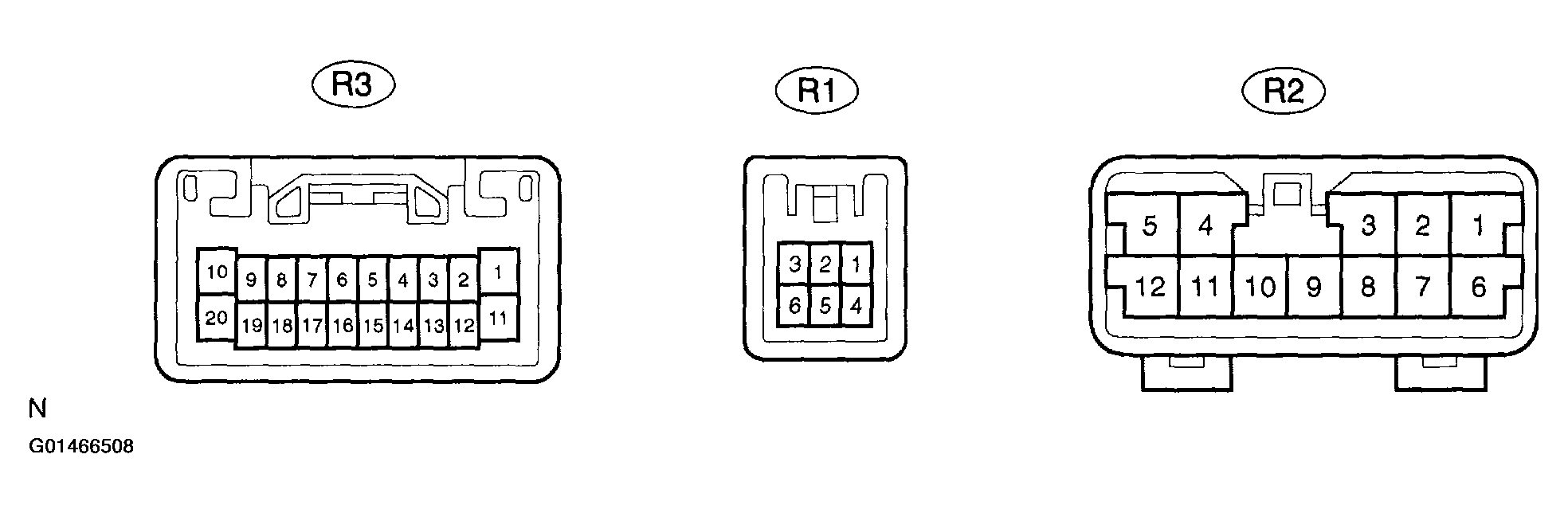

Fig 1: Identifying Connector Terminals Of Radio Receiver ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

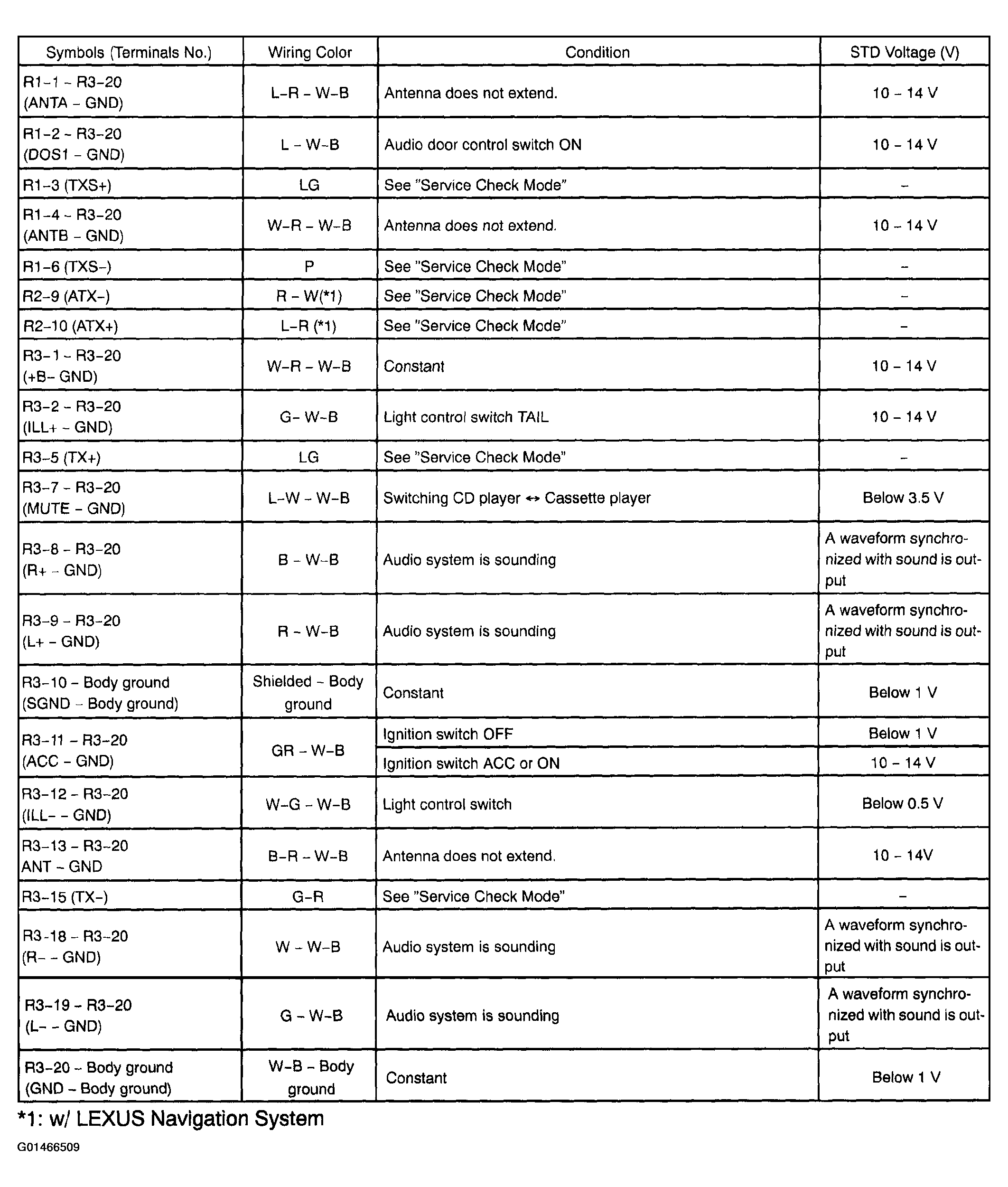

Fig 2: Radio Receiver ECU Terminal Pin-Out Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

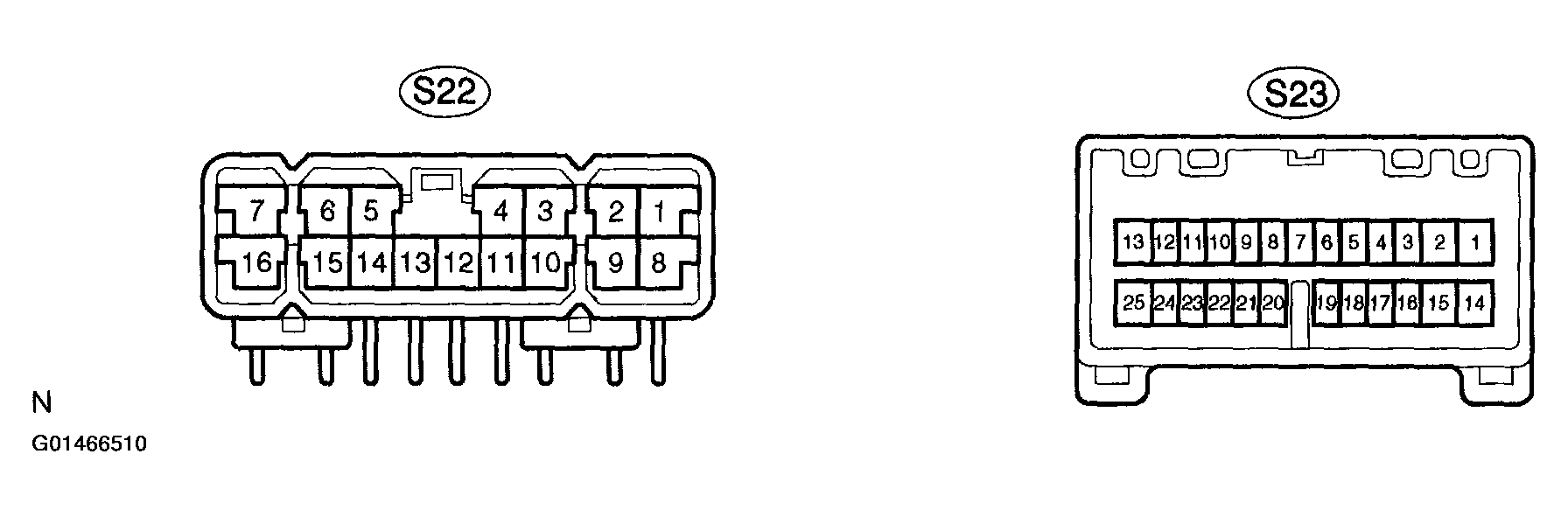

Fig 3: Identifying Stereo Component Amplifier Connector S22 & S23 Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

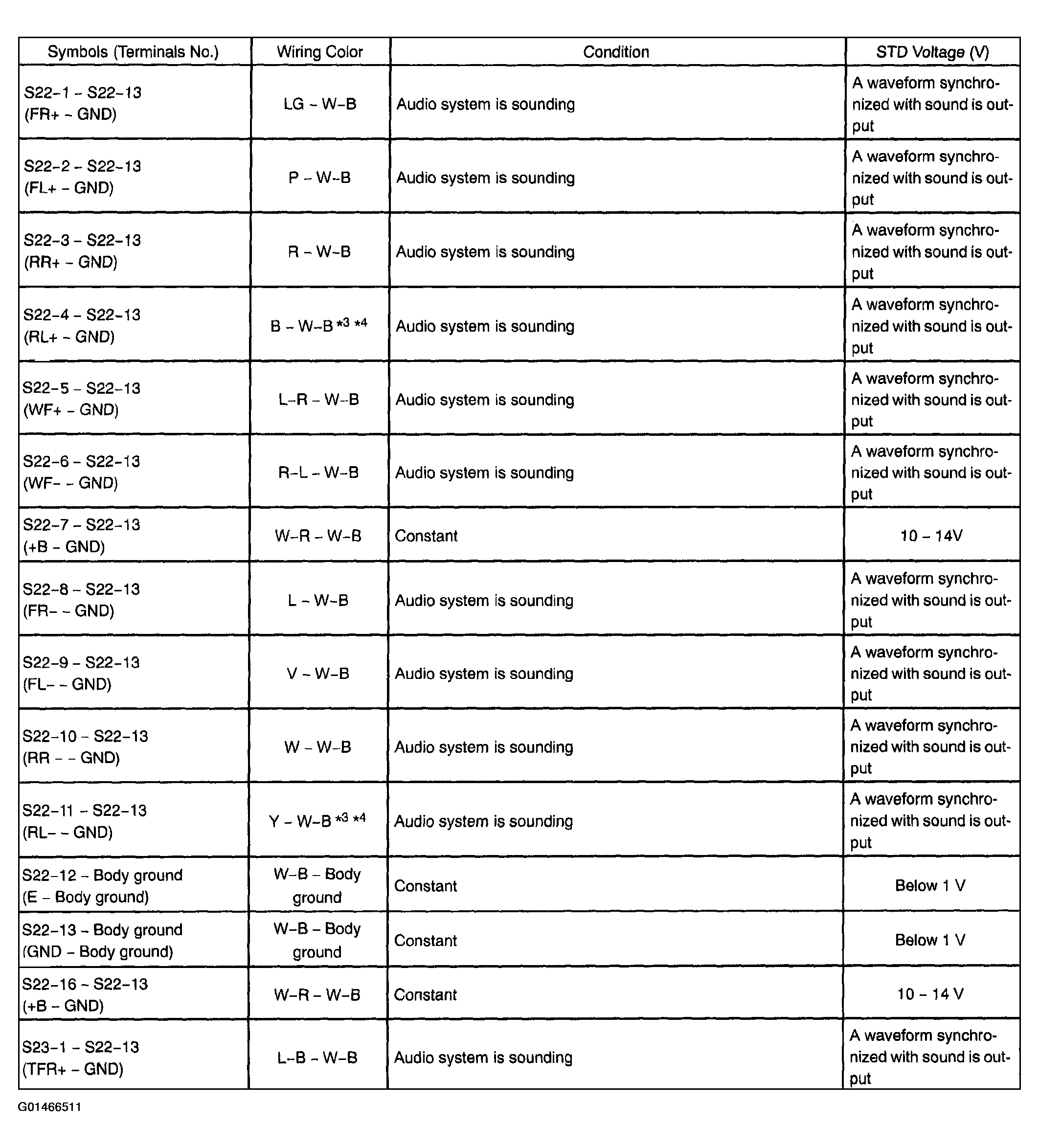

Fig 4: Stereo Component Amplifier Terminal Pin-Out Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

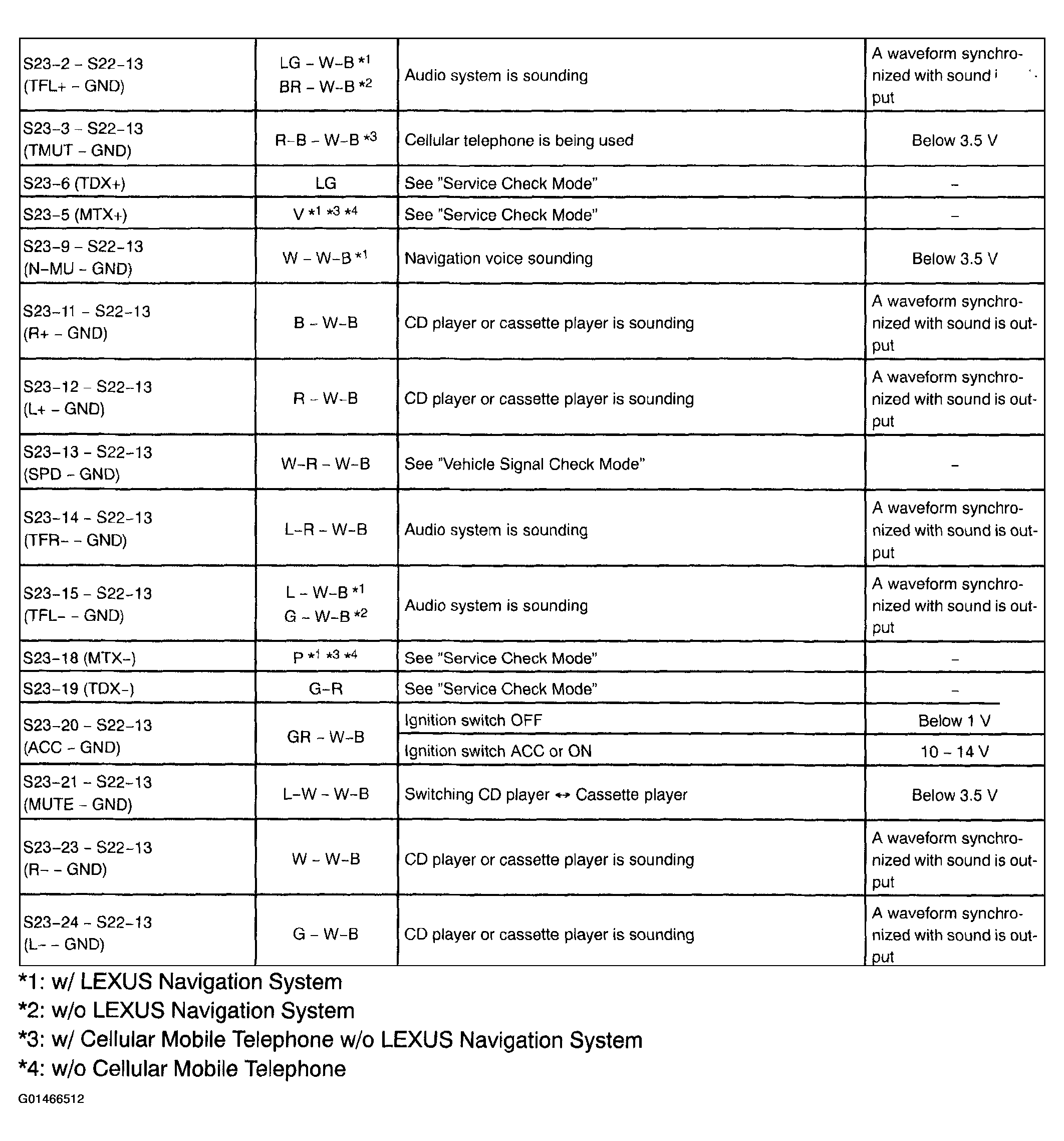

Fig 5: Stereo Component Amplifier Terminal Pin-Out Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AUDIO DOOR CONTROL SWITCH

Fig 6: Identifying Audio Door Control Switch Connector A25 Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

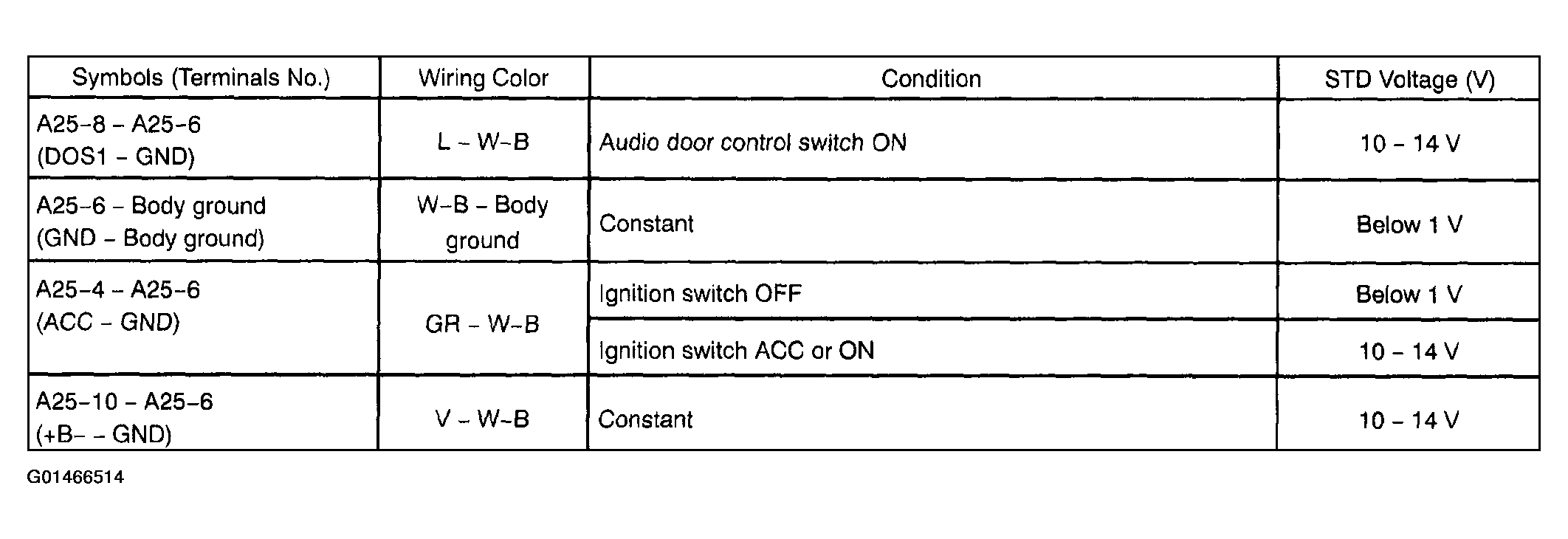

Fig 7: Audio Door Control Switch Connector A25 Terminal Pin-Out Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEERING PAD SWITCH MODULATOR

Fig 8: Identifying Steering Pad Switch Modulator Connector Terminals

G01466515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

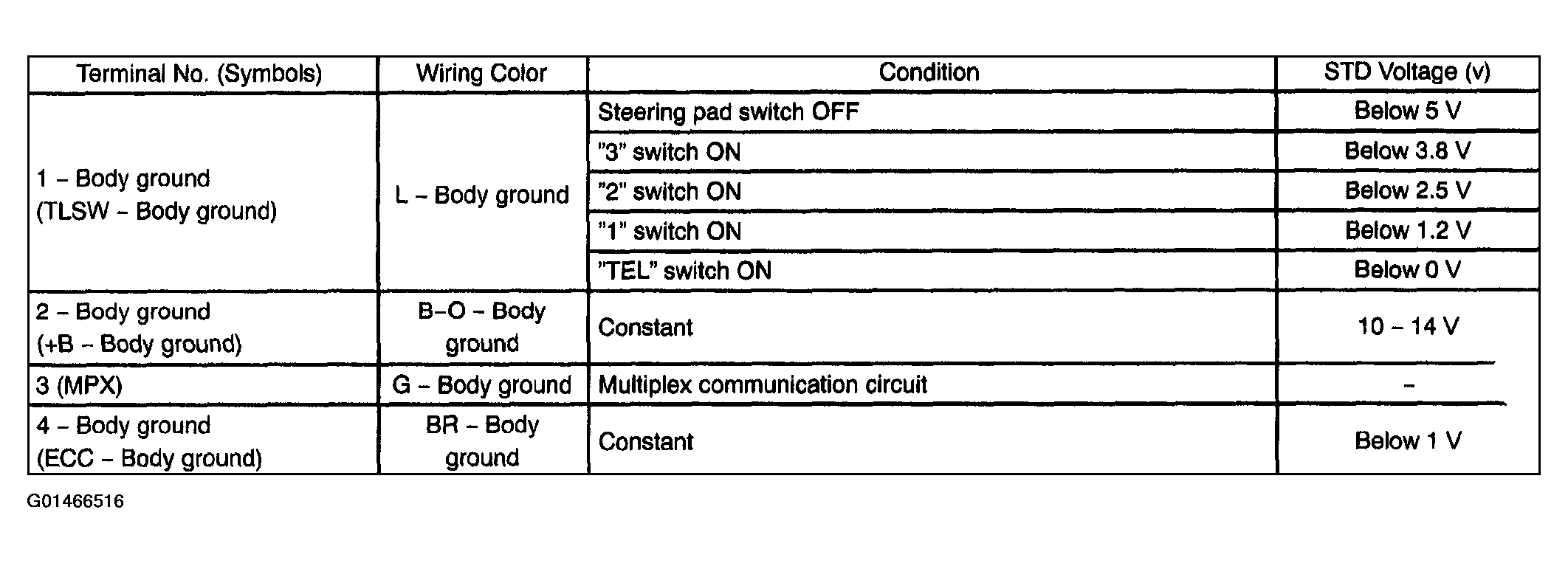

Fig 9: Steering Pad Switch Modulator Terminal Pin-Out Chart
