Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash: Wiring Diagram

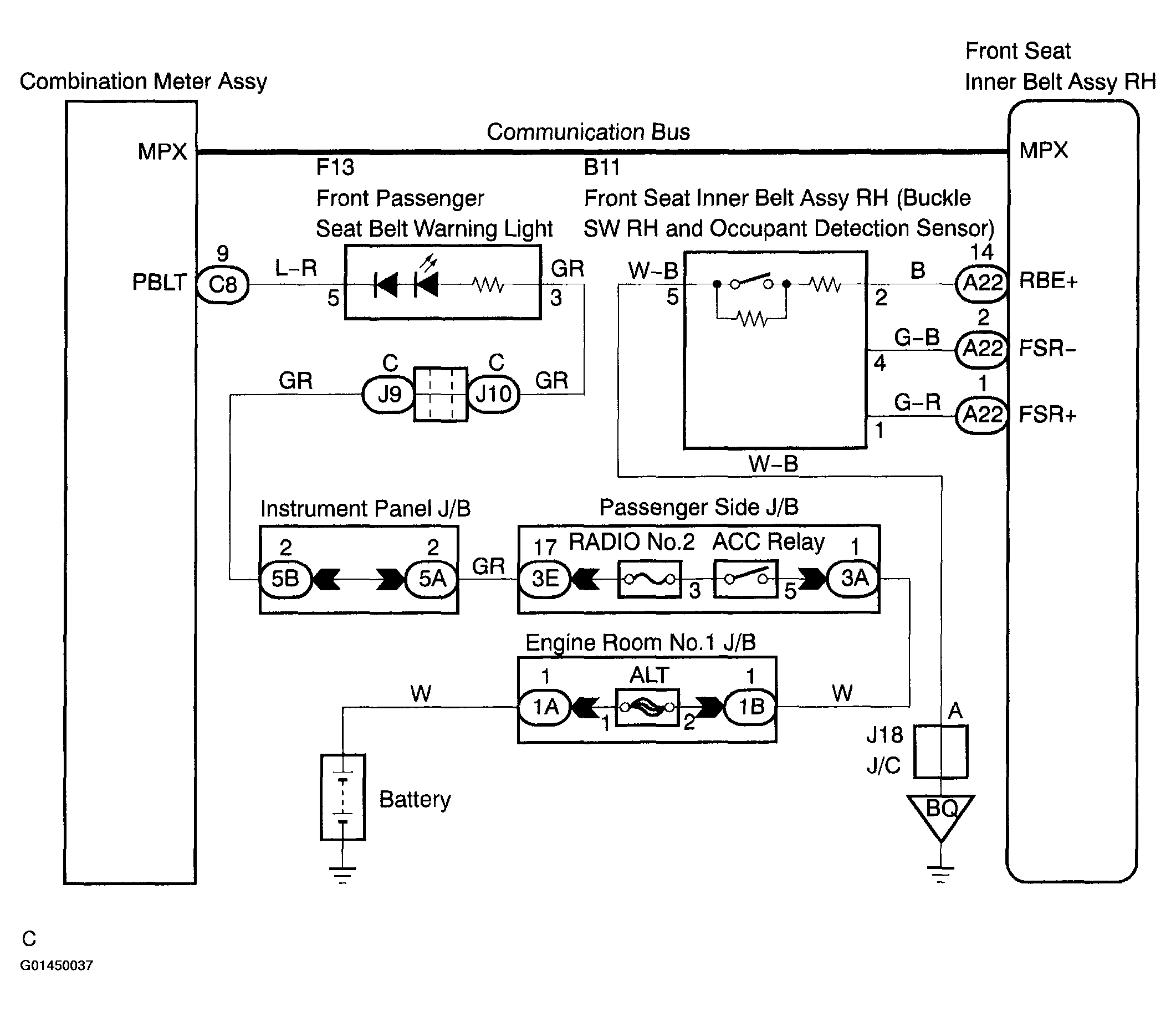

Fig 1: Front Passenger Seat Belt Circuit Diagram

G01450037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
