Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

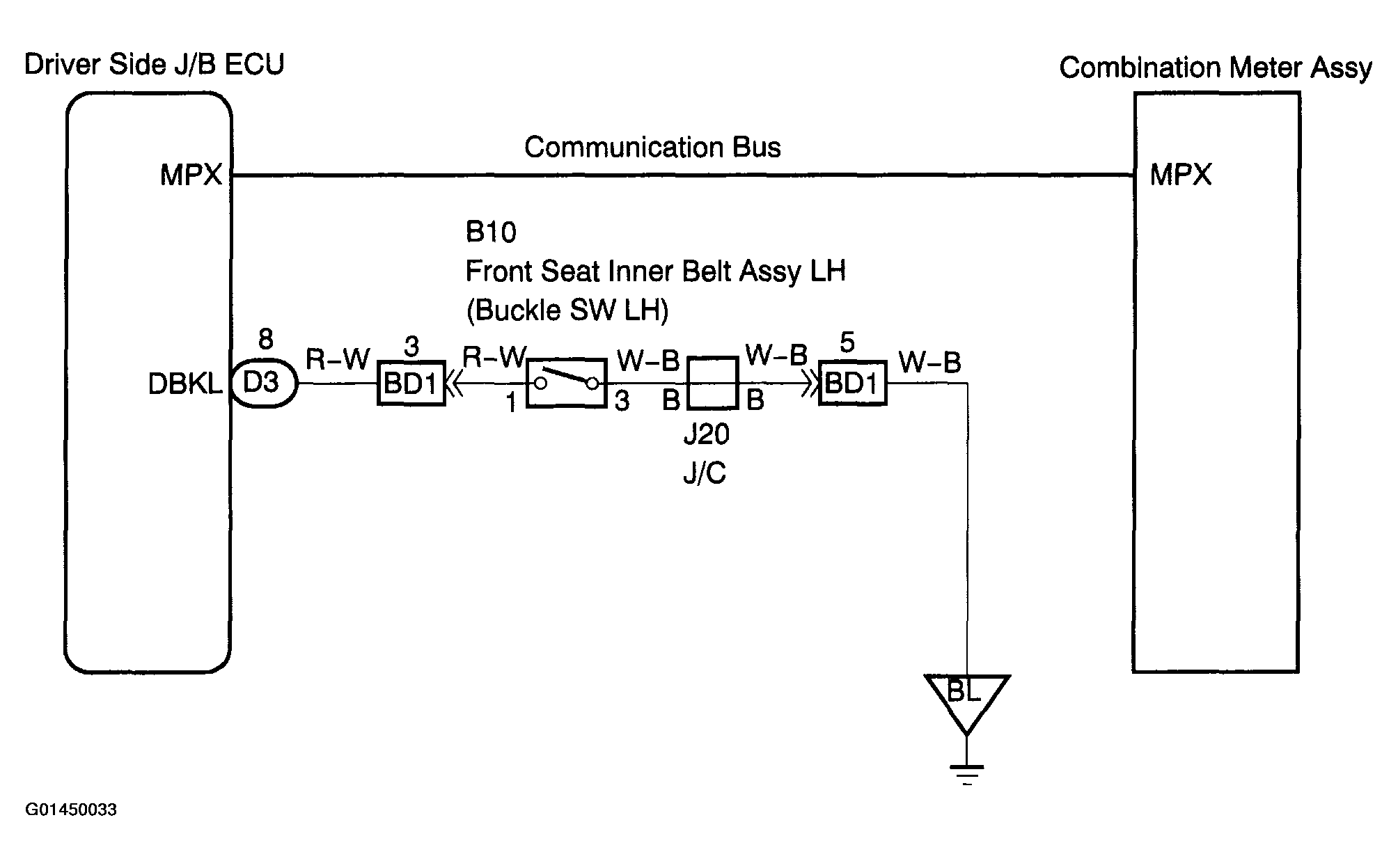

Fig 1: Driver's Seat Belt Buckle Switch Circuit Diagram

G01450033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
