Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

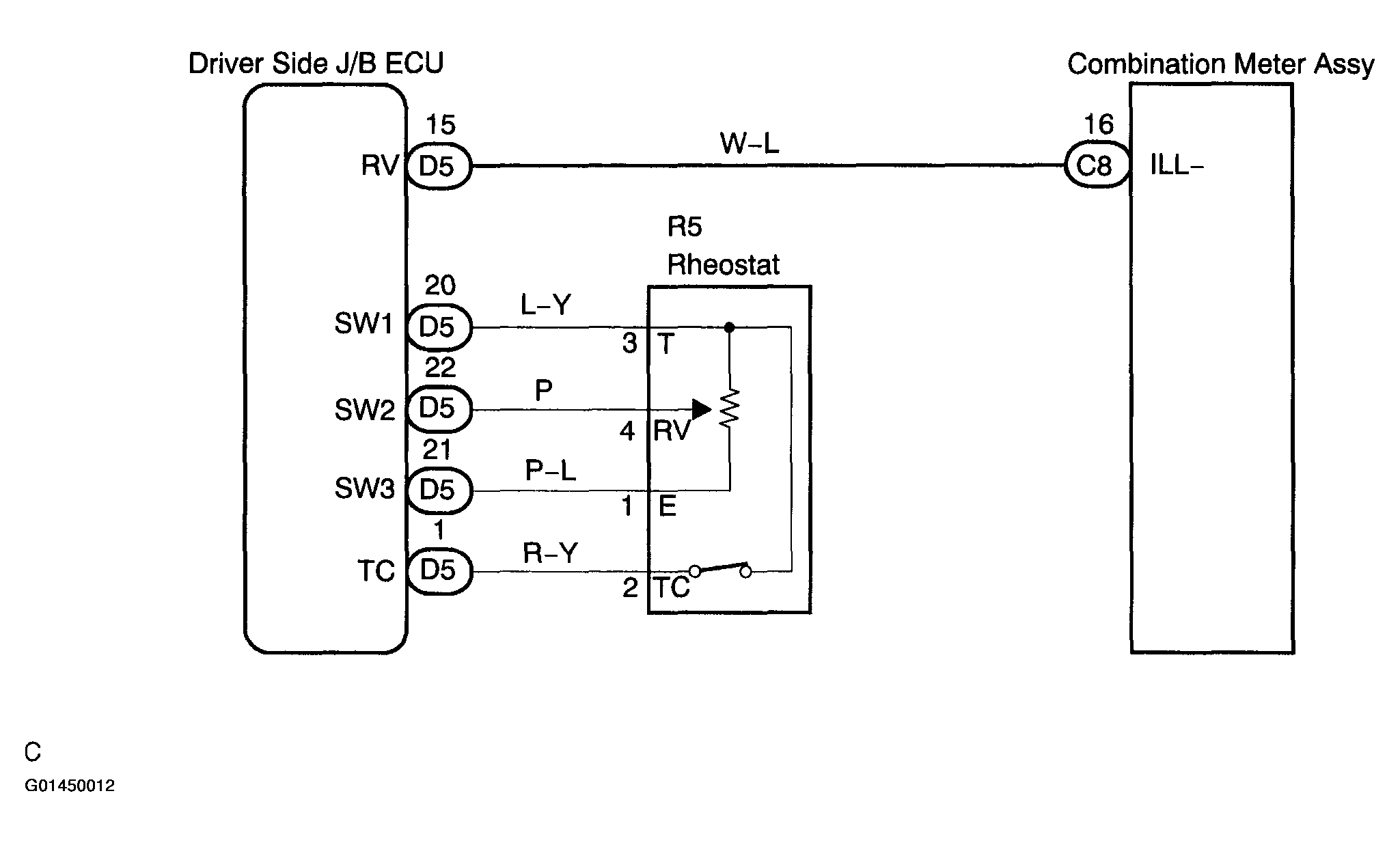

Fig 1: Operating Light Control Rheostat Circuit Diagram

G01450012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
