Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

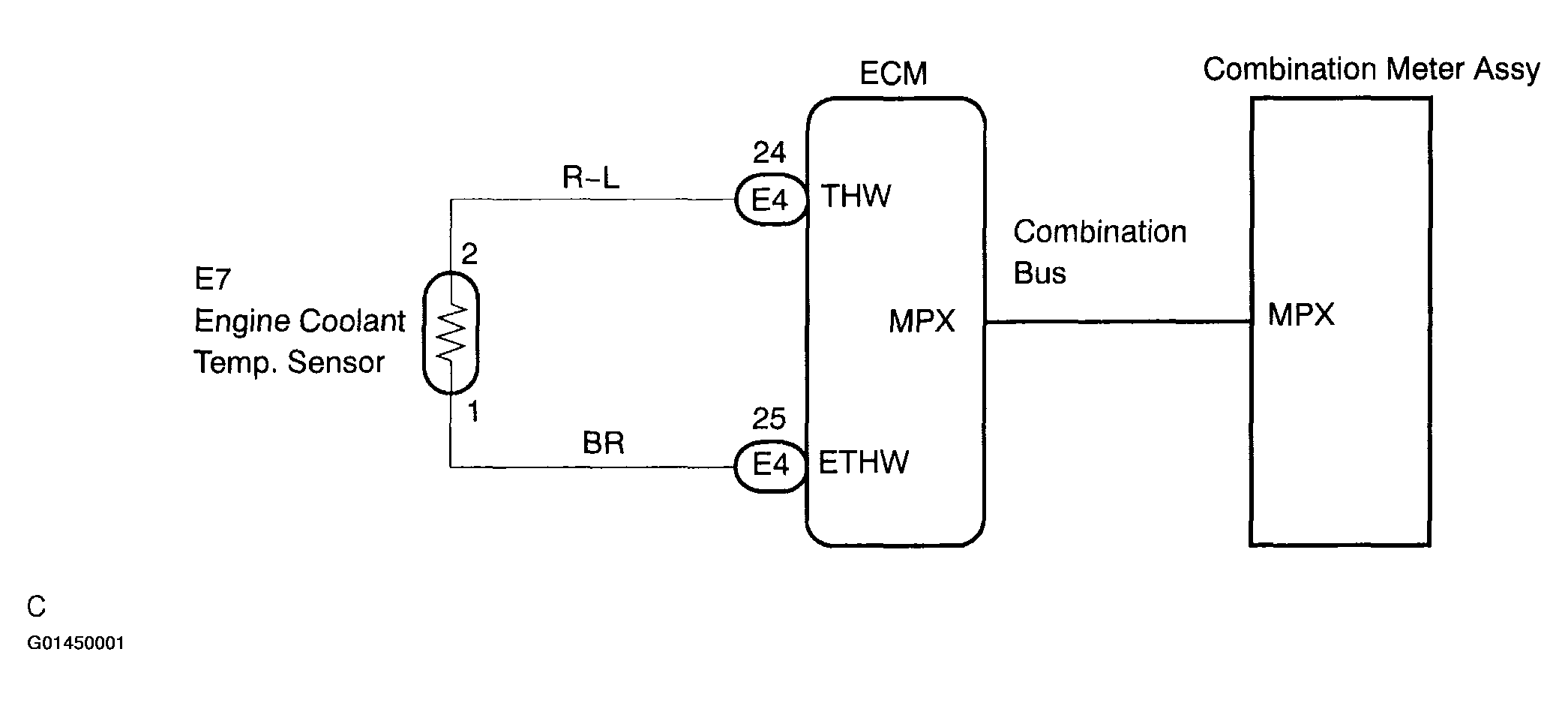

Fig 1: Engine Coolant Temp. Sensor Circuit Diagram
G01450001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
