Malfunction In Tachometer: Wiring Diagram

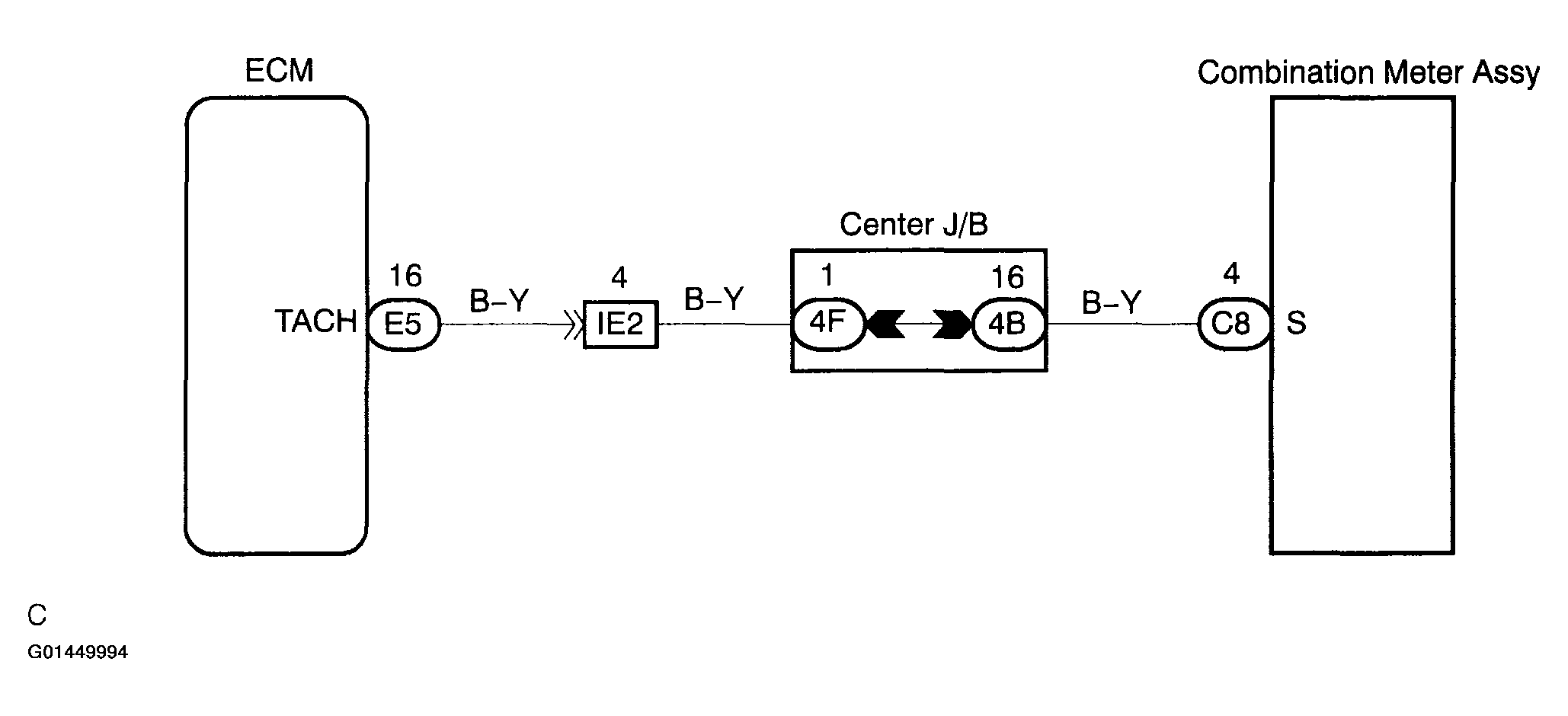

Fig 1: Tachometer Circuit Diagram

G01449994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
