Malfunction In ODO/Trip Meter: Wiring Diagram

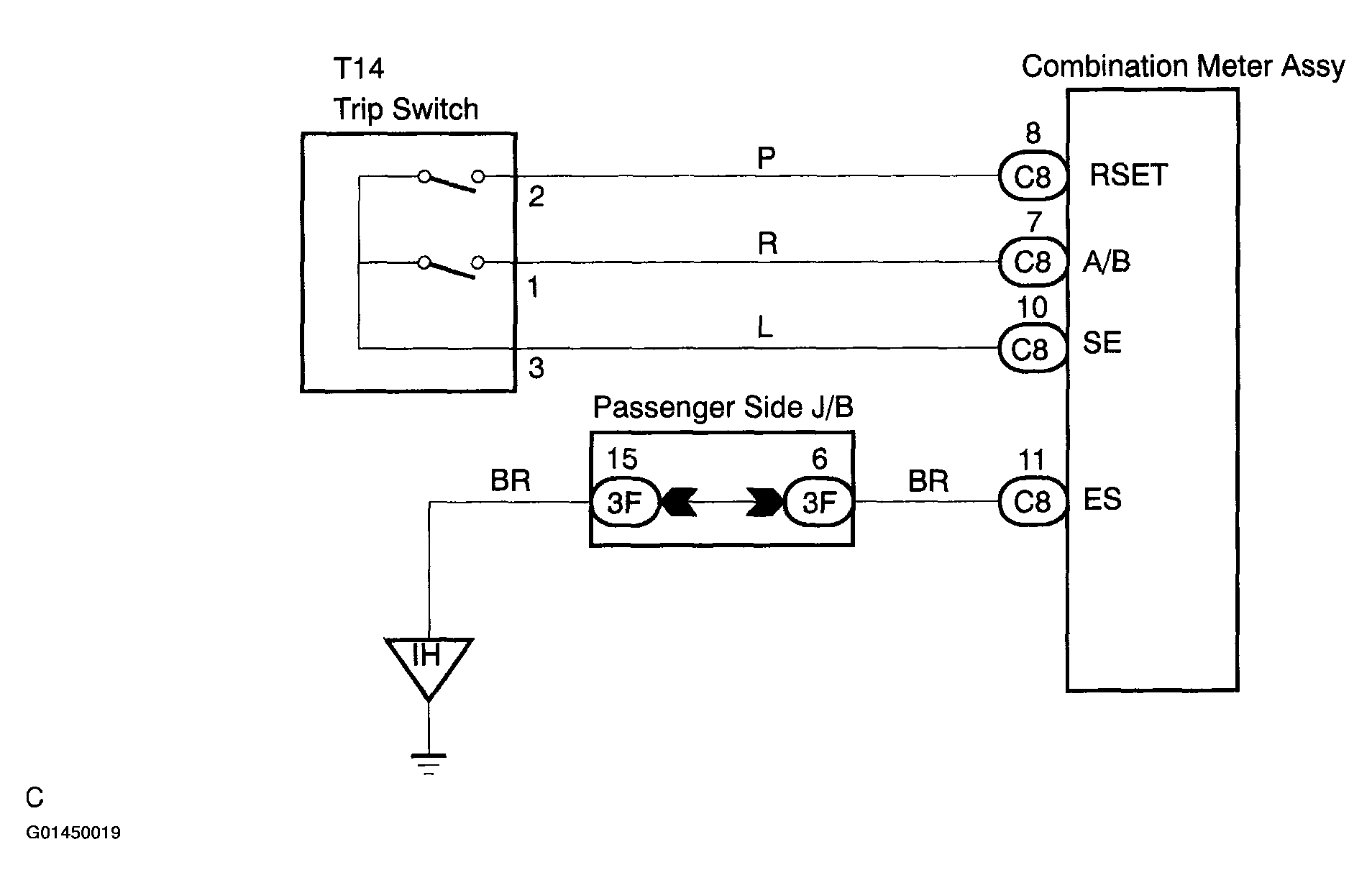

Fig 1: Trip Swich Circuit Diagram

G01450019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
