Malfunction In Fuel Receiver Gauge: Wiring Diagram

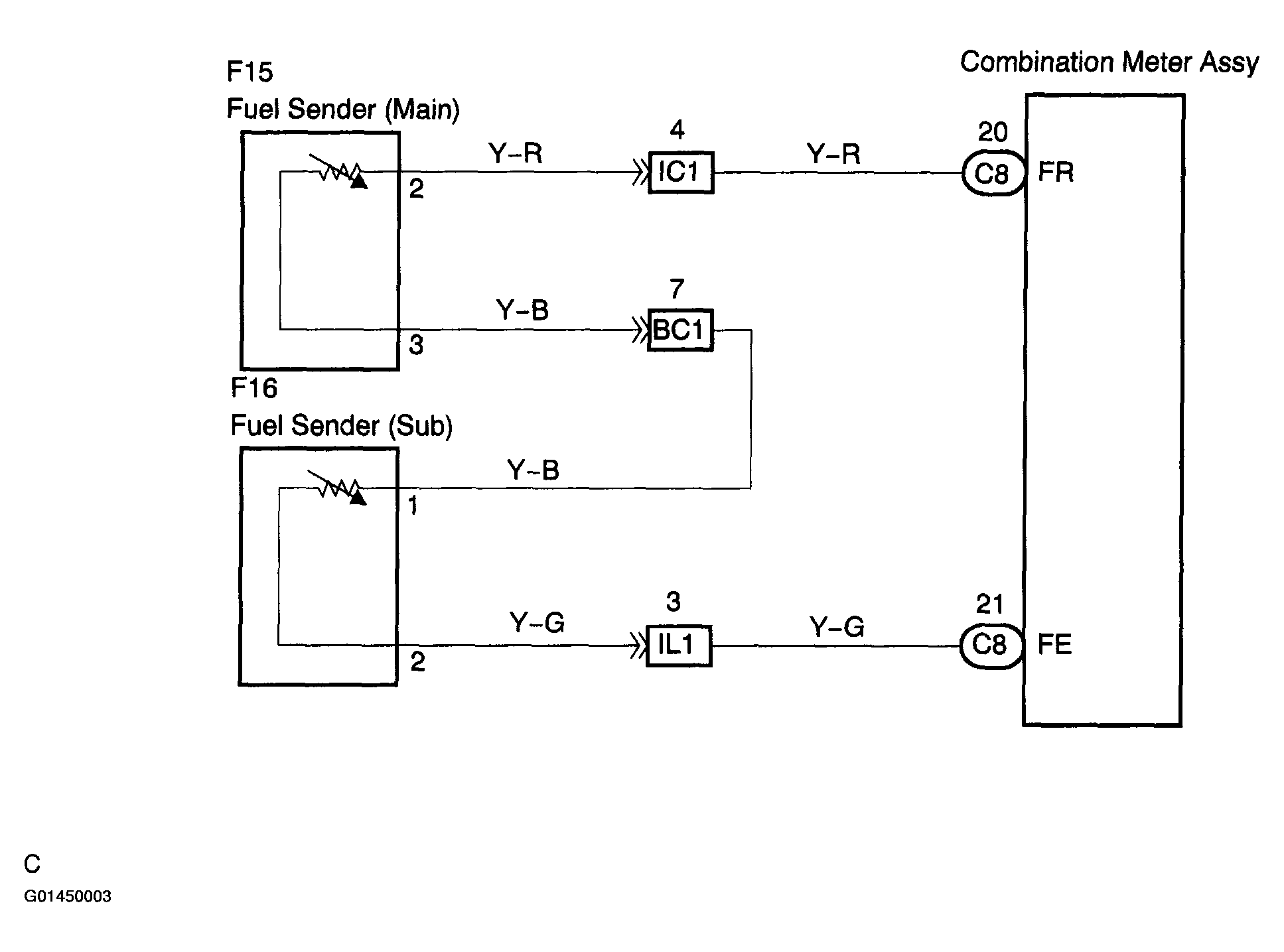

Fig 1: Fuel Sender Circuit Diagram

G01450003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
