Combination Meter - Diagnosis (From July, 2002): Location

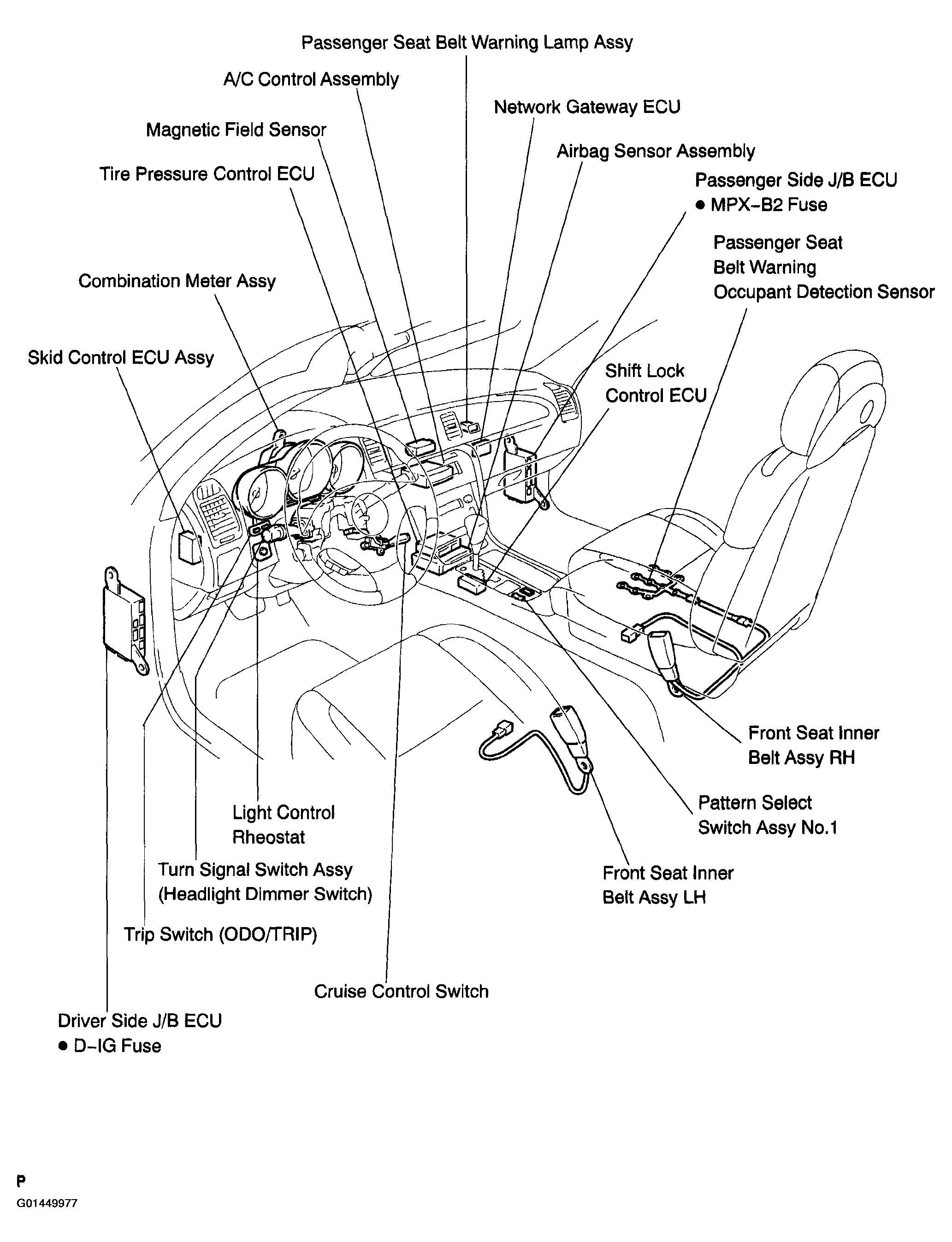

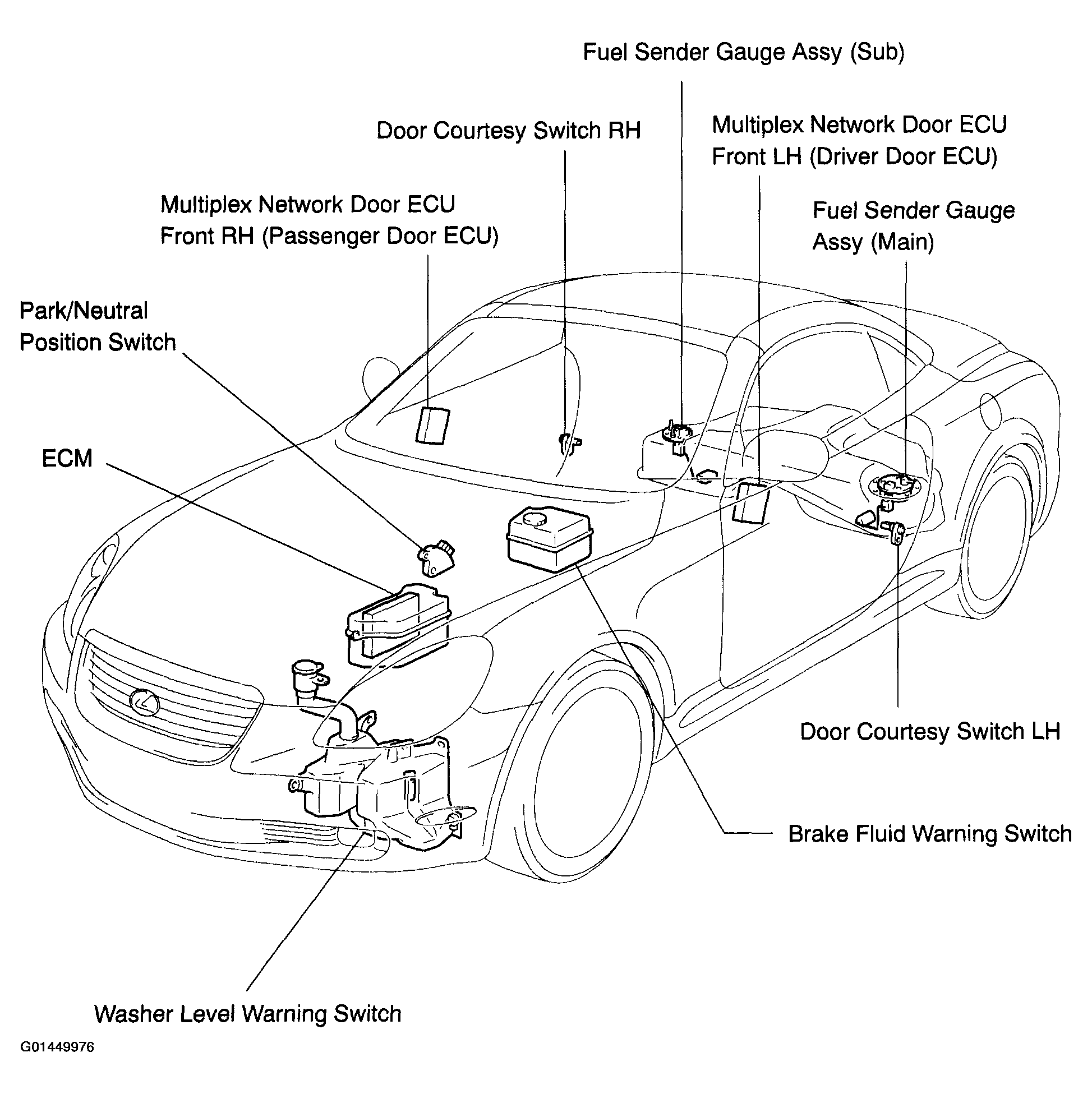

Fig 1: Identifying Component Location Of Combination Meter Input Devices (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Component Location Of Combination Meter Input Devices (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

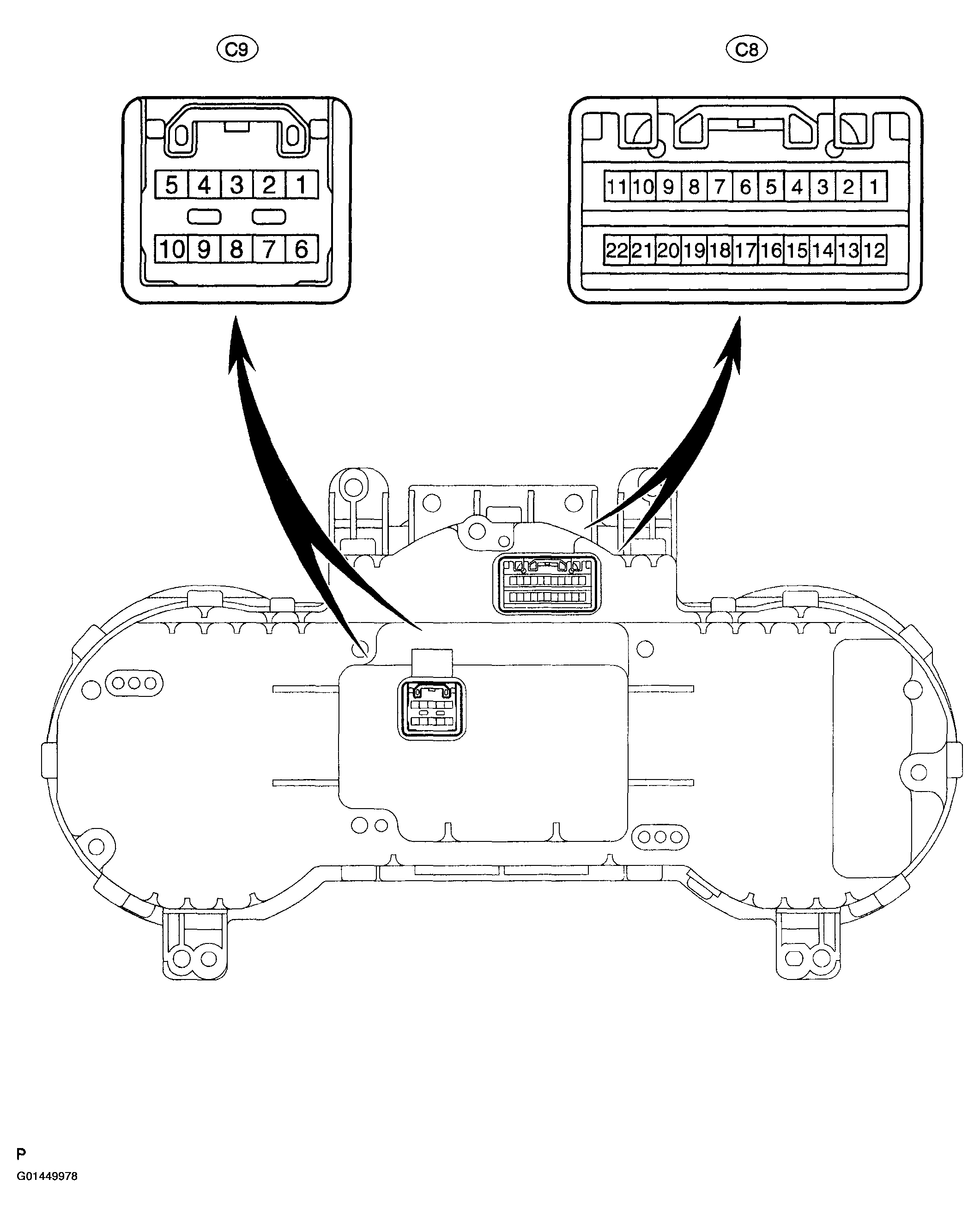

Fig 3: Identifying Connector Terminals Of Combination Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

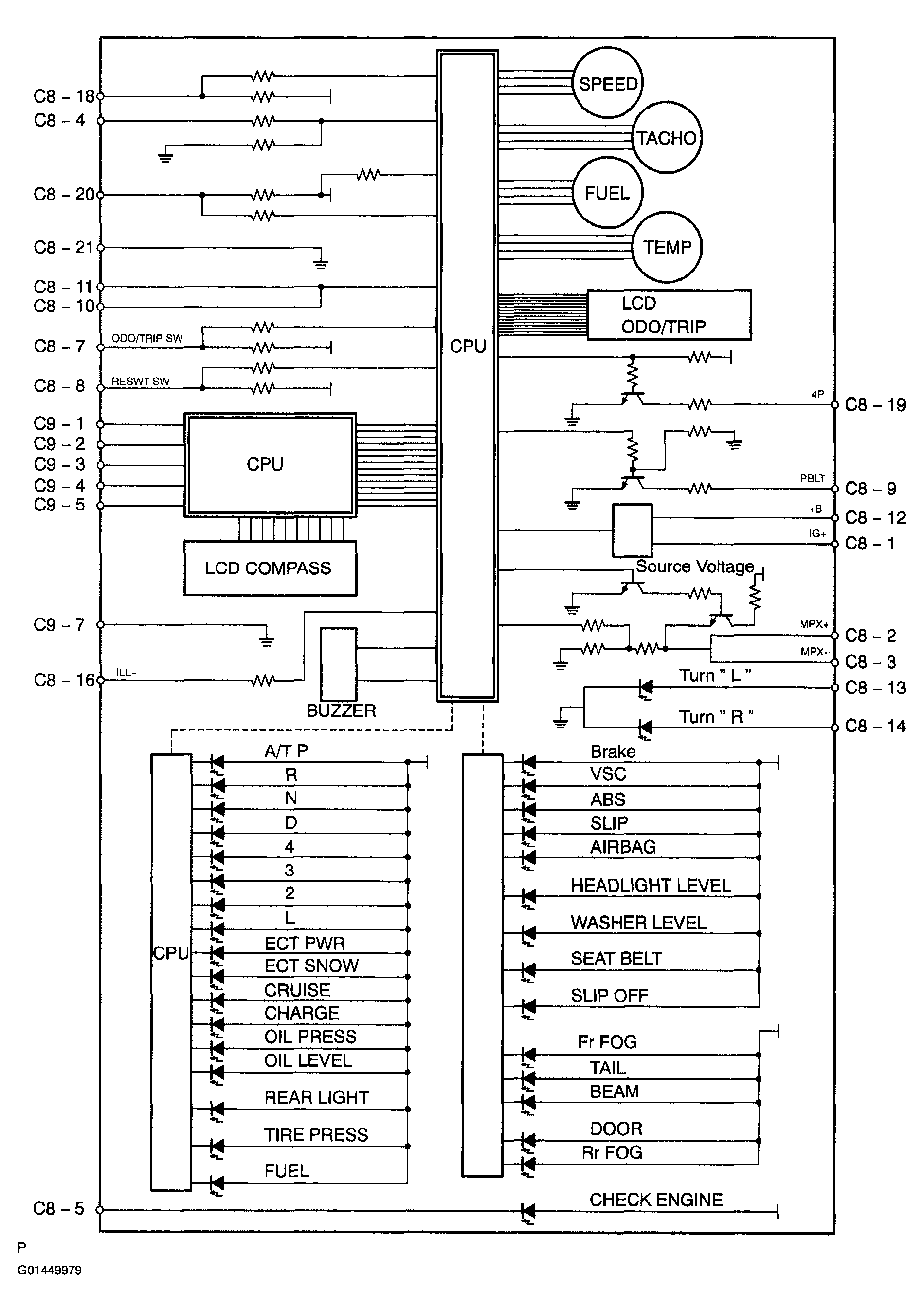

Fig 4: Block Diagram Of Combination Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

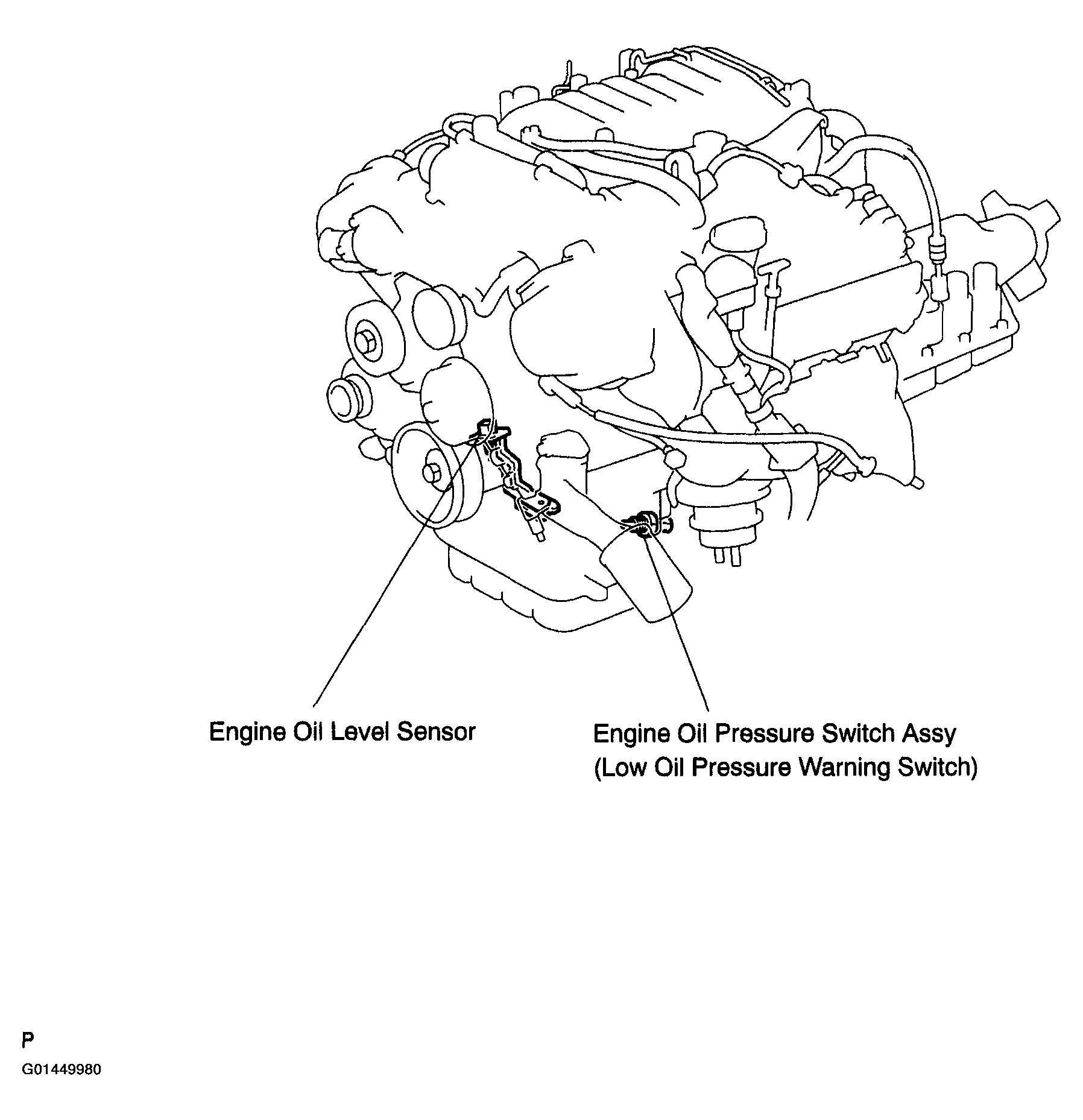

Fig 5: Locating Engine Oil Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

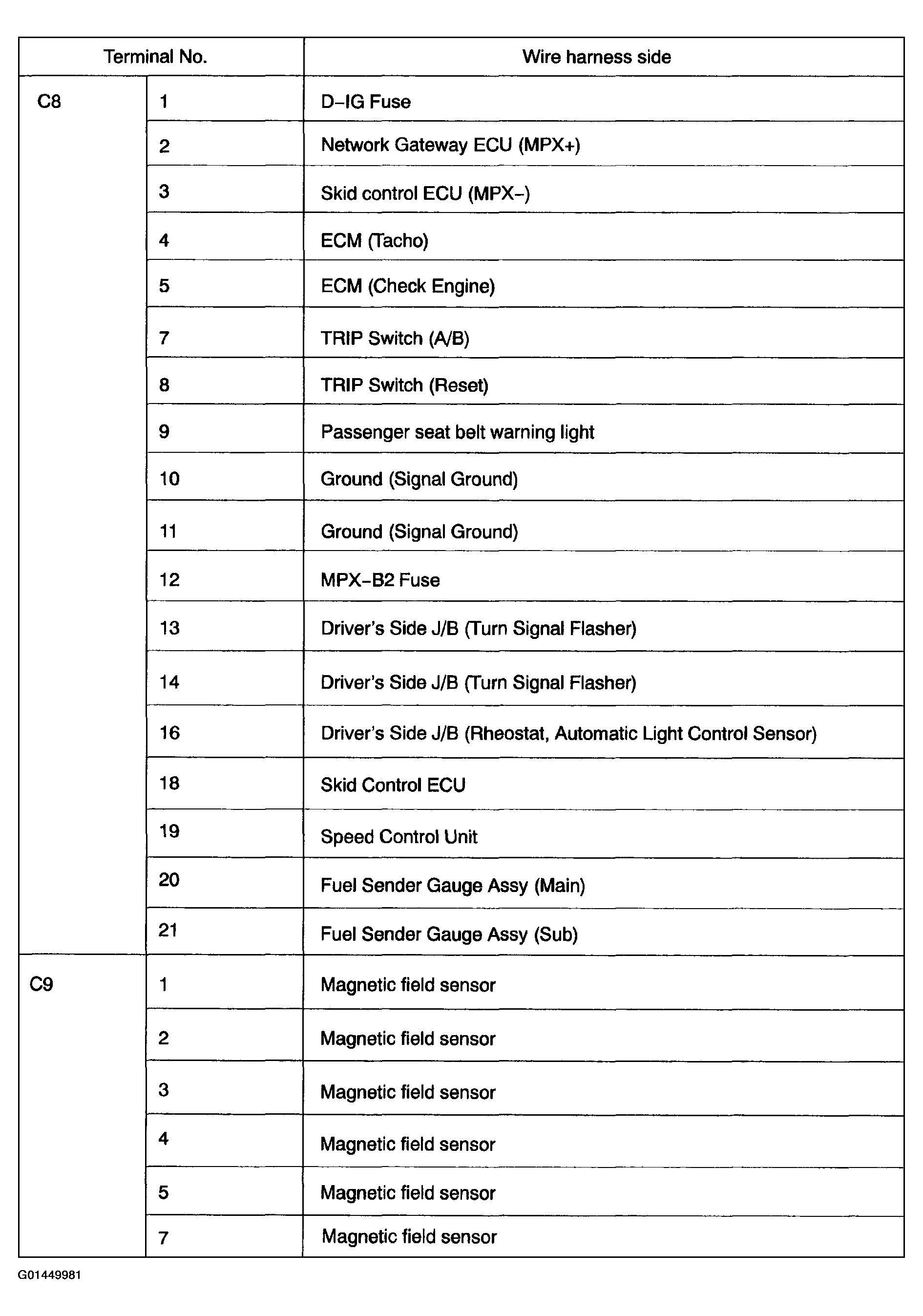

Fig 6: Combination Meter Terminal Pin-Out Chart

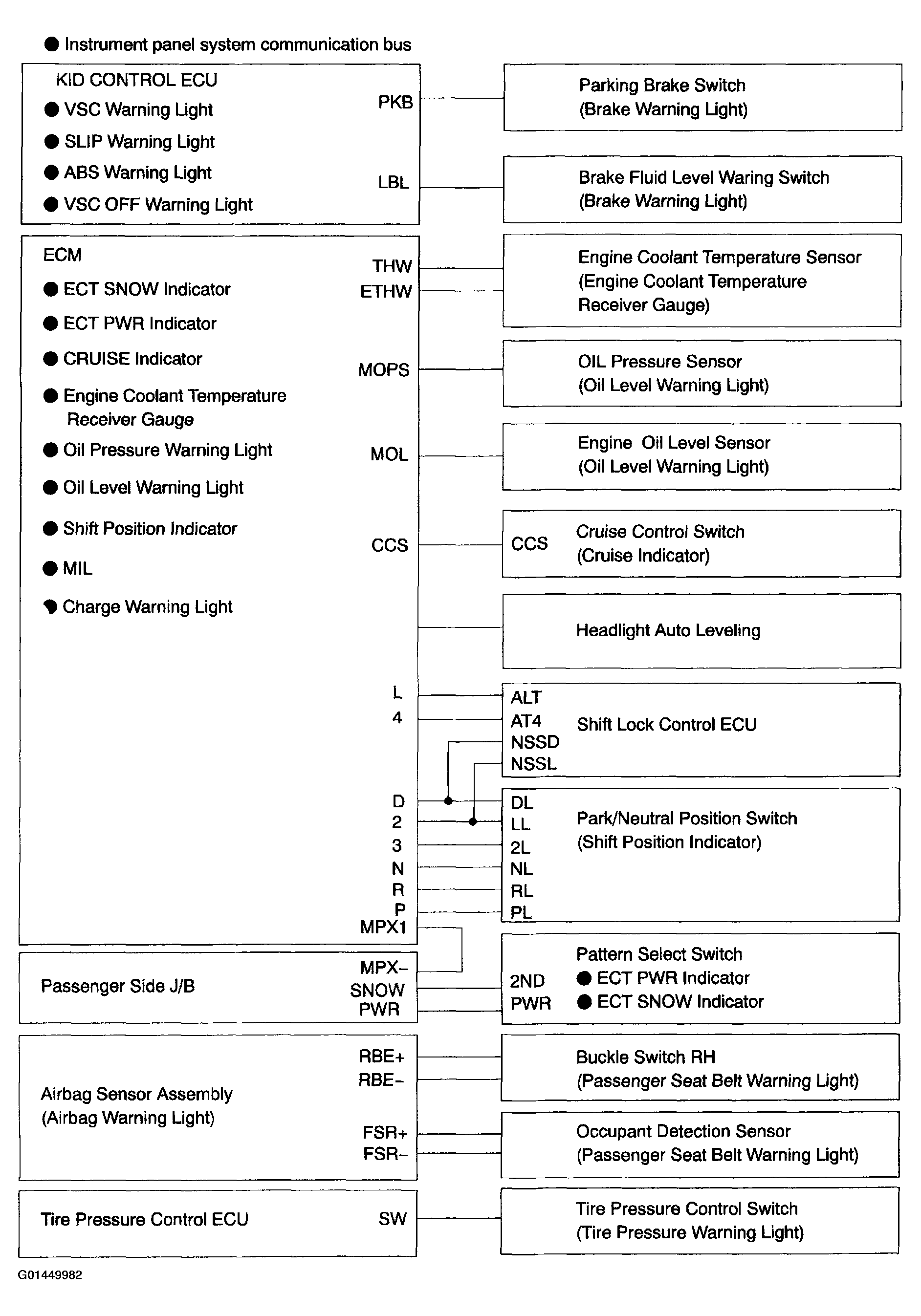

Fig 7: Combination Meter Terminal Reference Table

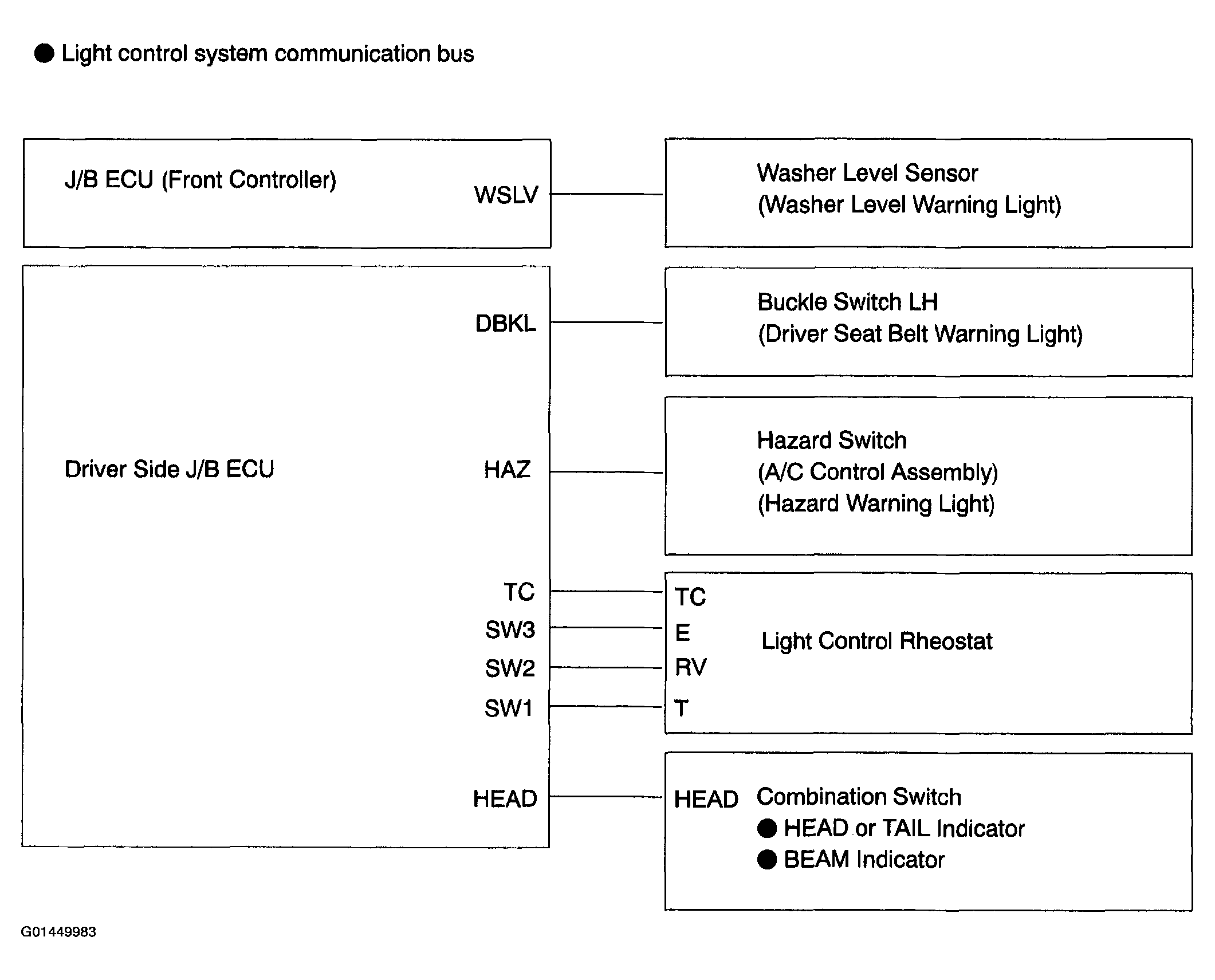

Fig 8: Identifying Terminal Of Light Control System Communication Bus

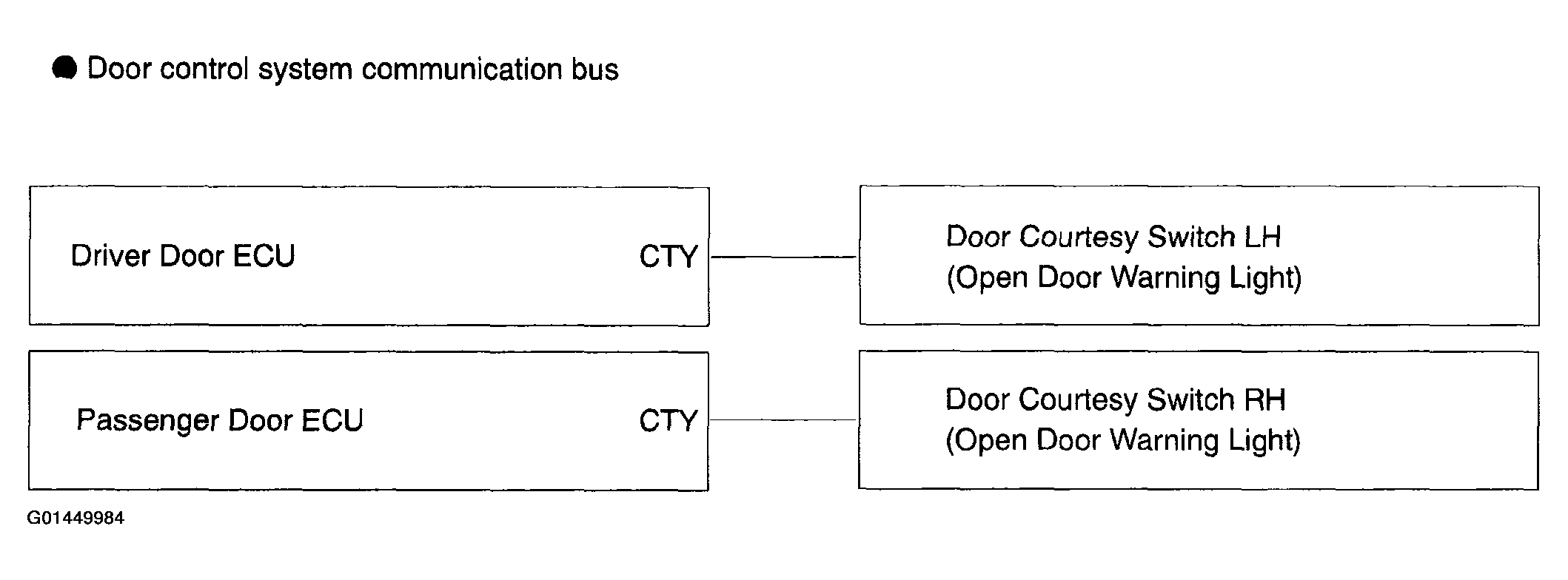

Fig 9: Identifying Terminal Of Door Control System Communication Bus
