Entire Combination Meter Does Not Operate: Wiring Diagram

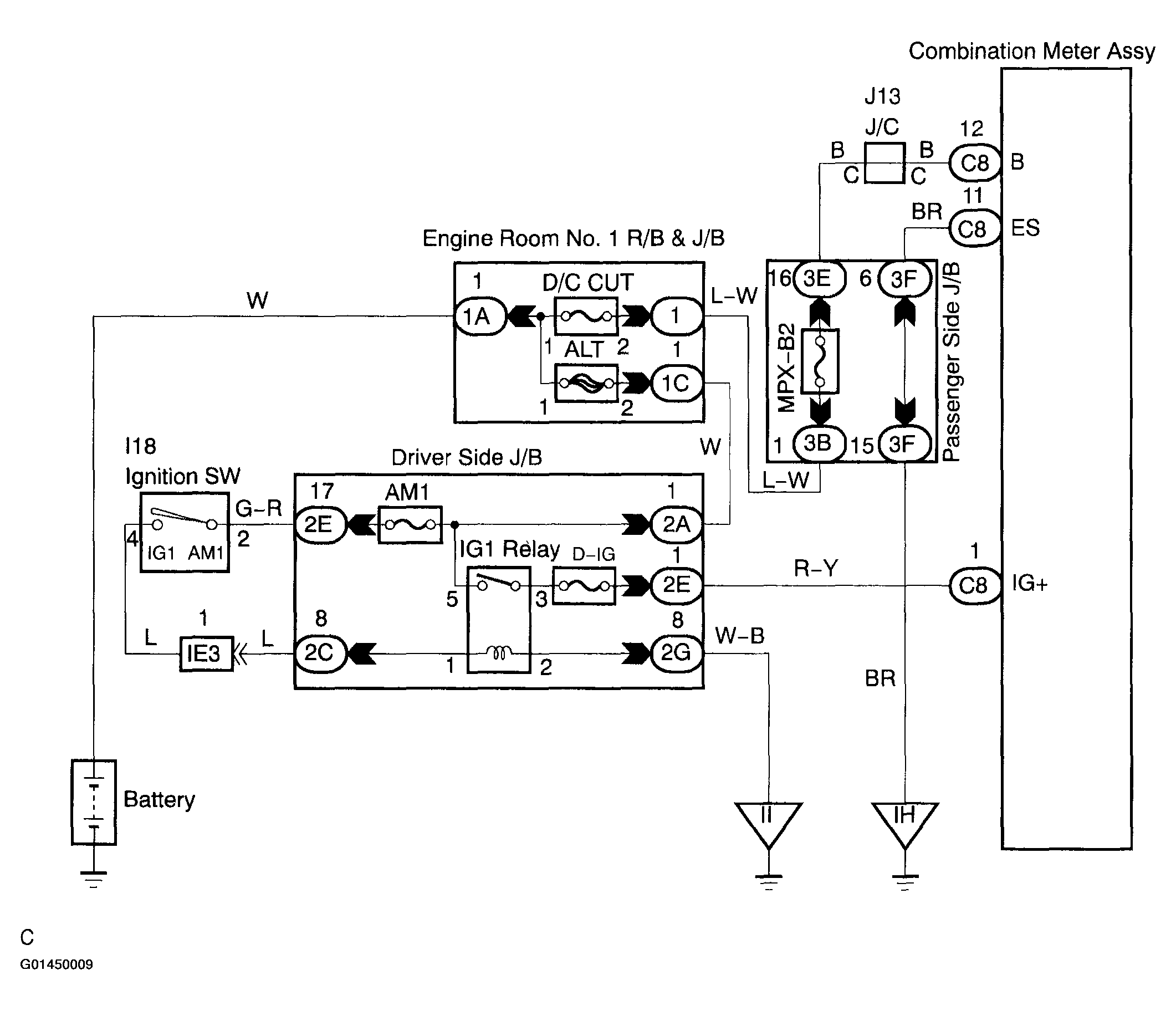

Fig 1: Combination Meter And Ground Circuit Diagram

G01450009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
