Skid Control Ecu

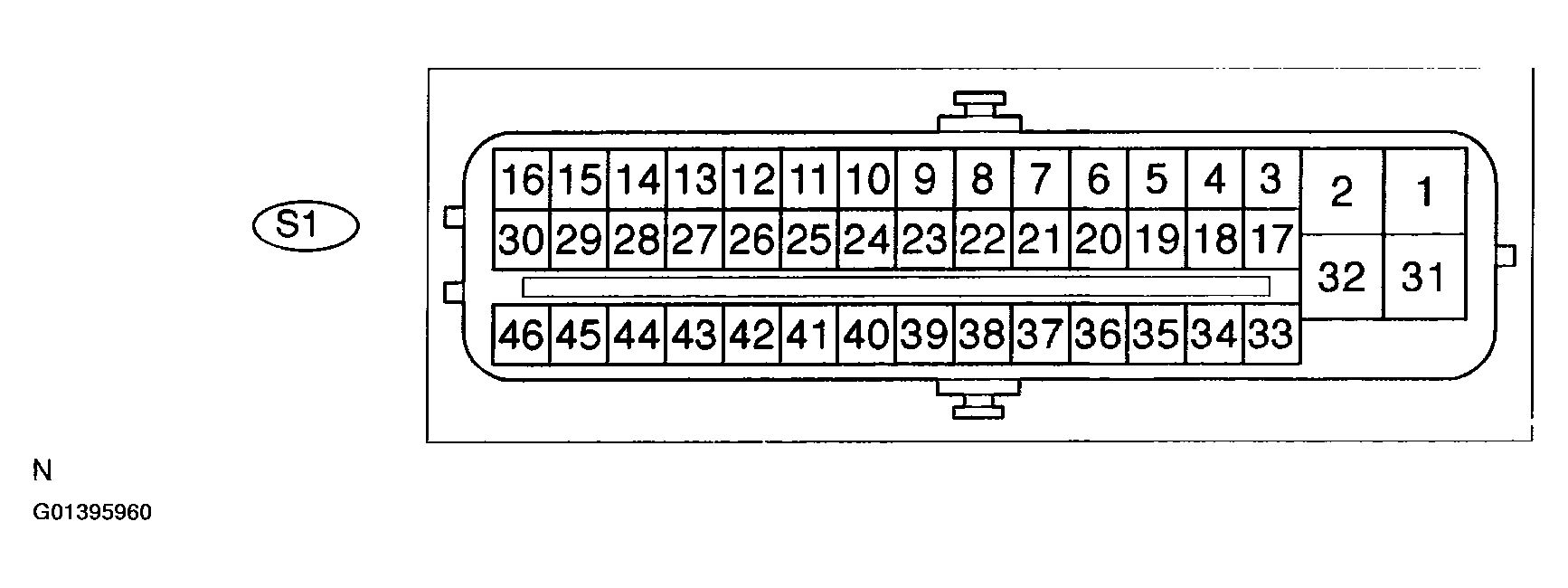

Fig 1: Identifying Skid Control ECU Connector
G01395960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

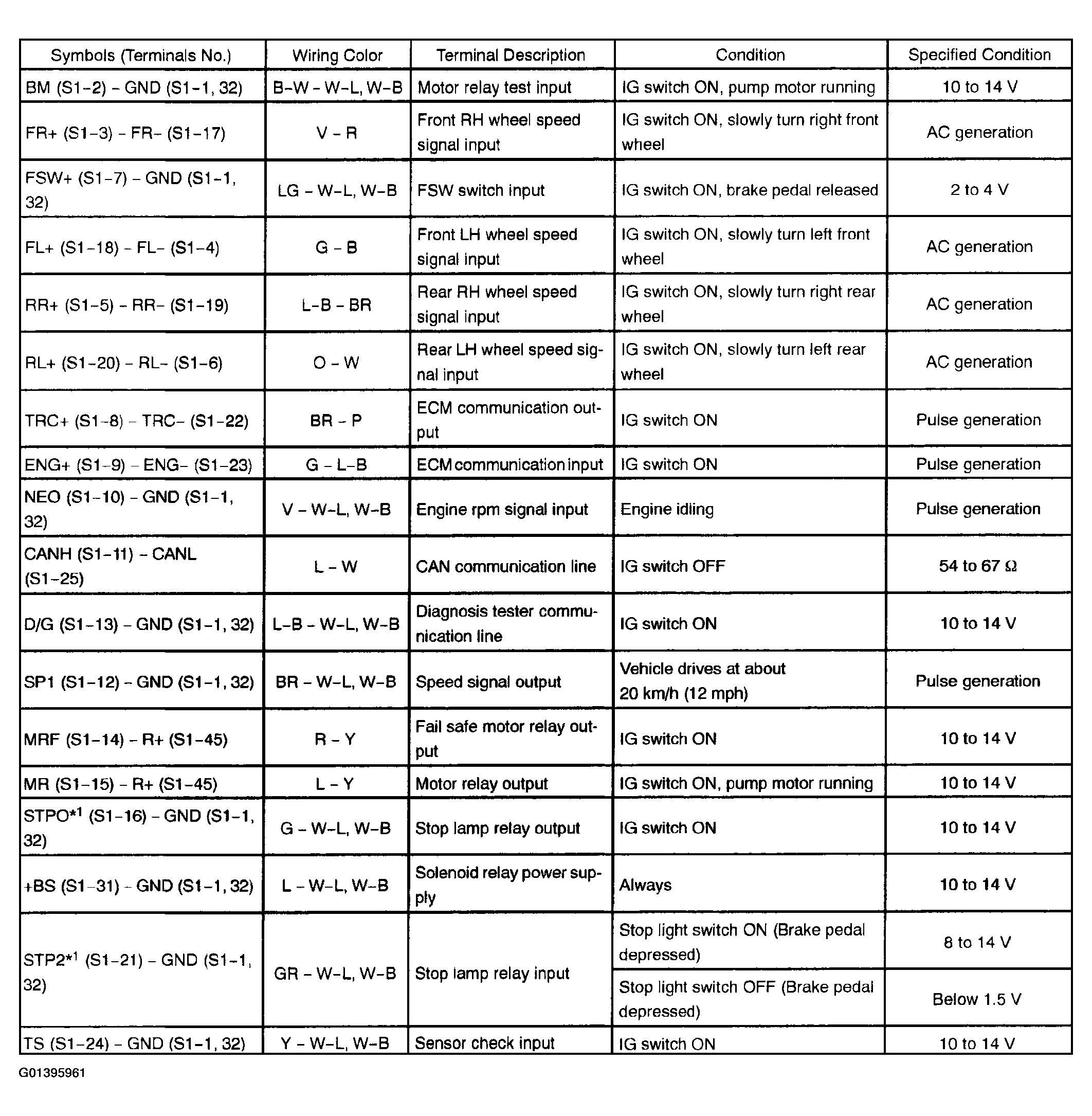

Fig 2: Skid Control ECU Connector Reference Table (1 Of 2)
G01395961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

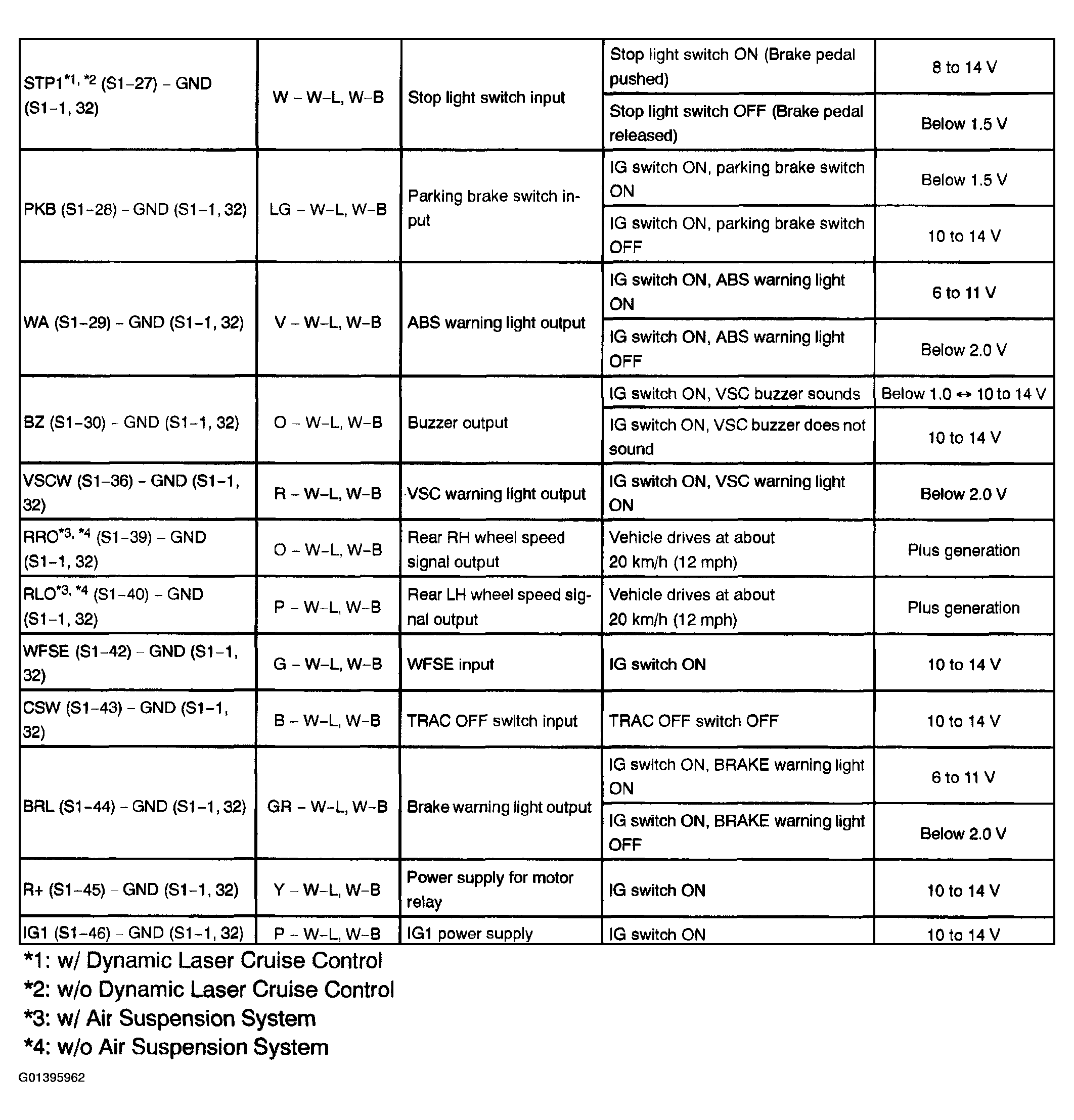

Fig 3: Skid Control ECU Connector Reference Table (2 Of 2)
G01395962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
