TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

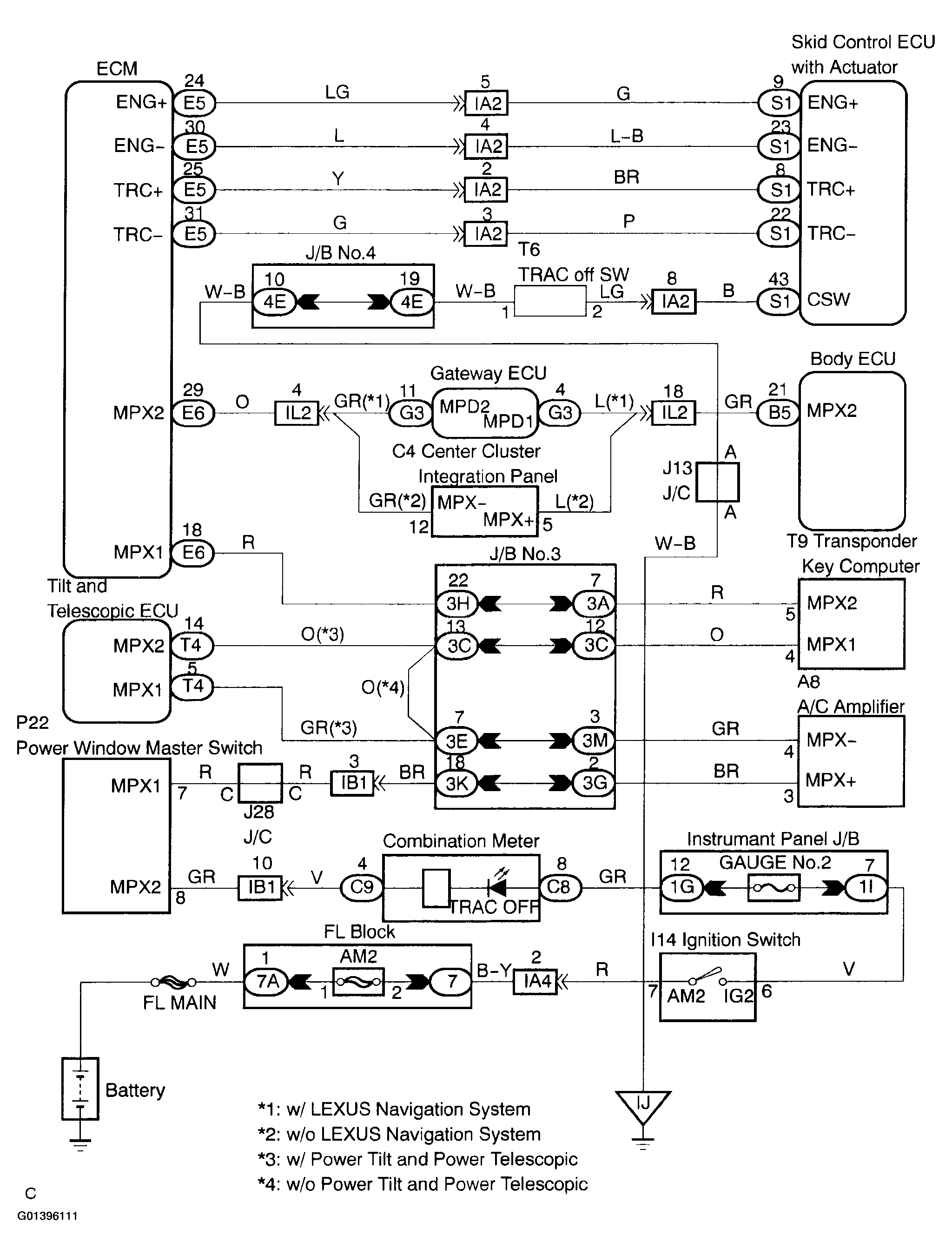

Fig 1: Wiring Diagram

G01396111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
