Home >> Lexus >> 2004 >> RX 330 FWD >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnosis >> Location

Abs With EBD & BA & TRAC & VSC System - Diagnosis: Location

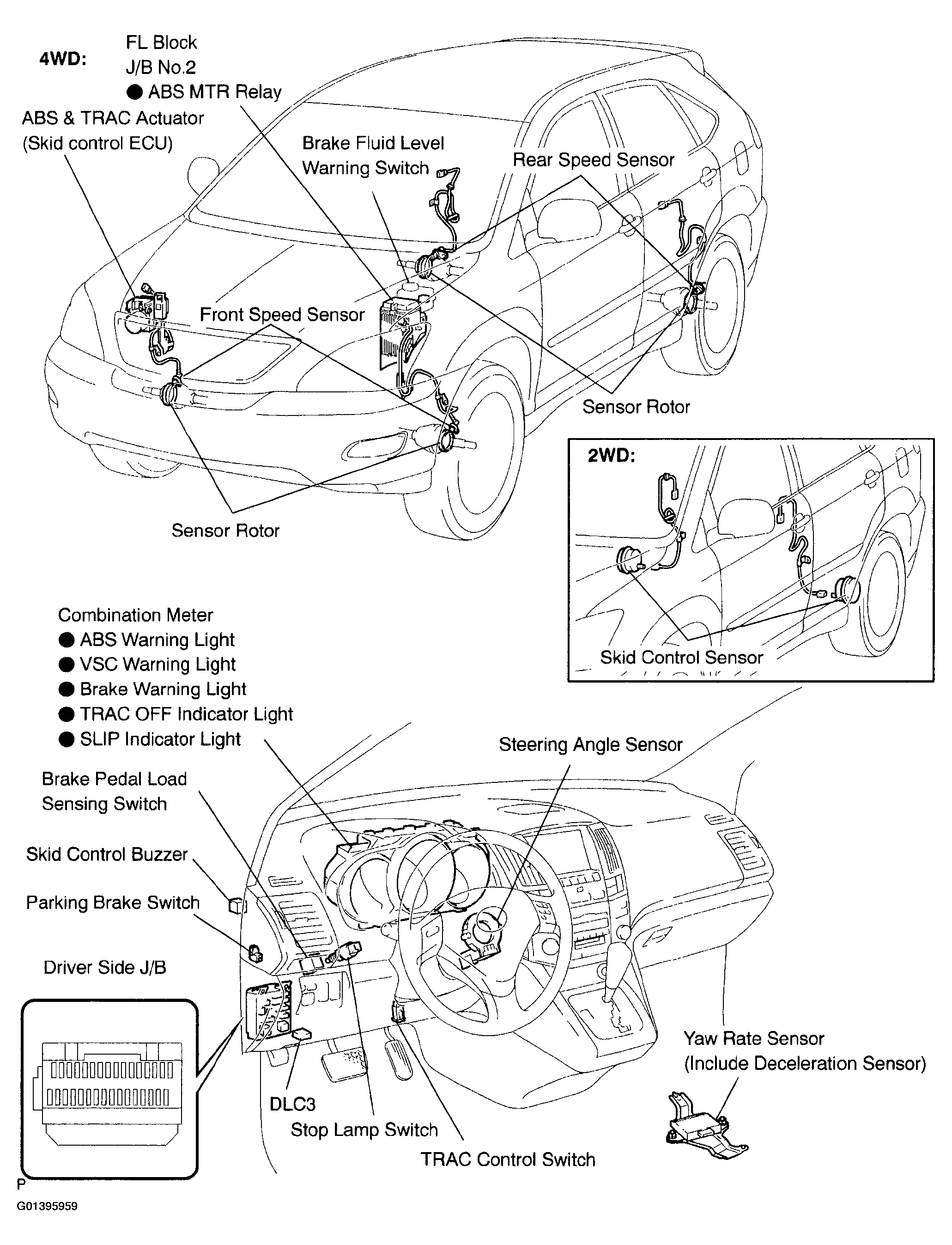

Fig 1: Identifying ABS With EBD & BA & TRAC & VSC System Location
G01395959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
