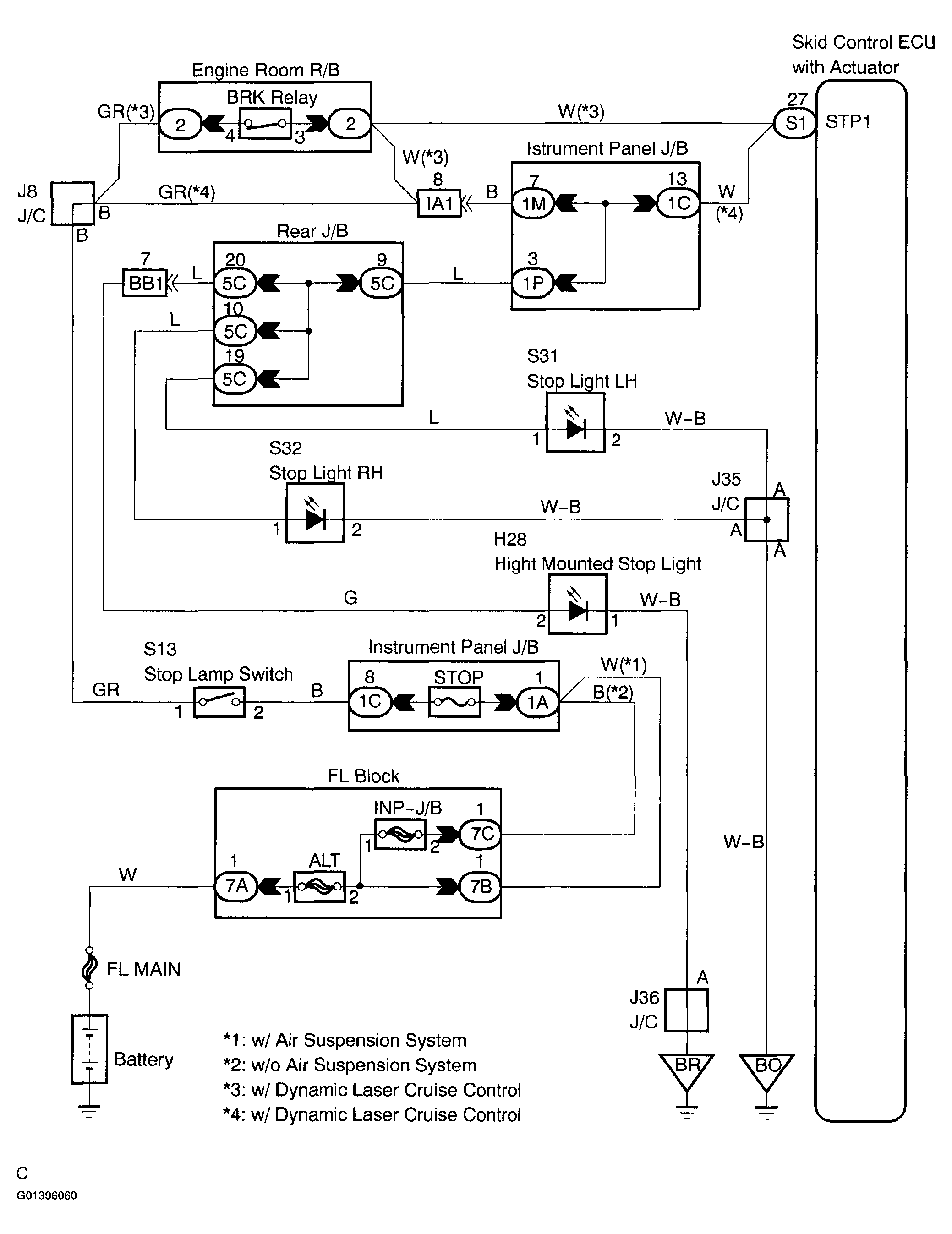

DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

Fig 1: Wiring Diagram

G01396060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
