Circuit Description

Master cylinder pressure sensor is connected to the skid control ECU in the actuator.

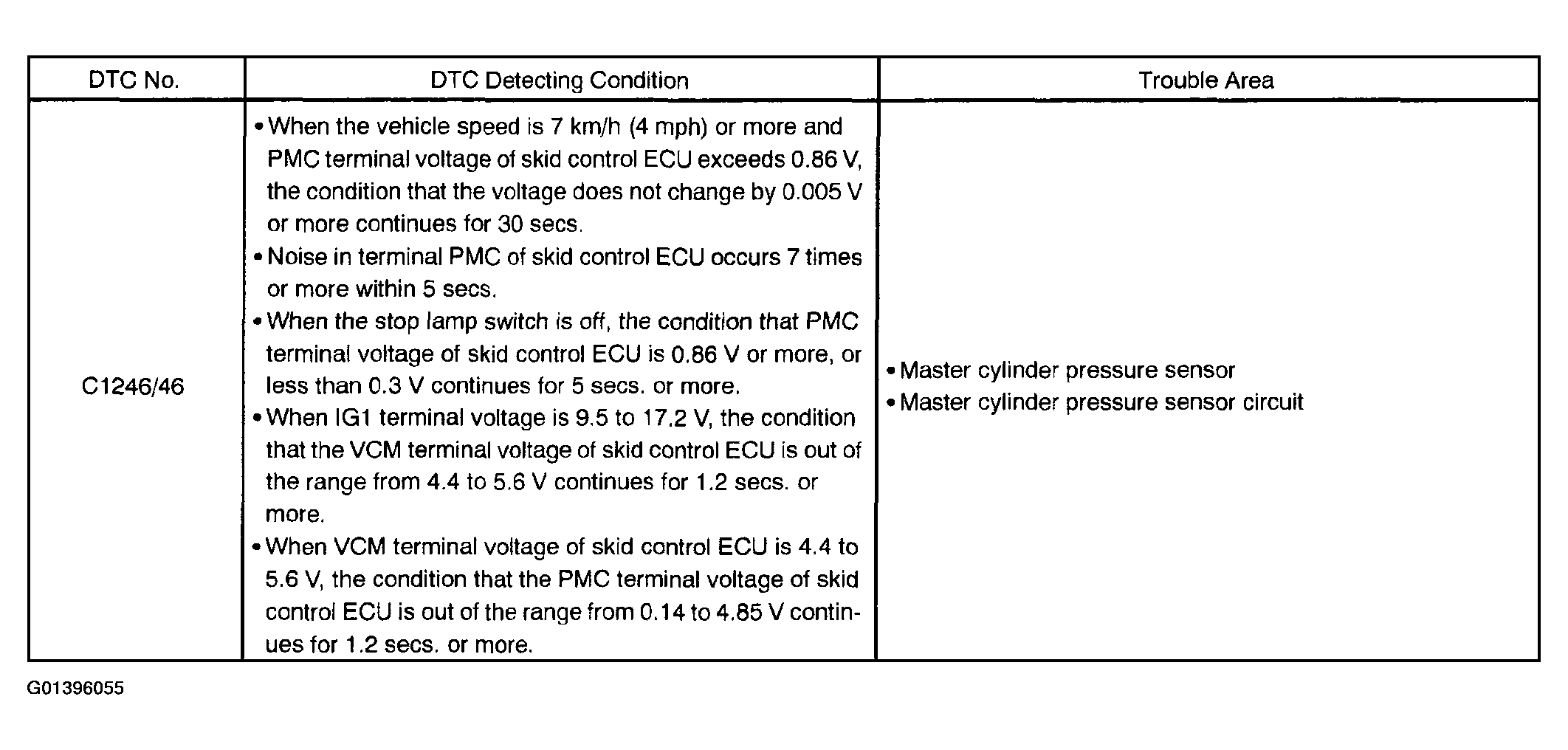

Fig 1: DTC Chart

G01396055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
