DTC C1231/31: Malfunction In Steering Angle Sensor Circuit: Wiring Diagram

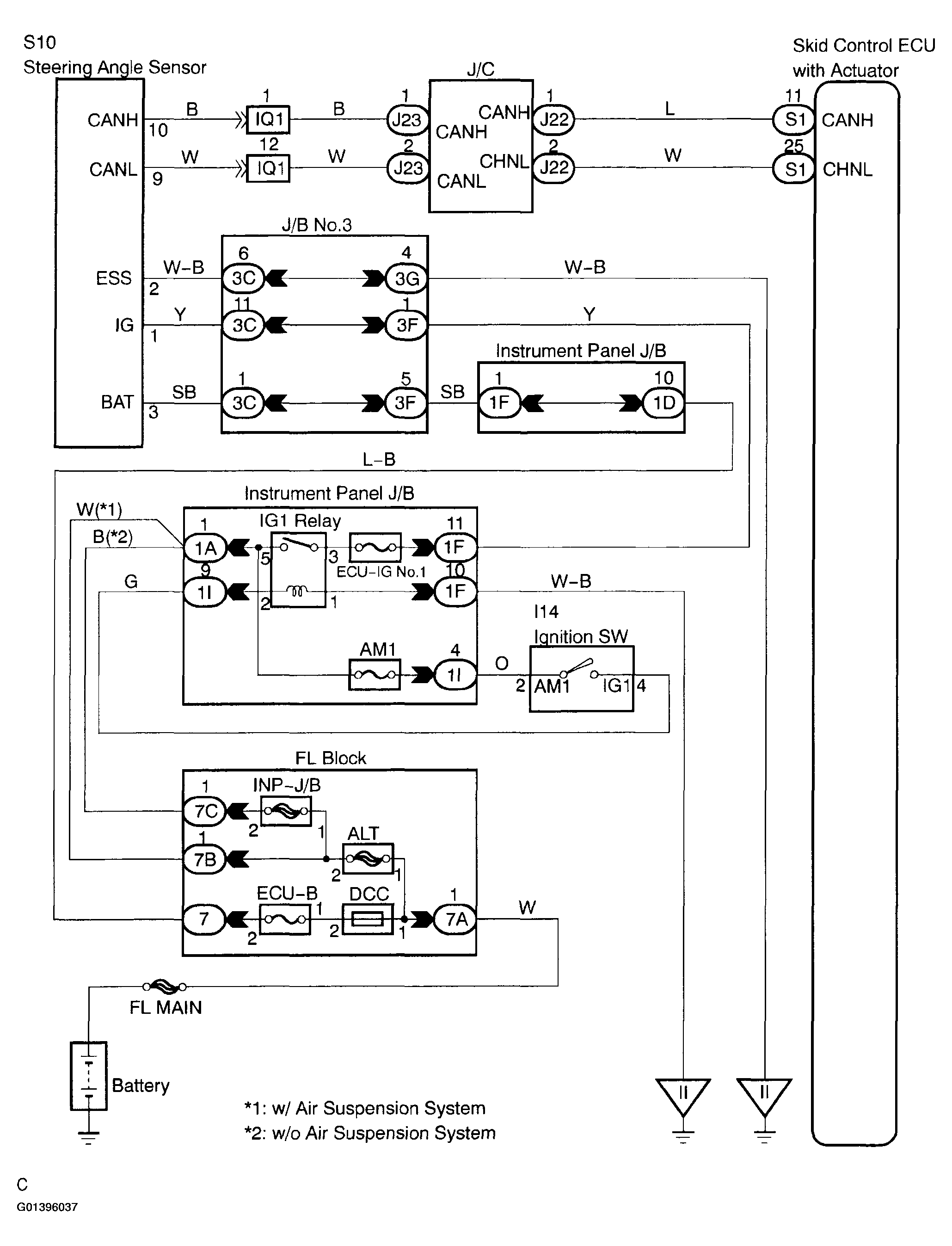

Fig 1: Wiring Diagram

G01396037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
