Inspection Procedure

1. Disconnect the skid control ECU connector S1 and the ECM connector E5.

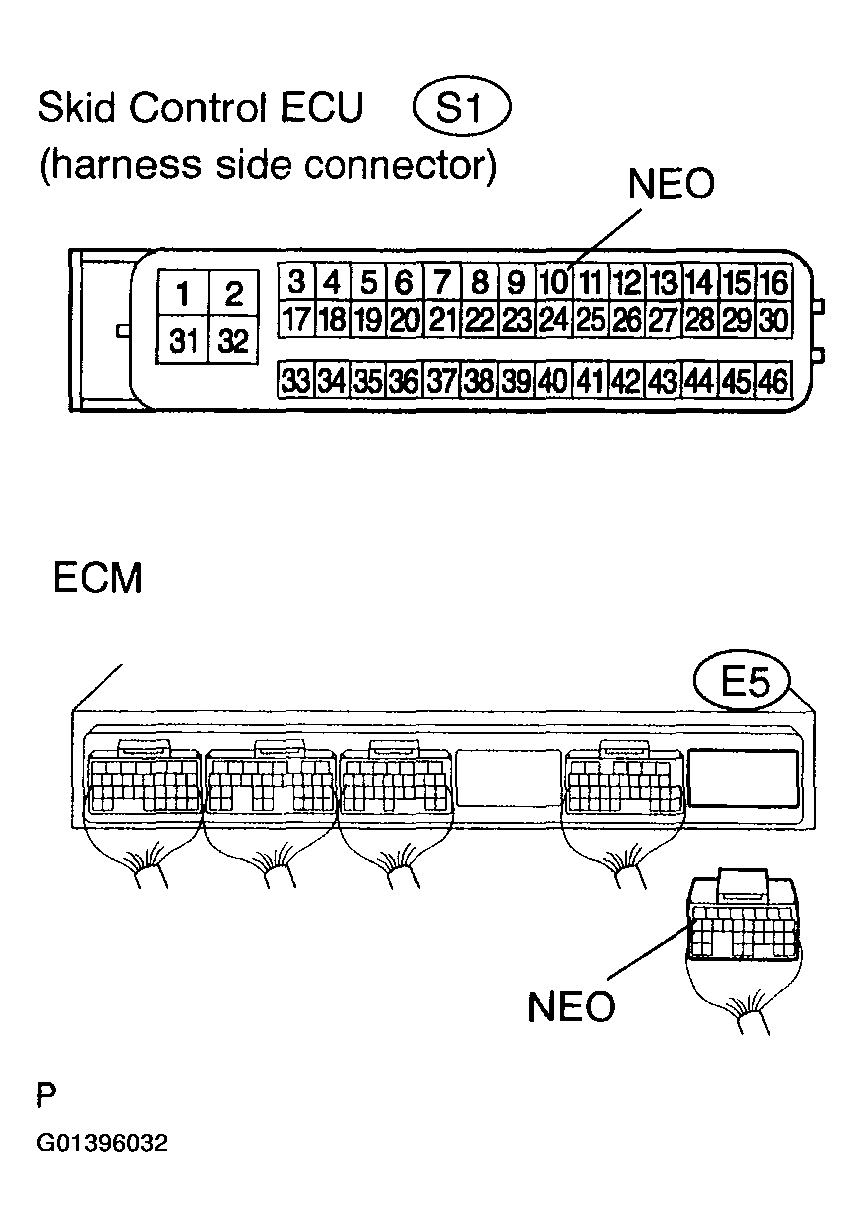

Fig 1: Disconnecting Skid Control ECU Connector S1 And The ECM Connector E5
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in Fig 2 .

   Standard:

   Fig 2: Resistance Standard Table (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in Fig 3 .

   Standard:

   Fig 3: Resistance Standard Table (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP.

1. Reconnect the ECM connector E5 and the skid control ECU connector S1.
Fig 4: Connecting ECM Connector E5 And The Skid Control ECU Connector S1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the signal waveform between terminal NEO (E5-17) of the ECM and body ground for the engine conditions below.

Standard:

1. Waveform similar to that in  Fig 6  is output.

Fig 5: Voltage Standard Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Voltage Waveform Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: CHECK AND REPLACE ECM

OK: IF THE SAME CODE IS STILL OUTPUT AFTER THE DTC IS DELETED, CHECK THE CONTACT CONDITION OF EACH CONNECTION
