DTC C1210/36: Zero Point Calibration Of Yaw Rate Sensor Undone, DTC C1336/39 Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

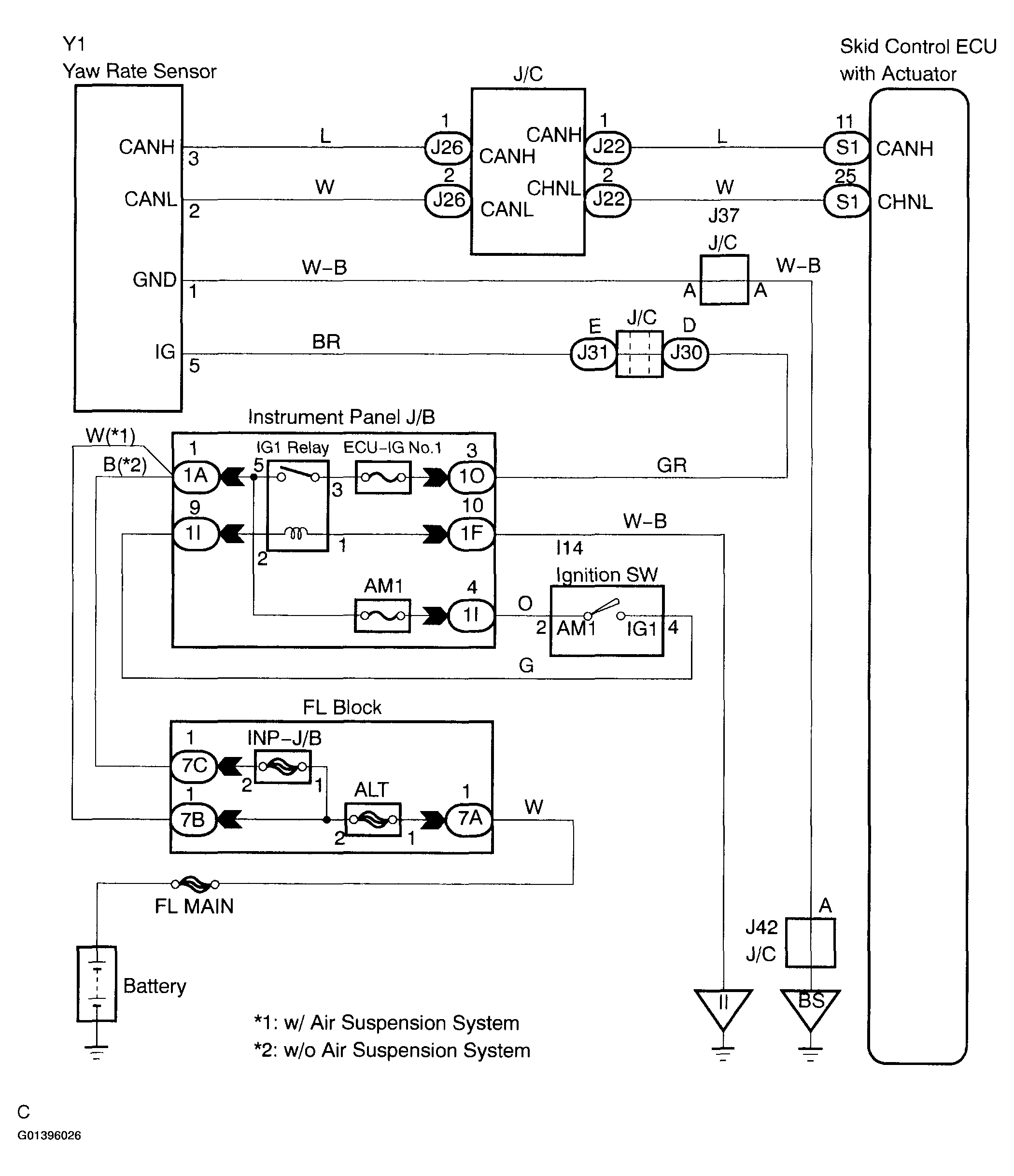

Fig 1: Wiring Diagram
G01396026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
