DTC C0278/11: Open Or Short Circuit In Abs Solenoid Relay, DTC C0279/12 Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

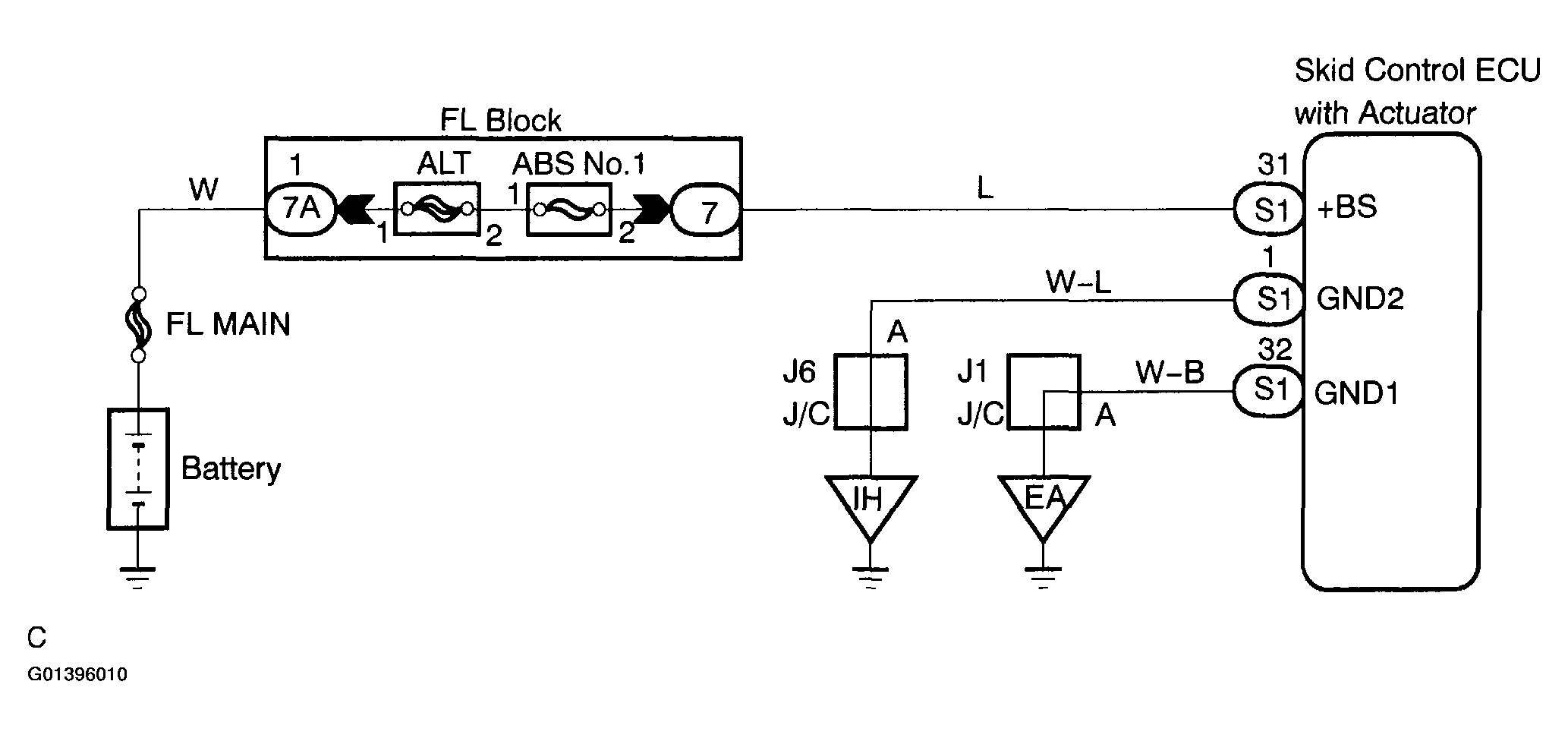

Fig 1: Wiring Diagram
G01396010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
