Circuit Description

This relay supplies power to each ABS solenoid. If the initial check is OK, after the ignition switch is turned to the ON position, the relay stays on.

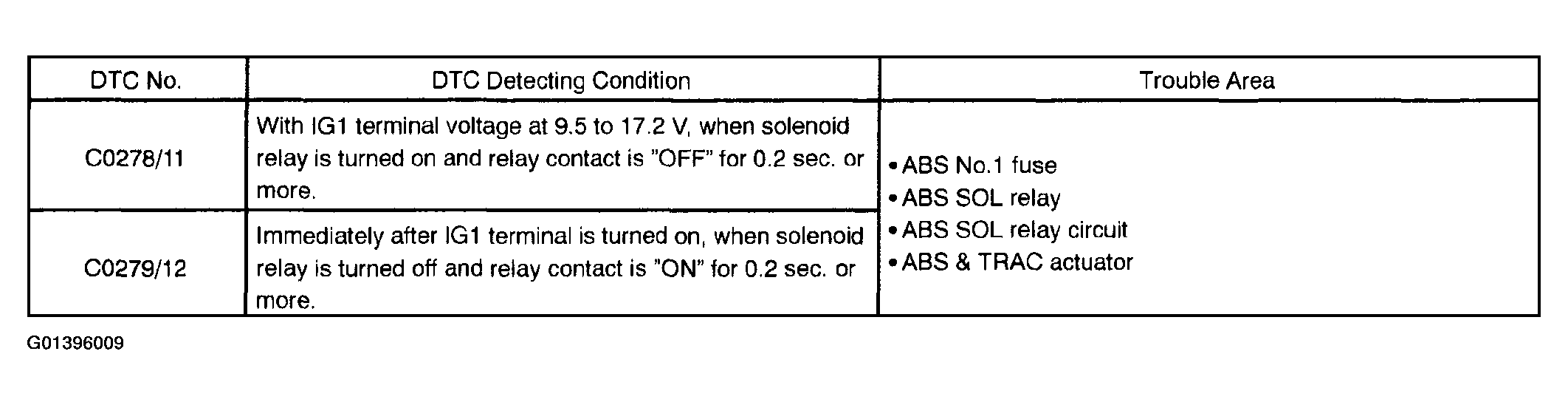

Fig 1: DTC Chart
G01396009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
