DTC C0226/21: SFR Solenoid Circuit, DTC C0236/22 SFL Solenoid Circuit, DTC C0246/23 SRR Solenoid Circuit, DTC C0256/24 SRL Solenoid Circuit, DTC C1225/25 SM Solenoid Circuit: Wiring Diagram

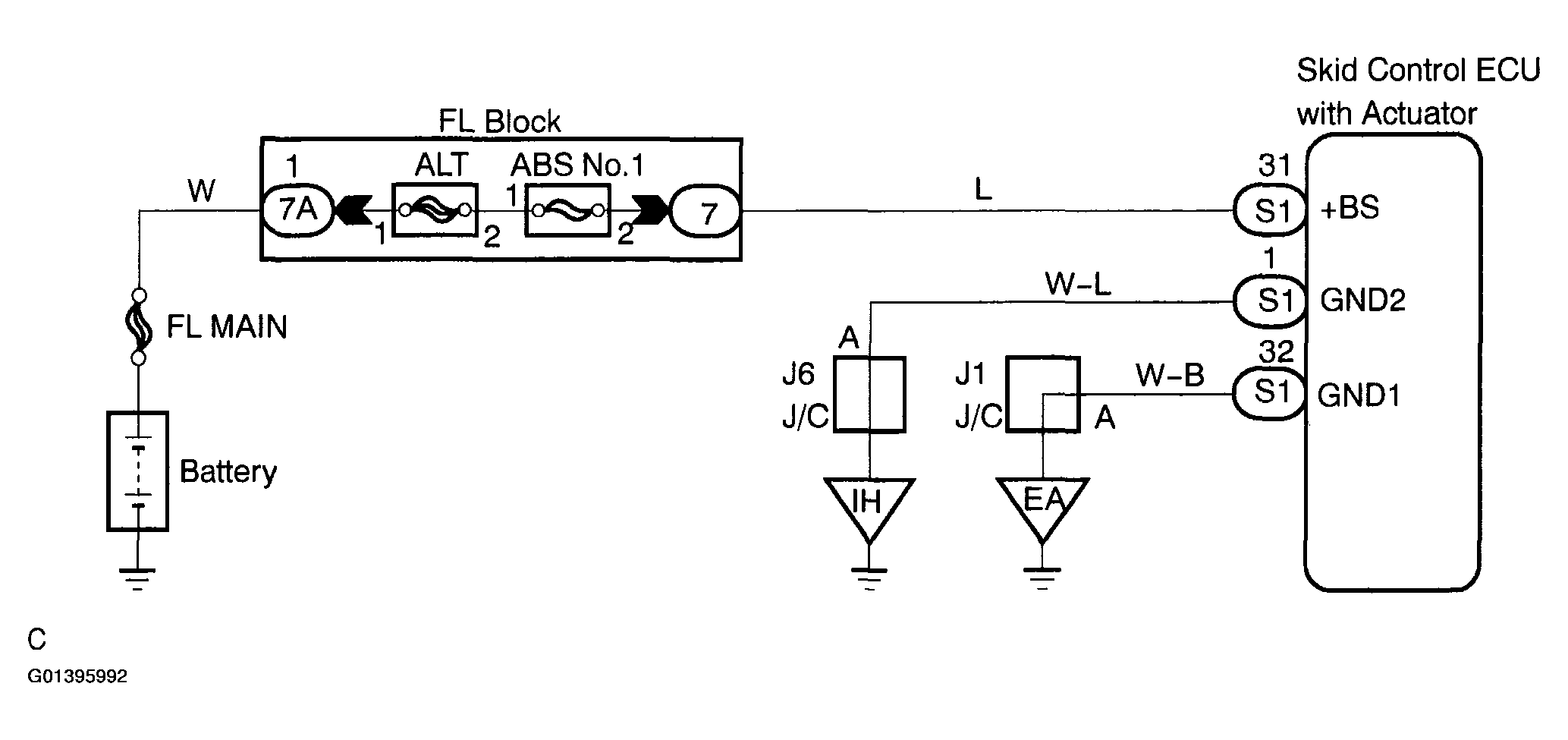

Fig 1: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
