Hood (Exterior Body Panels): Overhaul

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

REMOVE RADIATOR GRILLE
1. Remove the 2 bolts and auxiliary catch release lever.
2. Remove the bolt and auxiliary catch hook.

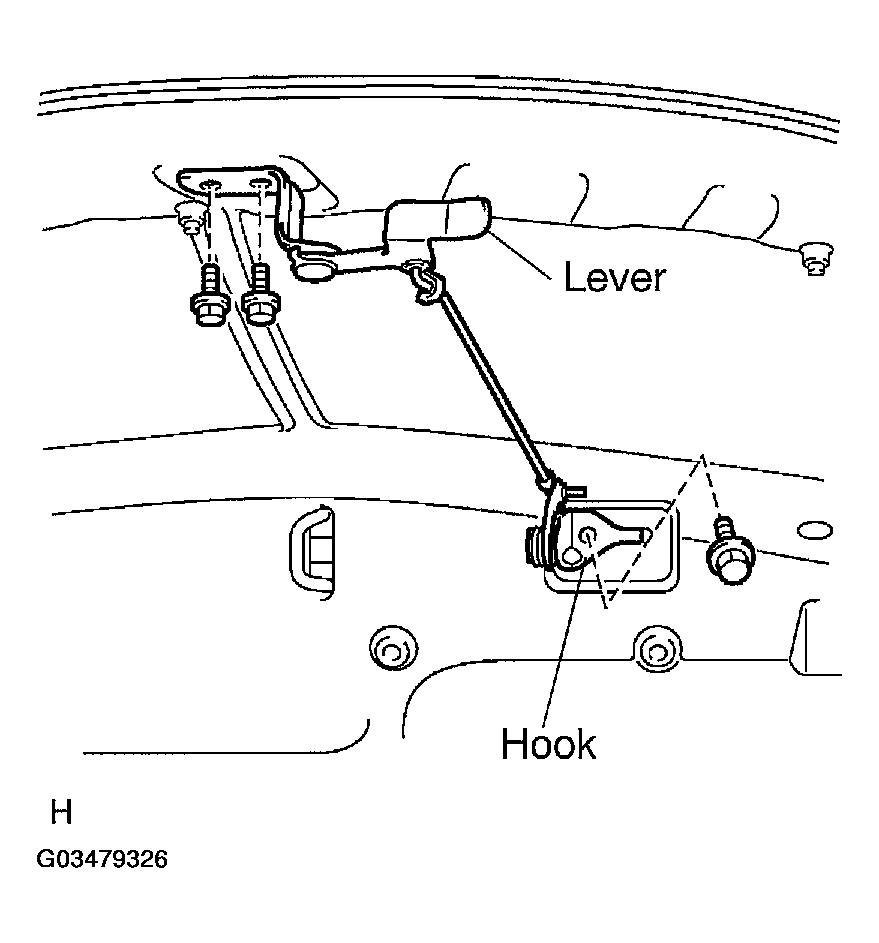

  Fig 1: Removing Bolt & Auxiliary Catch Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 nuts, clip and radiator grille.

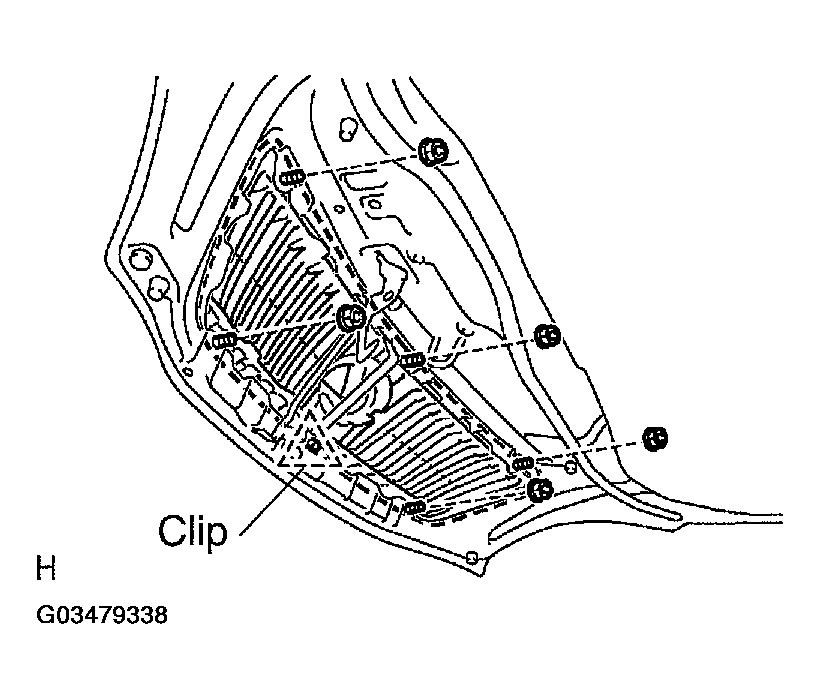

  Fig 2: Removing Nuts, Clip & Radiator Grille
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD INSULATOR
1. Using a clip remover, remove the 8 clips and hood insulator.
  HINT:

  If the clips are damaged, exchange them for new clips.

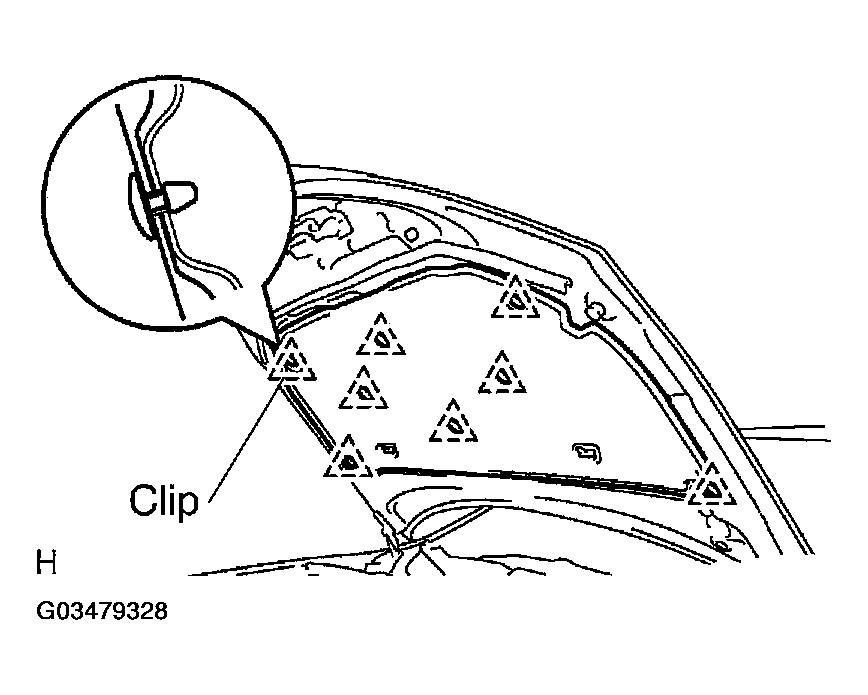

  Fig 3: Removing Clips & Hood Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD SUPPORT ASSY LH (See HOOD SUPPORT ROD )
REMOVE HOOD SUPPORT ASSY RH (See HOOD SUPPORT ROD )
REMOVE HOOD TO RADIATOR SUPPORT SEAL
HINT:

If the clips are damaged, exchange them for a new clips.
REMOVE HOOD TO FRONT FENDER SEAL LH
HINT:

If the clips are damaged, exchange them for new clips.
REMOVE HOOD SUB-ASSY
1. Remove the 4 bolts and hood.

  Fig 4: Removing Bolts & Hood
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD HINGE ASSY LH
1. Remove the 2 bolts and hood hinge.
REMOVE HOOD HINGE ASSY RH
1. Remove the 2 bolts and hood hinge.

  Fig 5: Removing Bolts & Hood Hinge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOL AIR INTAKE DUCT SEAL
1. Using a clip remover, remove the 4 clips and cool air intake duct seal.

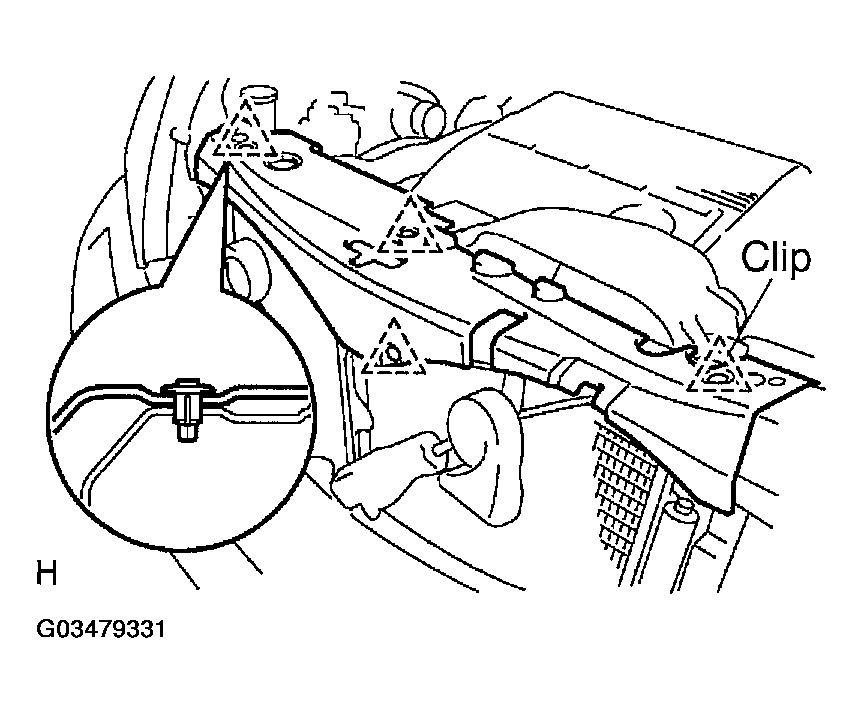

  Fig 6: Removing Cool Air Intake Duct Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK ASSY
1. Remove the 2 screws and disengage the 2 claws and remove the hood lock control cable cover.
  HINT:

  If the cover is damaged, exchange it for a new cover.

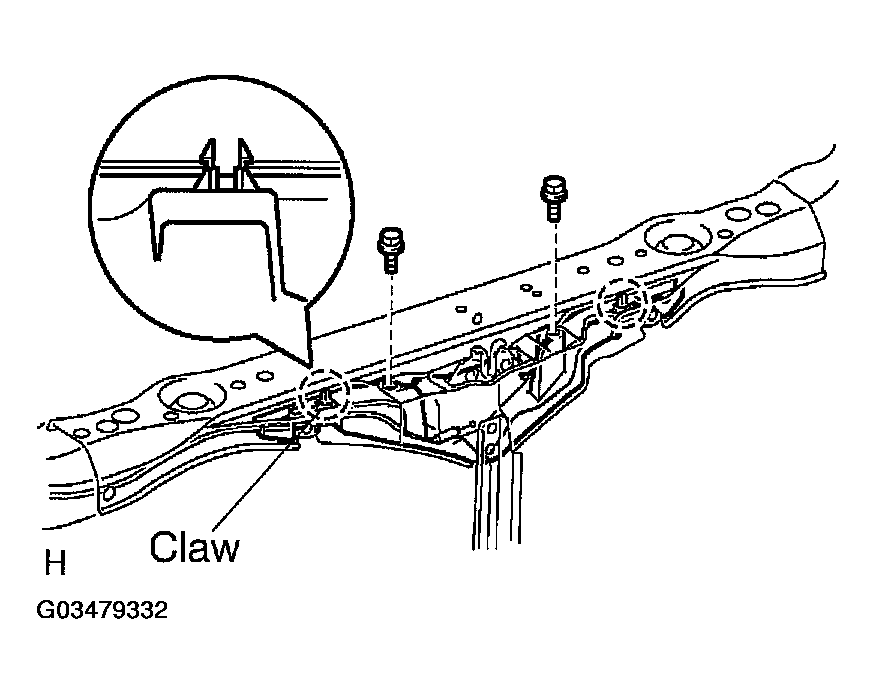

  Fig 7: Removing Hood Lock Control Cable Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, pry out the nut cap.
  HINT:

  Tape the screwdriver tip before use.

  NOTE: Removing the nut cap damages the clips inside the nut cap. Therefore, the use of a new nut cap is necessary for installation.

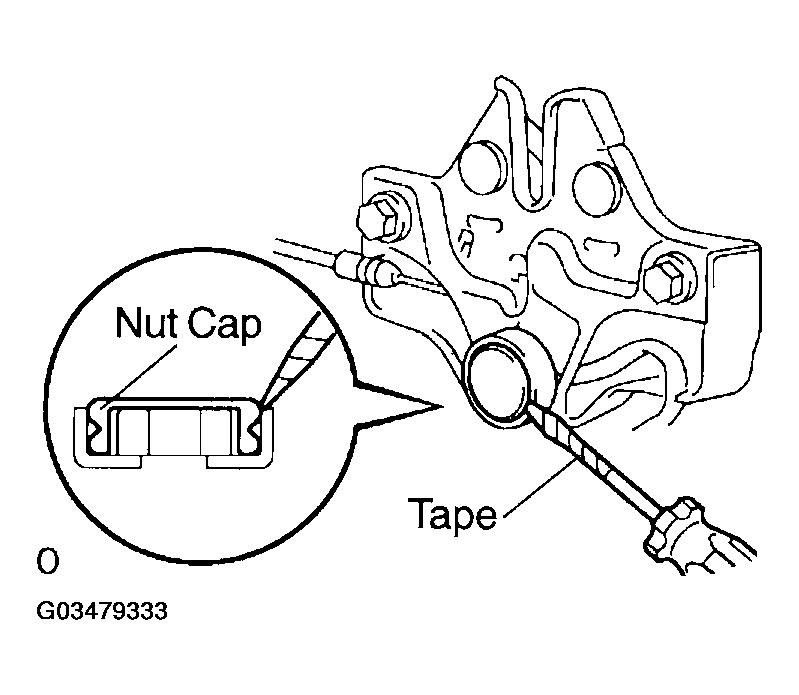

  Fig 8: Prying Out Nut Cap Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and hood lock.
4. Disconnect the connector.
5. Remove the cable.

  Fig 9: Removing Bolts & Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK ASSY
1. Install the cable.
2. Connect the connector.
3. Install the hood lock with the 3 bolts.
  Torque: 8.0 N.m (82 kgf.cm, 10 in..lbf)
4. Adjust the hood lock position (See ADJUSTMENT ).
5. Install the cap nut.
6. Install the hood lock control cable cover.

  Fig 10: Installing Hood Lock With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD HINGE ASSY LH
1. Install the hood hinge with the 2 bolts.
  Torque: 13.0 N.m (133 kgf.cm, 10 ft.lbf)
INSTALL HOOD HINGE ASSY RH
1. Install the hood hinge with the 2 bolts.
Torque: 13.0 N.m (133 kgf.cm, 10 ft.lbf)

Fig 11: Installing Hood Hinge With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD SUB-ASSY
1. Install the hood with the 4 bolts.
  Torque: 13.0 N.m (133 kgf.cm, 10 ft.lbf)
2. Adjust the hood position (See ADJUSTMENT ).

  Fig 12: Installing Hood With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE
1. Install the radiator grille with the clip and 5 nuts.

  Fig 13: Installing Radiator Grille With Clip & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the auxiliary catch hook with the bolt.
  Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)
3. Install the auxiliary catch release lever with the 2 bolts.
Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)

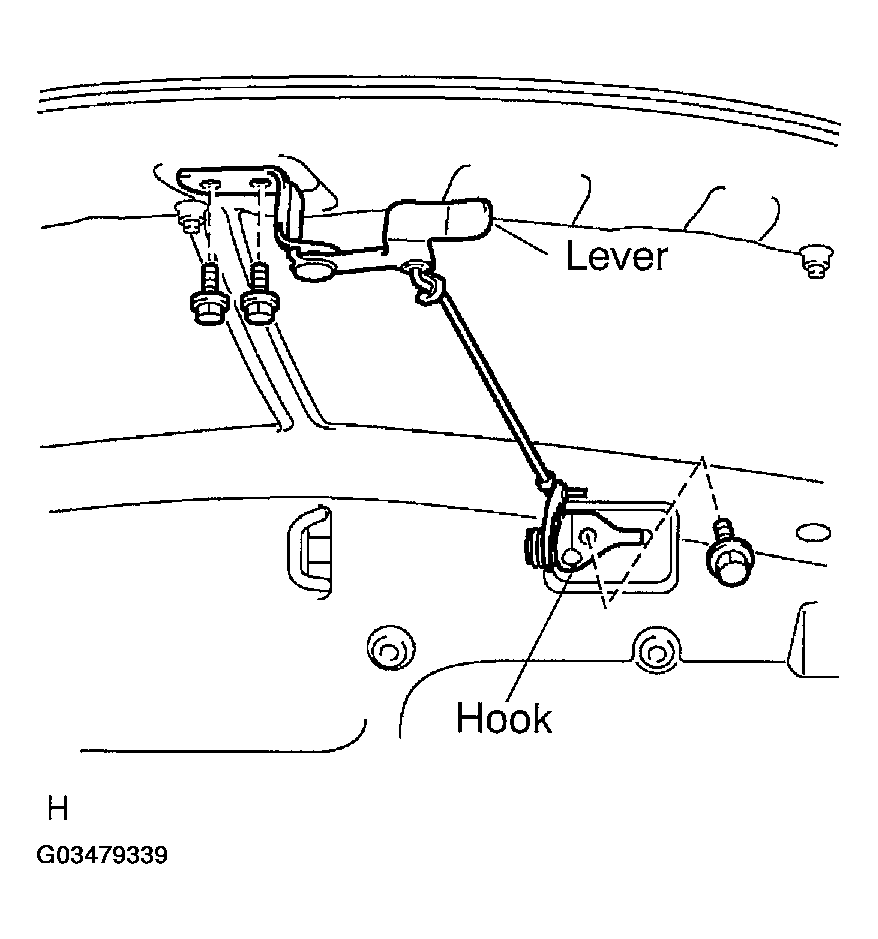

Fig 14: Installing Auxiliary Catch Releasing Lever With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
