Back Door (Exterior Body Panels): Components

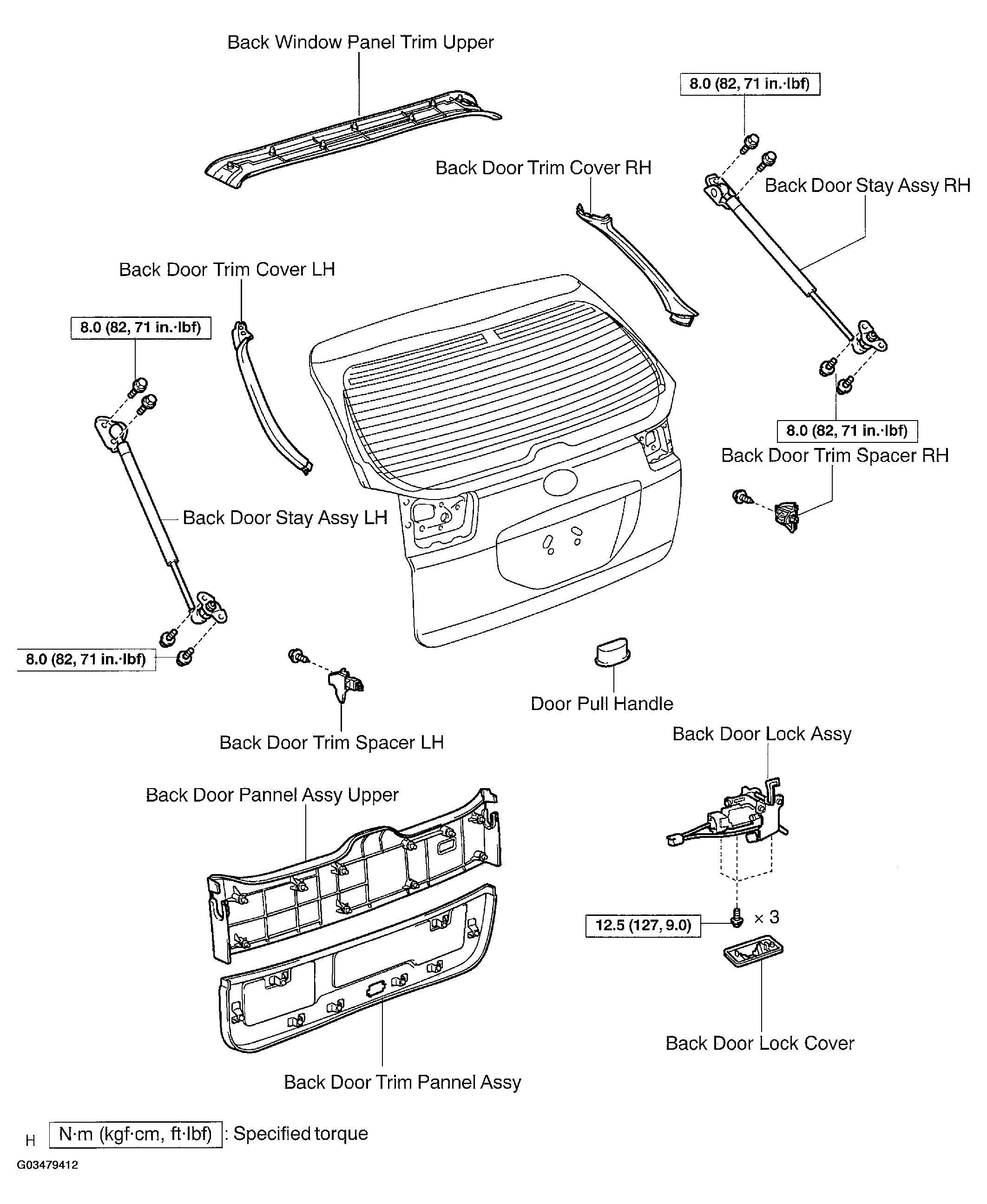

Fig 1: Exploded View Of Back Door Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

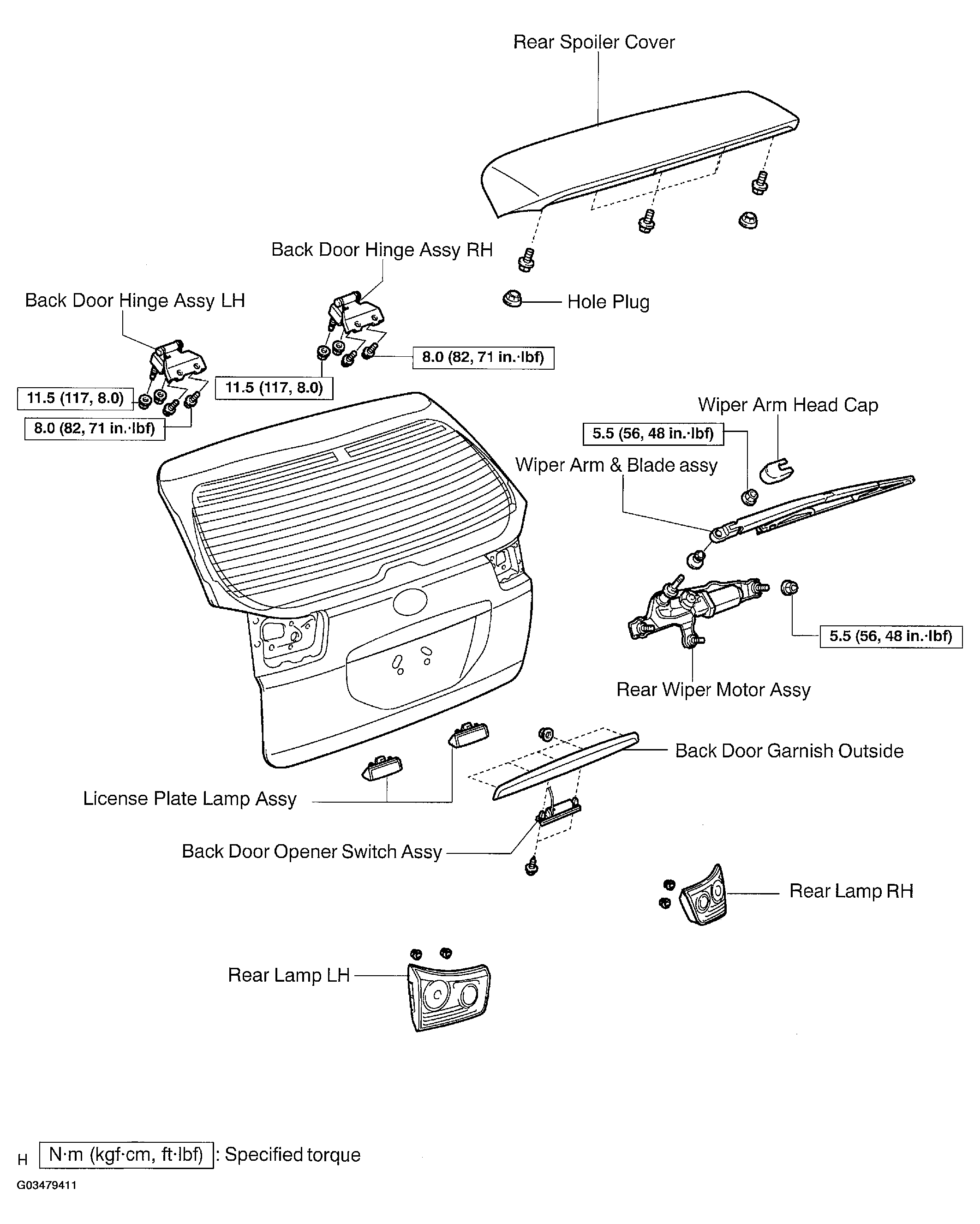

Fig 2: Exploded View Of Back Door Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
