Roof Headlining ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.
On the LH side, use the same procedures as on the RH side.

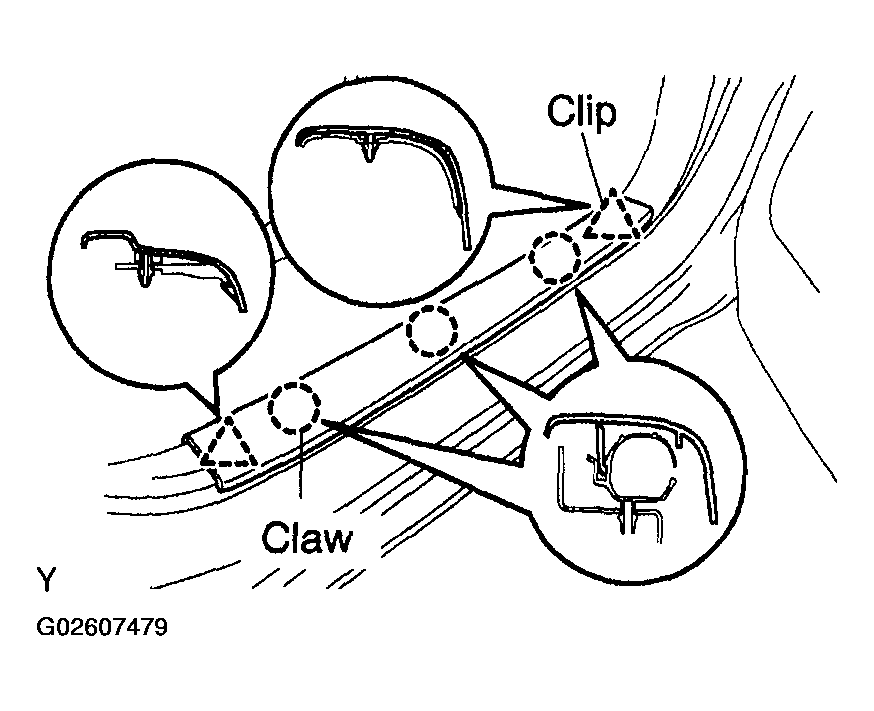

REMOVE FRONT DOOR SCUFF PLATE RH
1. Using a screwdriver, disengage the 3 clips and 2 claws, and remove the scuff plate.
HINT:

Tape the screwdriver tip before use.
REMOVE FRONT DOOR SCUFF PLATE LH

Fig 1: Disengaging 3 Clips And 2 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

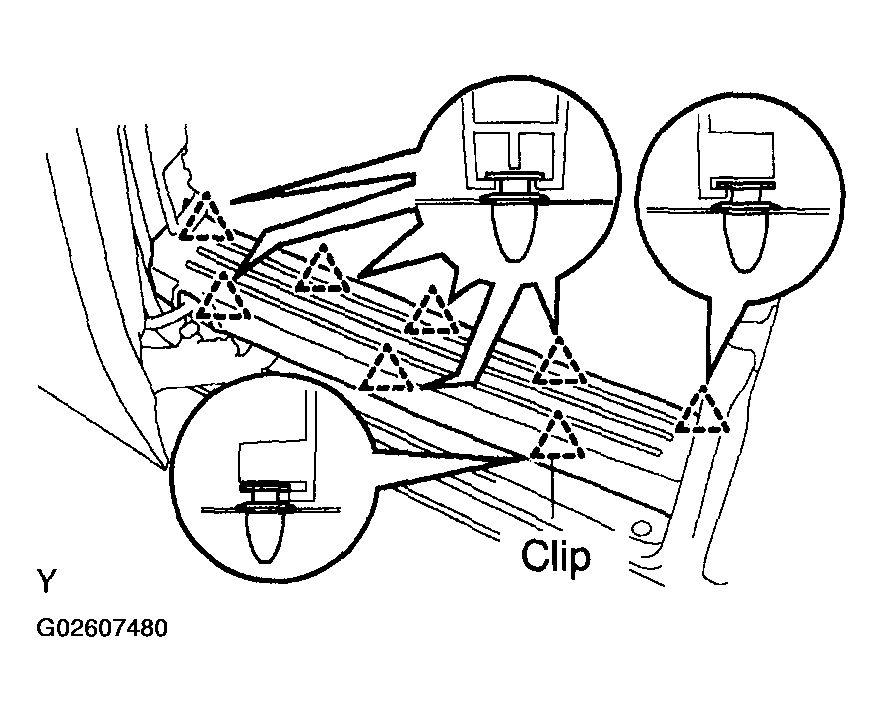

REMOVE REAR DOOR SCUFF PLATE RH
1. Using a screwdriver, disengage the 8 clips and remove the scuff plate.
HINT:

Tape the screwdriver tip before use.
REMOVE REAR DOOR SCUFF PLATE LH

Fig 2: Disengaging 8 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

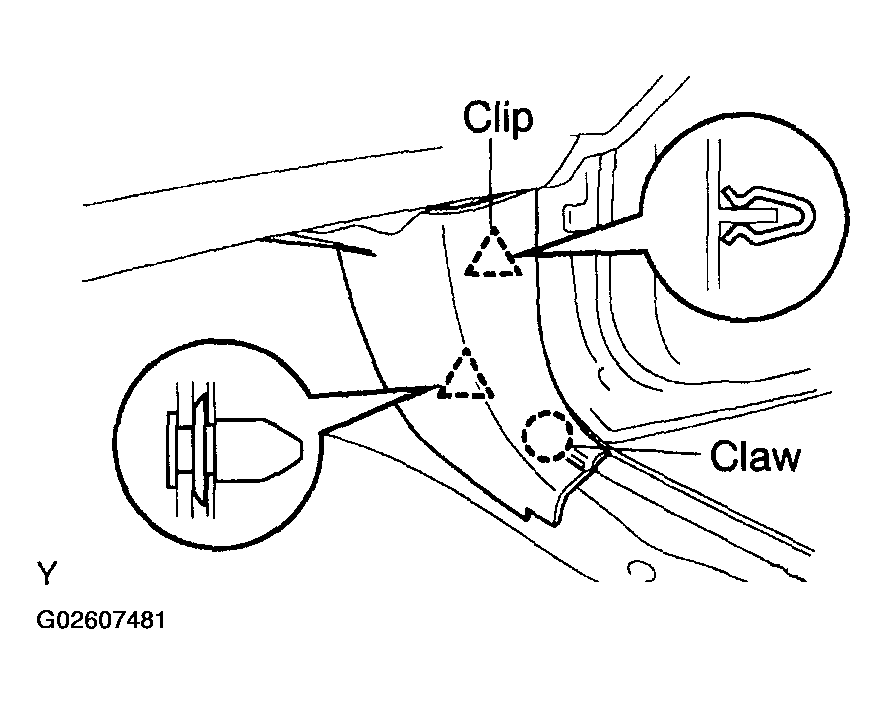

REMOVE COWL SIDE TRIM BOARD RH
1. Using a screwdriver, disengage the 2 clips and claw, and remove the trim board.
HINT:

Tape the screwdriver tip before use.
REMOVE COWL SIDE TRIM BOARD LH

Fig 3: Disengaging 2 Clips And Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
REMOVE REAR DOOR WEATHERSTRIP RH
HINT:

When reinstalling the weatherstrip, completely remove the sealer adhering to the opening flange on the body side beforehand.
REMOVE REAR DOOR WEATHERSTRIP LH
HINT:

When reinstalling the weatherstrip, completely remove the sealer adhering to the opening flange on the body side beforehand.
REMOVE CENTER PILLAR GARNISH LOWER RH
1. Remove the floor anchor cover.
2. Remove the bolt and disconnect the front seat outer belt on the floor anchor side.

  Fig 4: Disconnecting Front Seat Outer Belt On Floor Anchor Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, disengage the 5 clips and remove the pillar garnish.
  HINT:

  Tape the screwdriver tip before use.
4. w/ power slide door:
  Disconnect the power slide door control switch RH connector.
REMOVE CENTER PILLAR GARNISH LOWER LH

Fig 5: Disengaging 5 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR GARNISH UPPER RH
1. Using a screwdriver, disengage the assist grip plugs.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 2 Torx® screws and assist grip No. 2 RH.

  Fig 6: Disengaging Assist Grip Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts.
4. Using a screwdriver, disengage the clip and remove the pillar garnish.
HINT:

Tape the screwdriver tip before use.
REMOVE CENTER PILLAR GARNISH UPPER LH
HINT:

Use the same procedures described above for the RH side.

Fig 7: Removing 3 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR WEATHERSTRIP
REMOVE BACK DOOR SCUFF PLATE
1. Remove the 3 bolts.
2. Using a screwdriver, disengage the 6 clips and remove the scuff plate.
HINT:

Tape the screwdriver tip before use.

Fig 8: Removing 3 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

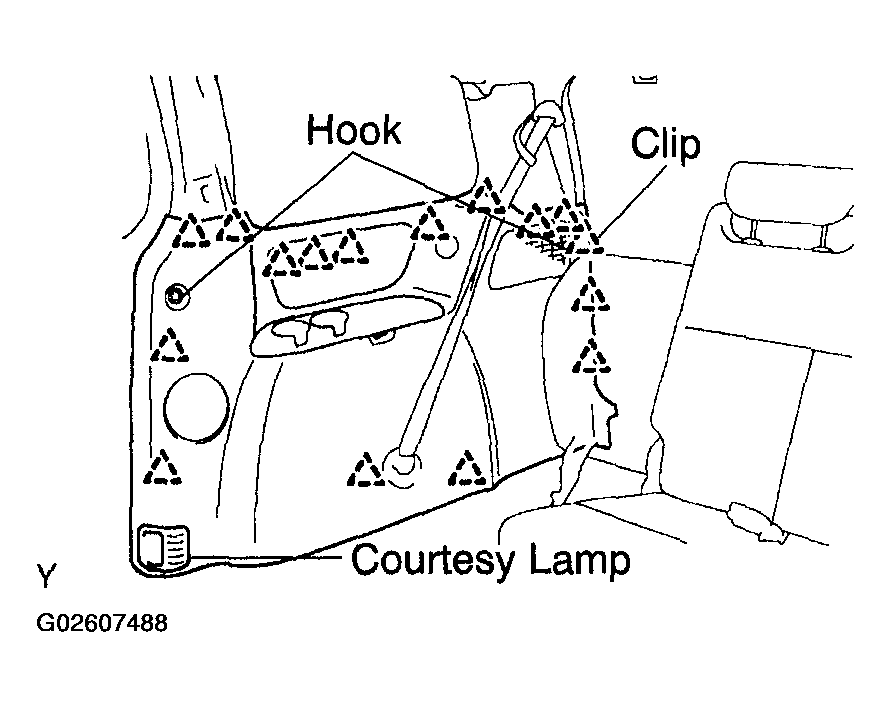

REMOVE QUARTER TRIM PANEL ASSY FRONT RH
1. Remove the floor anchor cover.
2. Remove the bolt and disconnect the rear No. 2 seat belt on the floor anchor side.

  Fig 9: Removing Floor Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 package holder net hooks.
4. Using a screwdriver, disengage the claw and remove the courtesy lamp.
5. Disconnect the courtesy lamp connectors.
6. Using a screwdriver, disengage the 16 clips and remove the quarter trim panel assy.
HINT:

Tape the screwdriver tip before use.
REMOVE QUARTER TRIM PANEL ASSY FRONT LH

Fig 10: Removing 2 Package Holder Net Hooks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

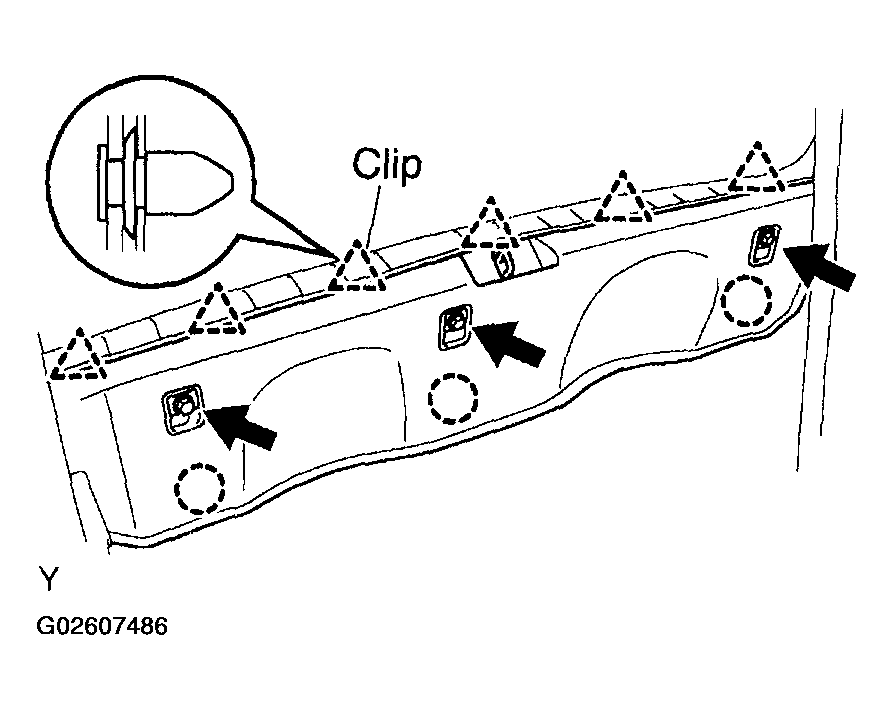

REMOVE ROOF HEADLINING GARNISH REAR
1. Using a screwdriver, disengage the 6 clips and remove the headlining garnish.
HINT:

Tape the screwdriver tip before use.

Fig 11: Disengaging 6 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

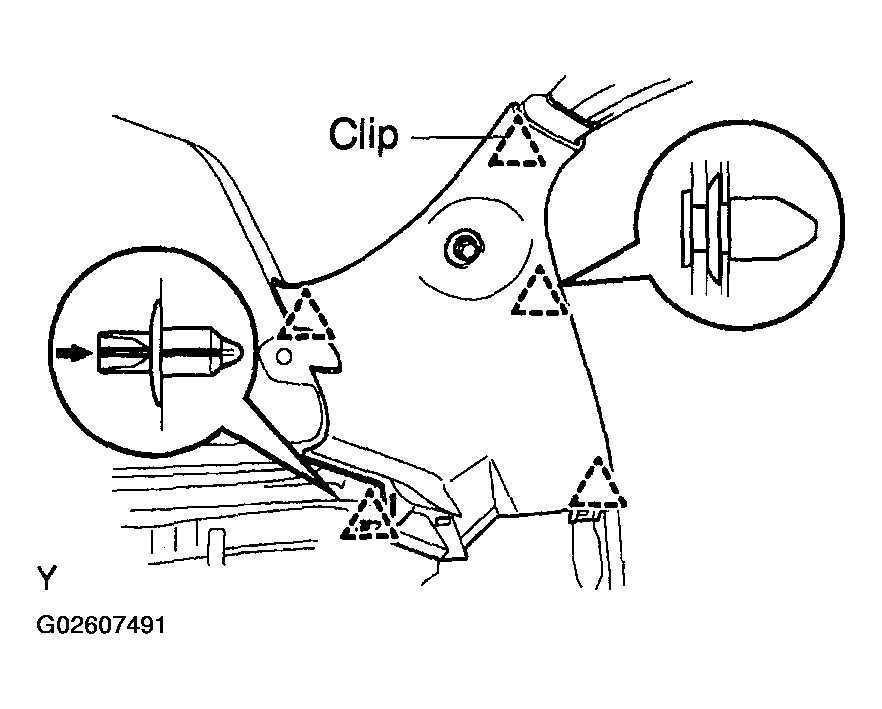

REMOVE RR WINDOW SIDE GARNISH ASSY NO.2 RH
1. Using a screwdriver, disengage the 2 claws and remove the cover of the rear No. 2 seat belt on the shoulder anchor side.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt and disconnect the rear No. 2 seat belt assy on the shoulder anchor side.

  Fig 12: Disengaging 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, disengage the 5 clips and remove the side garnish.
HINT:

Tape the screwdriver tip before use.

Fig 13: Disengaging 5 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RR WINDOW SIDE GARNISH ASSY NO.2 LH
1. w/ power back door:
  Using a screwdriver, disengage the 2 clips and remove the window side garnish assy.
HINT:

Tape the screwdriver tip before use.

Fig 14: Disengaging 2 Clips And Removing Window Side Garnish Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

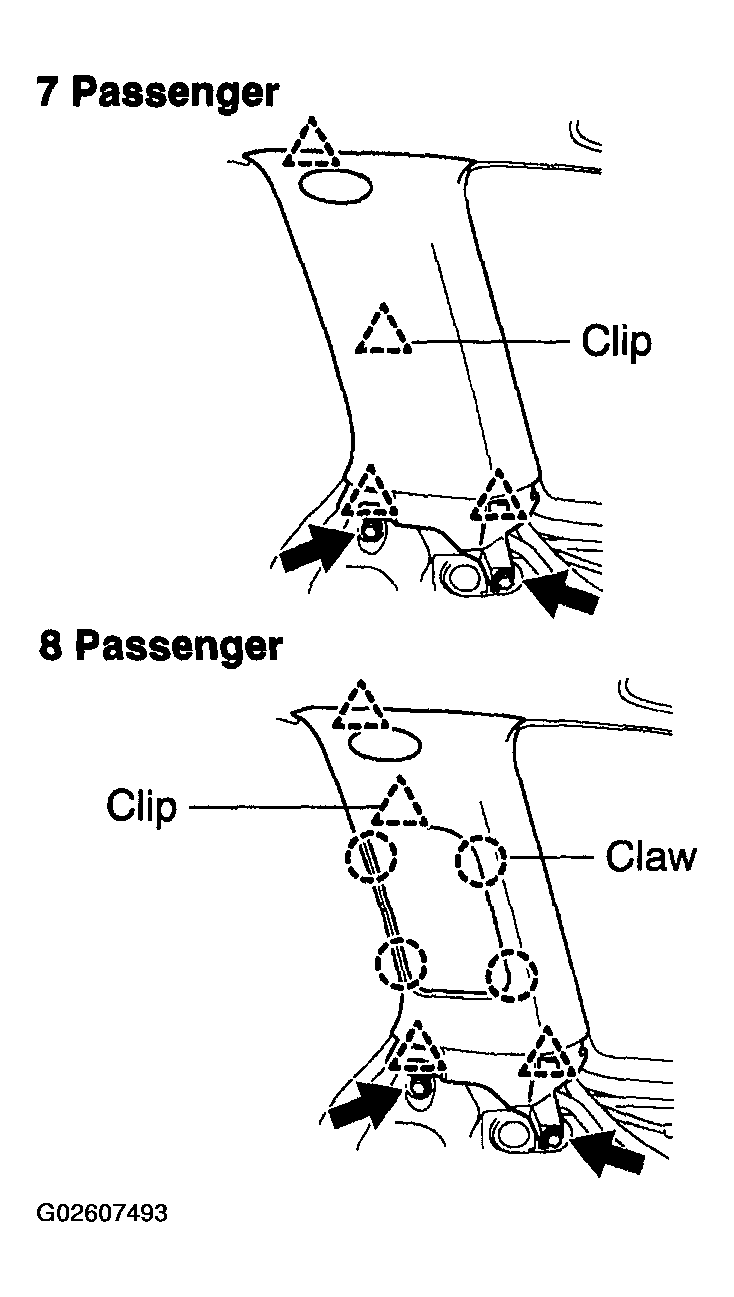

REMOVE RR WINDOW SIDE GARNISH ASSY RH
1. Remove the bolt and screw.
2. 7-passenger:
  Using a screwdriver, disengage the 4 clips and remove the window side garnish assy.

  HINT:

  Tape the screwdriver tip before use.
3. 8-passenger:
  Using a screwdriver, disengage the 4 clips and 4 claws, and remove the window side garnish assy.
HINT:

Tape the screwdriver tip before use.
REMOVE RR WINDOW SIDE GARNISH ASSY LH

Fig 15: Disengaging 4 Clips And 4 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH RH
1. w/ curtain shield airbag:
  Using a screwdriver, disengage the cover of the pillar garnish and bolt.

  HINT:

  Tape the screwdriver tip before use.

  Fig 16: Disengaging Cover Of Pillar Garnish And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 3 clips and claw and remove the pillar garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 17: Disengaging 3 Clips And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the garnish upward and remove it from the instrument panel.

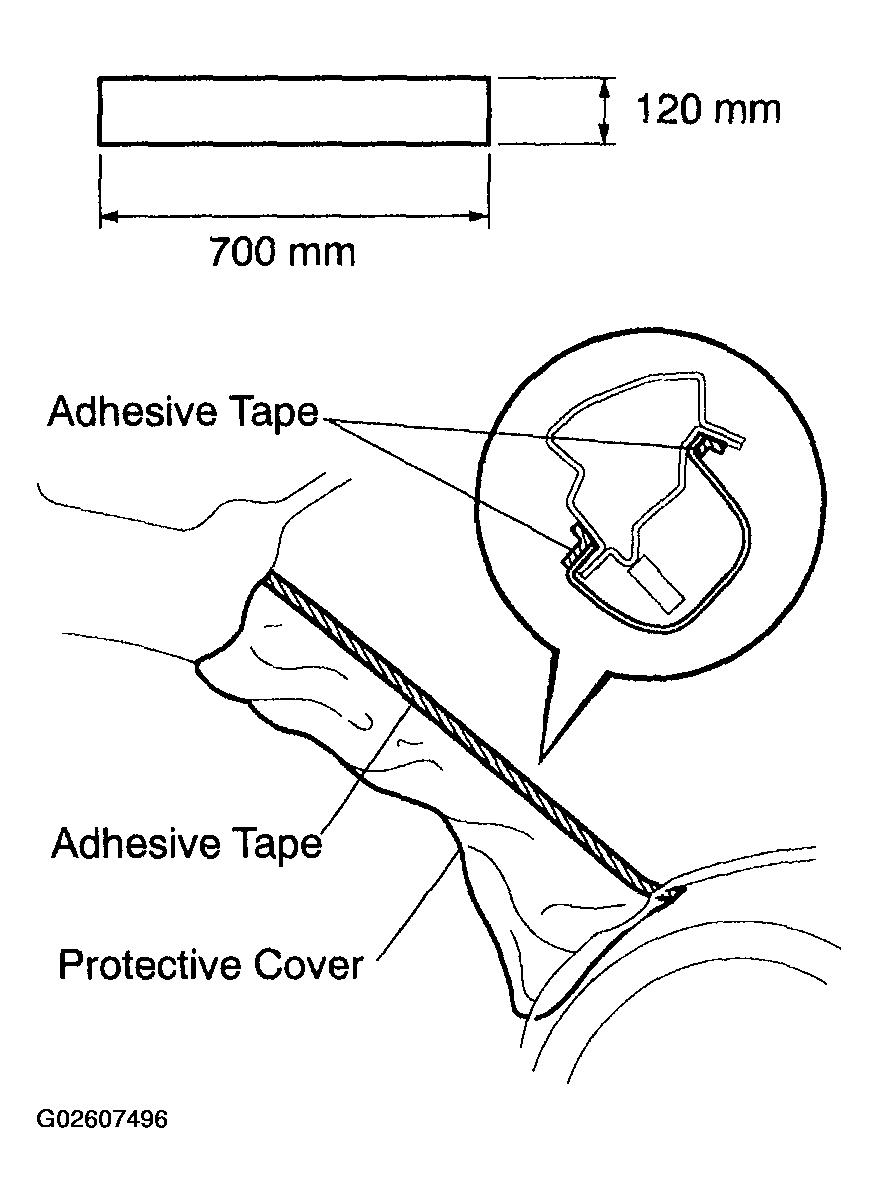

4. w/ curtain shield airbag:
  Protect the curtain shield airbag LH.
  1. Thoroughly cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
NOTE: Cover the curtain shield airbag with the protection cover as soon as the pillar garnish is removed.
REMOVE FRONT PILLAR GARNISH LH

Fig 18: Identifying Adhesive Tape
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RH VISOR ASSY
1. Using a screwdriver, disengage the 2 claws and remove the visor cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 3 screws and visor.
REMOVE LH VISOR ASSY

Fig 19: Removing 3 Screws And Visor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VISOR HOLDER
1. Remove the screw and visor holder.
Fig 20: Removing Screw And Visor Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

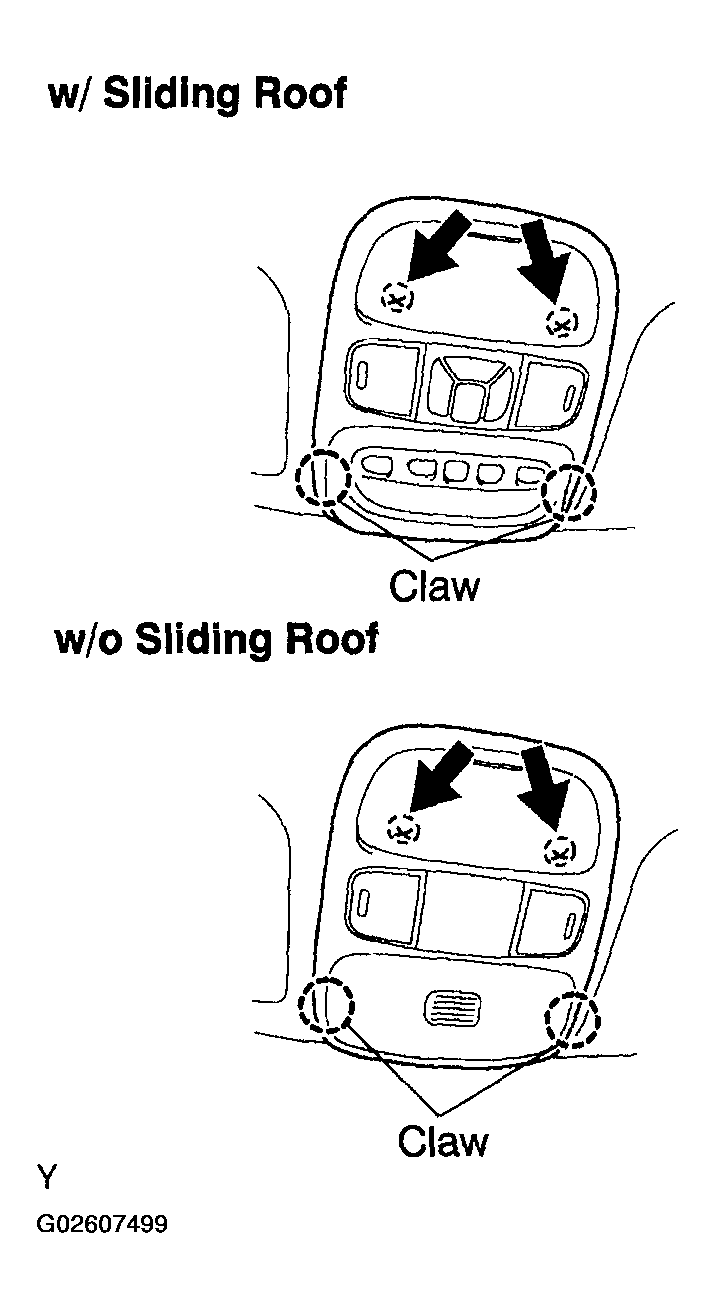

REMOVE ROOF CONSOLE BOX ASSY
1. Remove the 2 screws and console box assy.
2. Using a moulding remover, disengage the 2 claws.
3. Disconnect the map lamp switch connector and sliding roof switch connector and remove the console box.
Fig 21: Removing 2 Screws And Console Box Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ASSIST GRIP SUB-ASSY
1. Using a screwdriver, disengage the claw and remove the assist grip cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the Torx®, screw and assist grip sub-assy.
Fig 22: Disengaging Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF CONSOLE BOX
1. Remove the 2 Torx® screws, 2 screws and roof console box.
Fig 23: Removing 2 Torx® Screws, 2 Screws And Roof Console Box
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

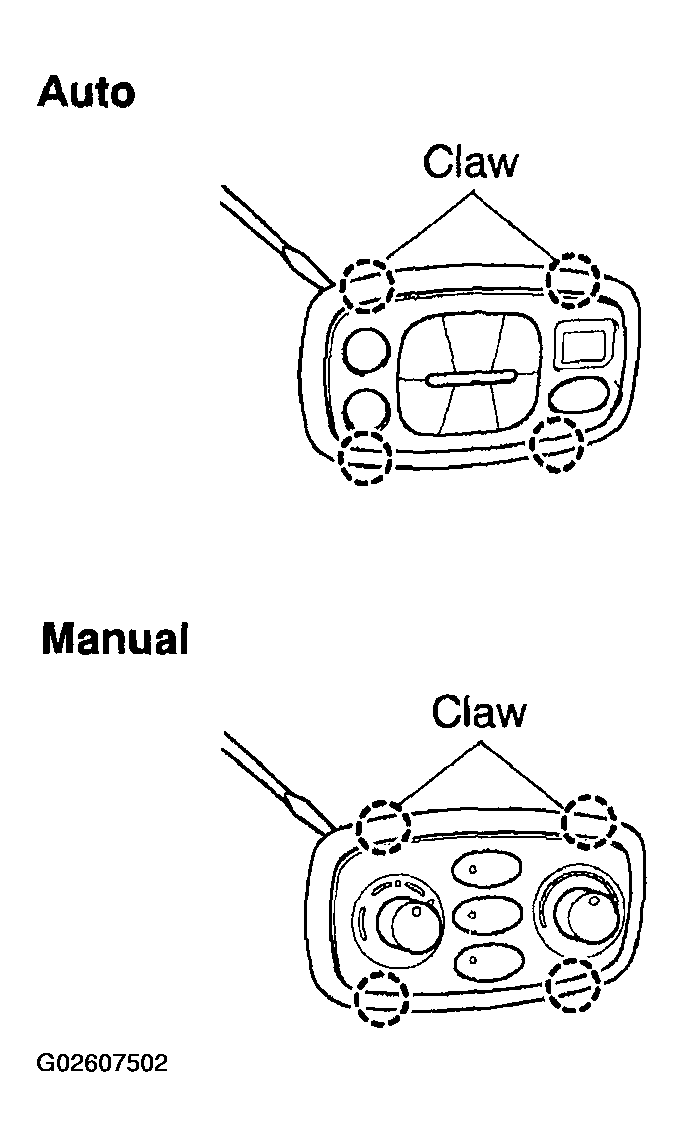

REMOVE AIR CONDITIONING NO.2 CONTROL ASSY
1. Using a screwdriver, disengage the 4 claws and remove the heater control base.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the No. 2 control assy.
3. Disconnect the No. 2 control connector.
Fig 24: Disengaging 4 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR OUTLET REGISTER ASSY NO.1
1. Using a screwdriver, disengage the 2 claws, and remove the cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt, screw and air outlet register.
Fig 25: Disengaging 2 Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR OUTLET REGISTER ASSY NO.2
REMOVE AIR DUCT REGISTER ASSY NO.3
REMOVE AIR OUTLET REGISTER ASSY NO.4
REMOVE SUN ROOF OPENING TRIM MOULDING (W/ SLIDING ROOF)

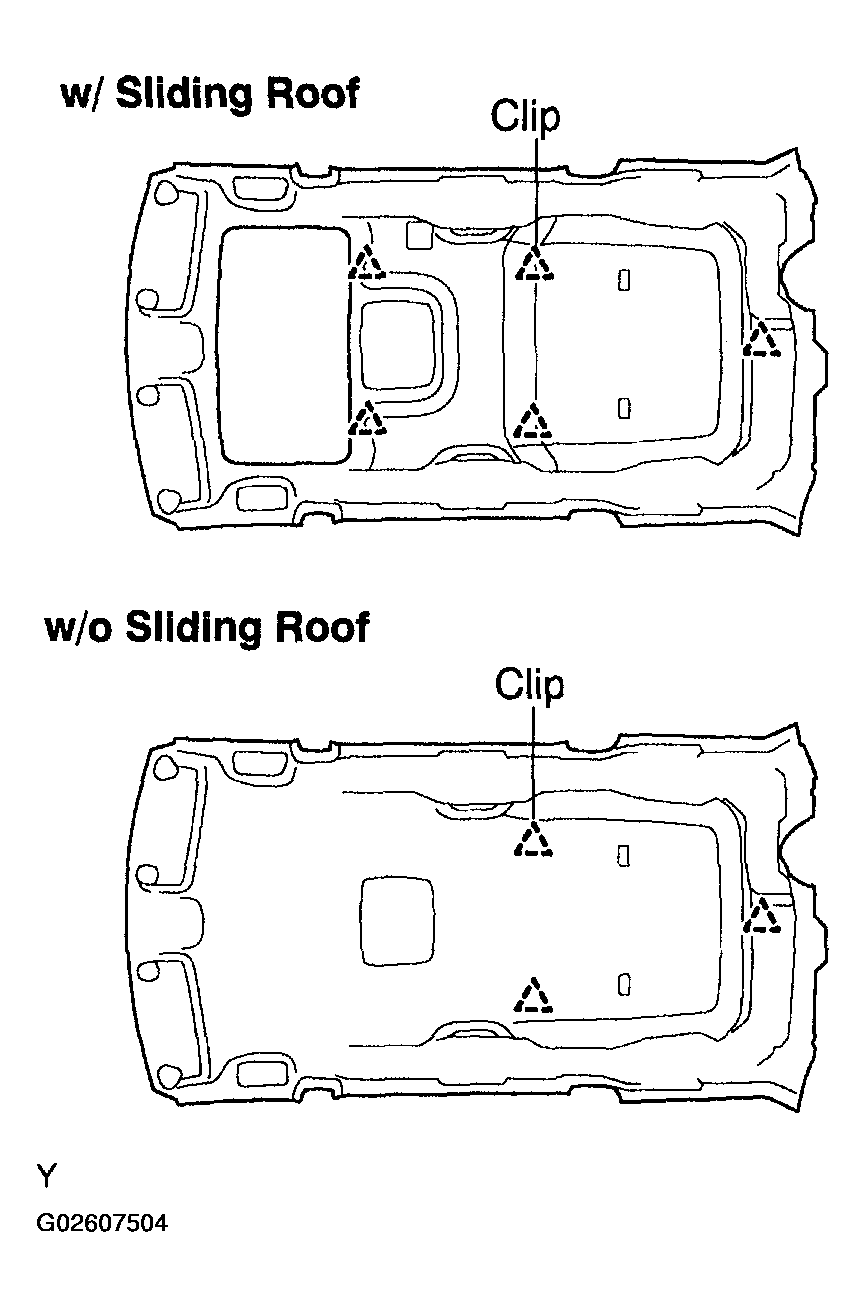

REMOVE ROOF HEADLINING ASSY
1. w/ sliding roof:
  Using a clip remover, disengage the 5 clips and remove the roof headlining assy.
2. w/o sliding roof:
  Using a clip remover, disengage the 3 clips and remove the roof headlining assy.
NOTE: In order to prevent the roof headlining from becoming bent, work must be performed by 2 or more persons when removing/installing it.

Fig 26: Disengaging 5 Clips And Removing Roof Headlining Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSY
1. w/ sliding roof:
  Install the roof headlining with the 5 clips.
2. w/o sliding roof:
  Install the roof headlining with the 3 clips.
NOTE: In order to prevent the roof headlining from becoming bent, work must be performed by 2 or more persons when removing/installing it.

Fig 27: Installing Roof Headlining With 3 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

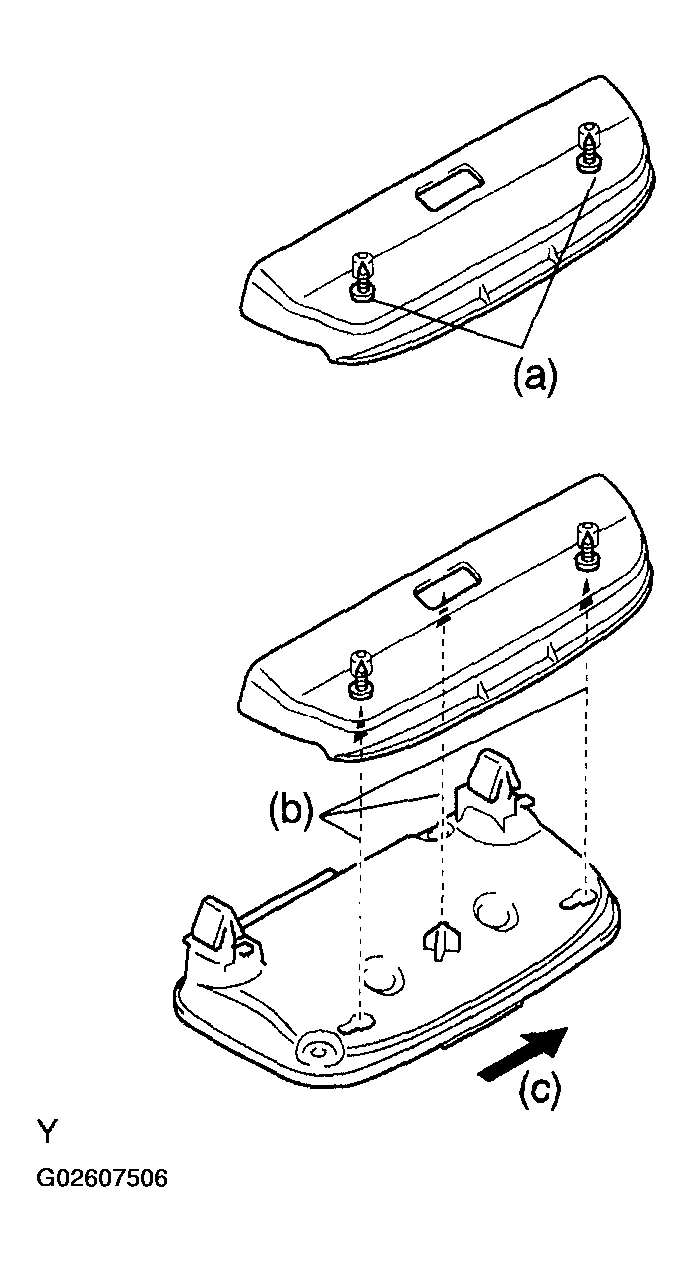

INSTALL ROOF CONSOLE BOX
1. Temporarily install the 2 screws to the retainer.
2. Set the console box, as shown in the illustration.
3. Slide the console box in the direction indicated by the arrow mark in the illustration so that the screws can meet the keyholes.
4. Tighten the 2 screws.
5. Tighten the 2 Torx® screws.
Fig 28: Tightening 2 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
