Front Door Belt Moulding ASSY LH: Replacement

HINT:

• The installation is in the reverse order of the removal.
• Use the same procedures on the RH side as on the LH side.

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (See  OVERHAUL  )
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH RH (See  OVERHAUL  )
3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG RH (See  OVERHAUL  )
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY RH (See  OVERHAUL  )
5. REMOVE OUTER REAR VIEW MIRROR ASSY RH (See  OVERHAUL  )
6. REMOVE FRONT DOOR BELT MOULDING ASSY RH
   1. Put protective tape under the moulding.
   2. Using a moulding remover, disengage the claws and remove the moulding.

      HINT:

      Tape the remover tip before use.

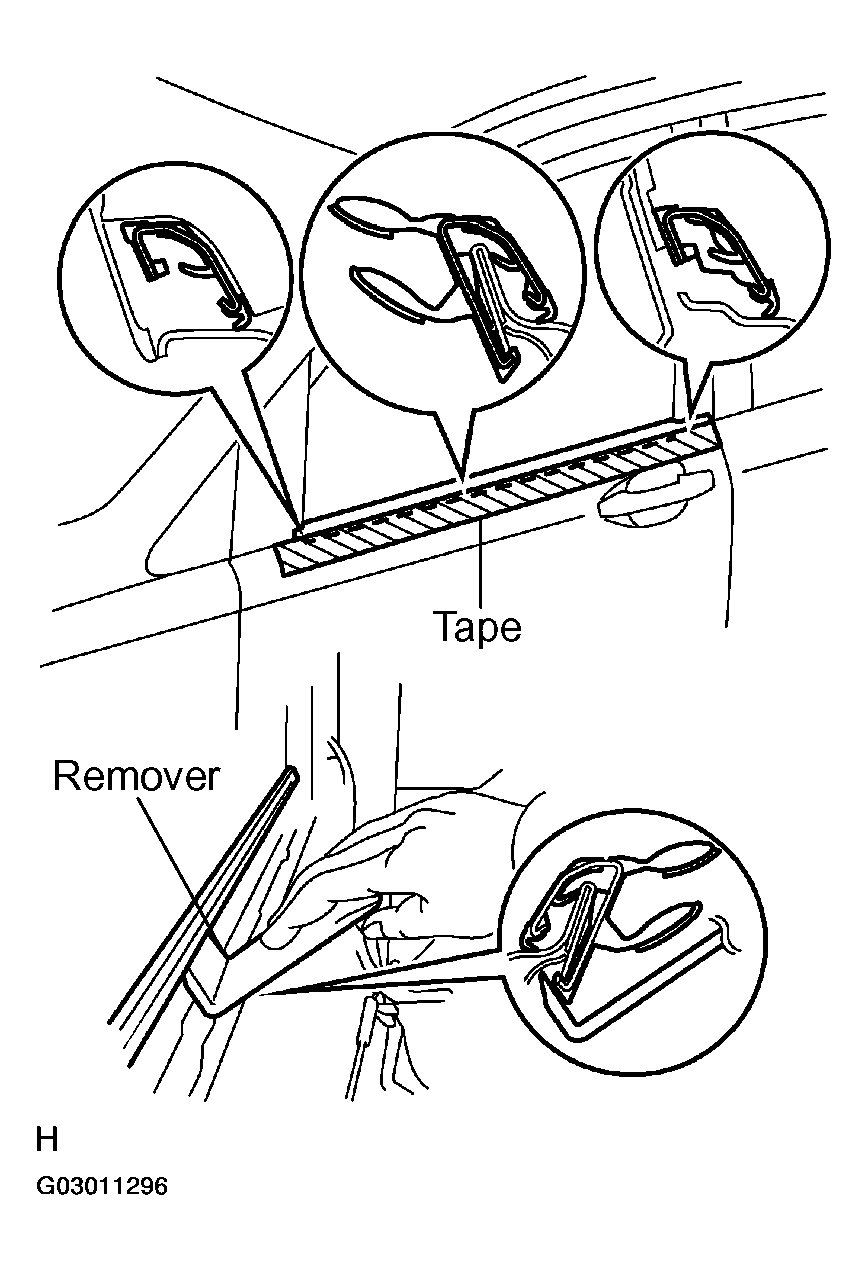

      Fig 1: Putting Front Door Belt Moulding Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
