Rear Bumper (Exterior Body Panels): Components

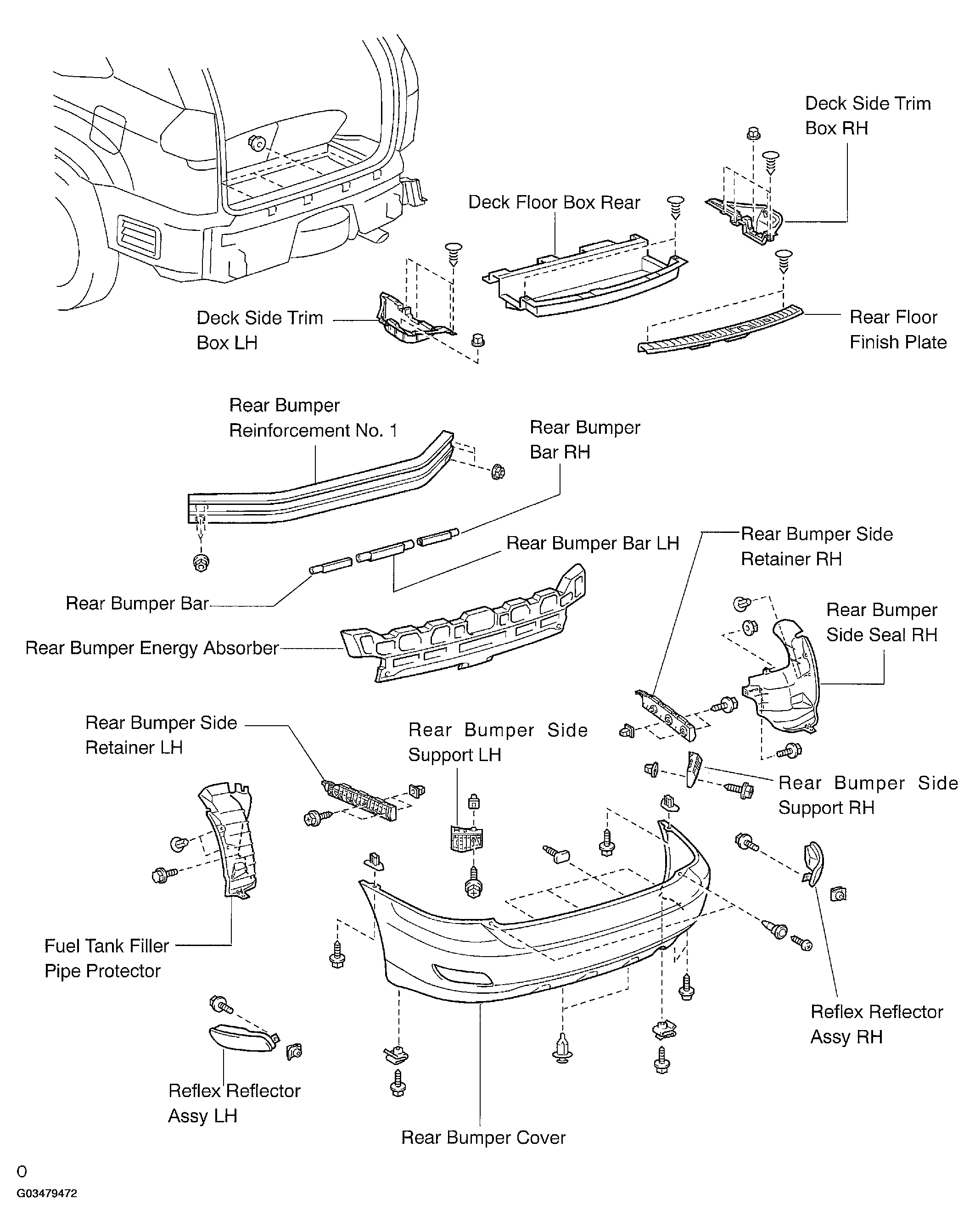

Fig 1: Identifying Rear Bumper Components

G03479472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
