Gauges & Instrument Panels
>>
Combination Meter - Diagnosis
>>
Operating Light Control Rheostat Does Not Change Light Brightness
>>
Wiring Diagram
Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

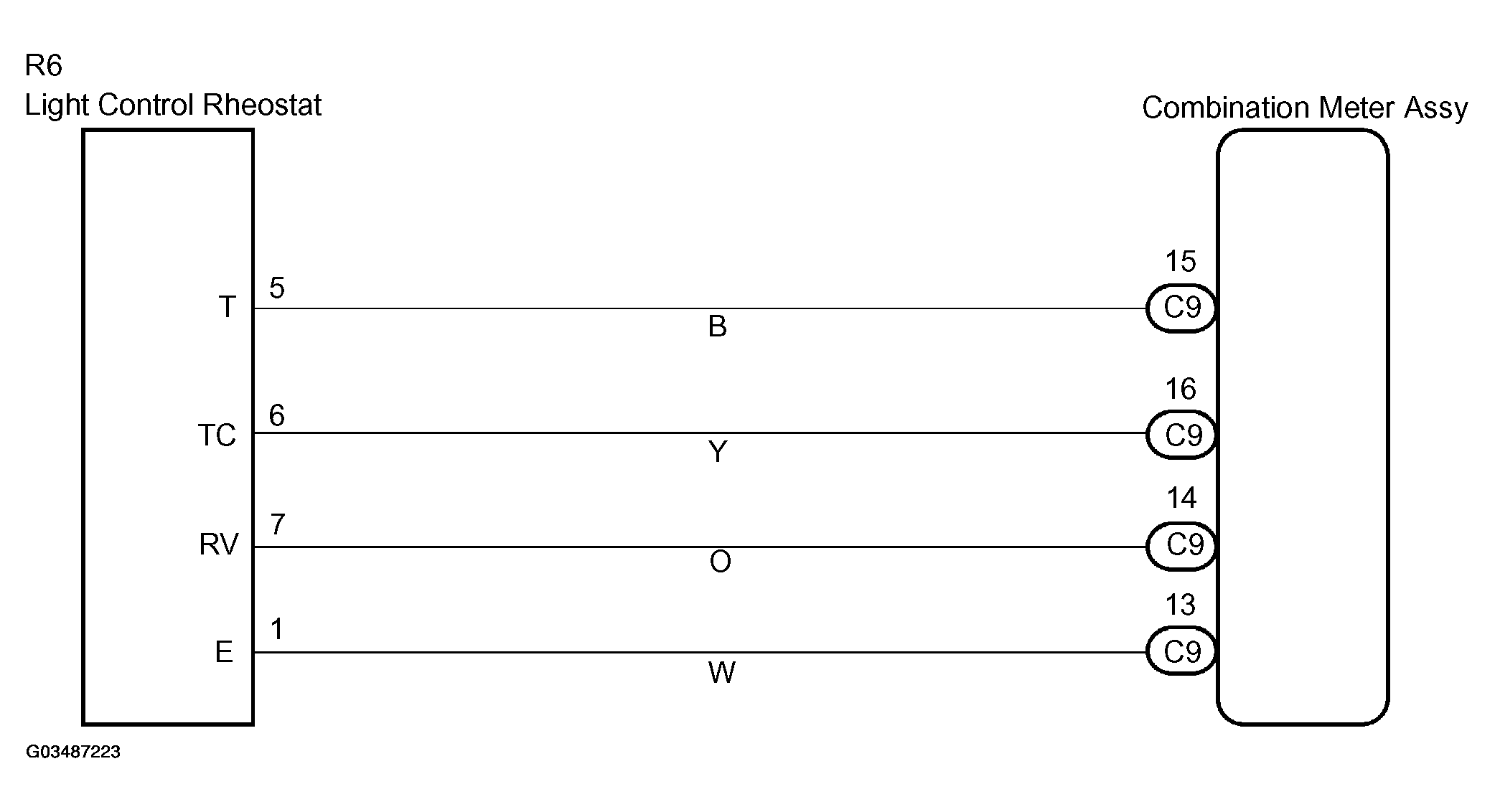

Fig 1: Wiring Diagram - Light Control Rheostat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
