Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

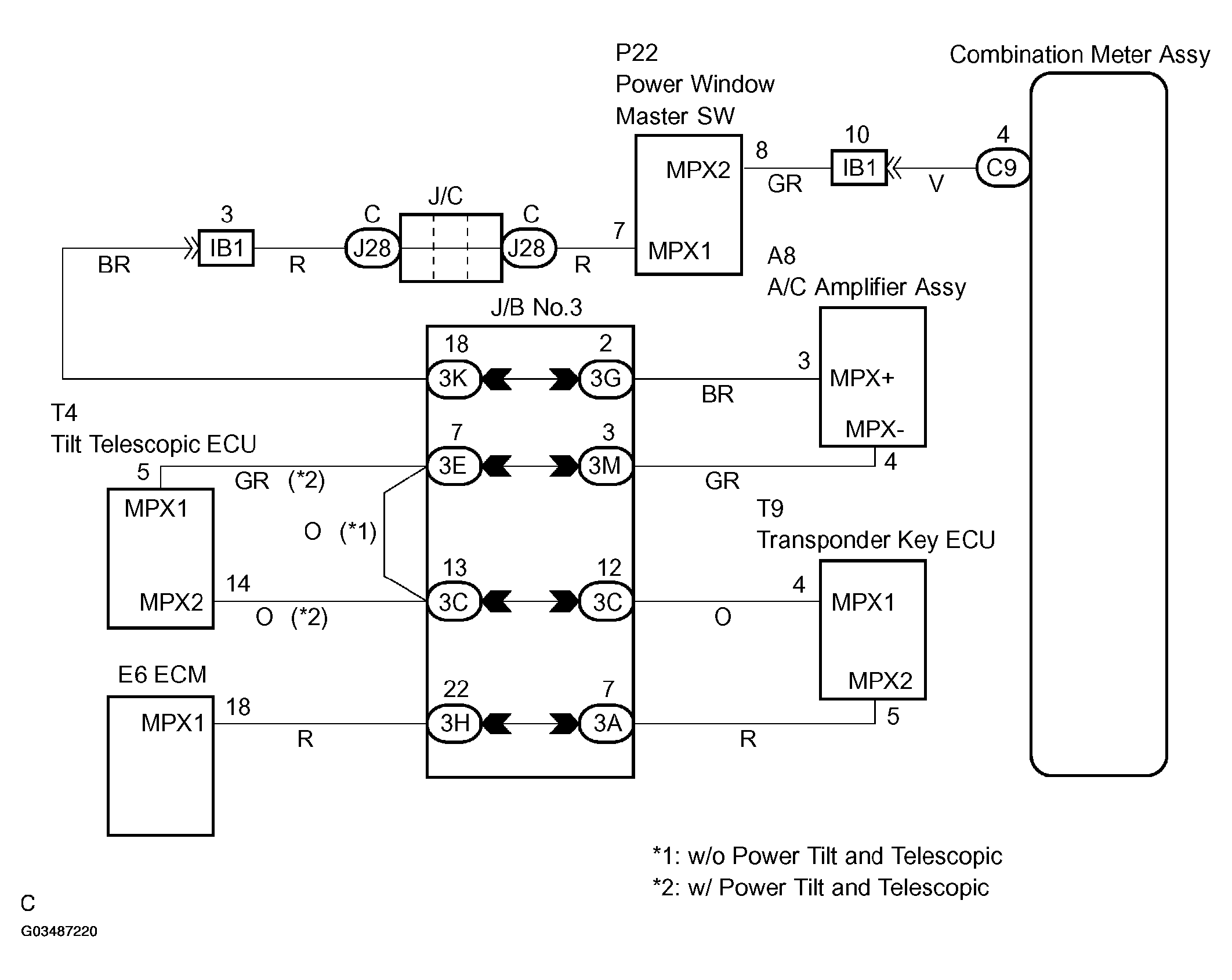

Fig 1: Wiring Diagram - Water Temperature Receiver Gauge

G03487220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
