Malfunction In Tachometer: Wiring Diagram

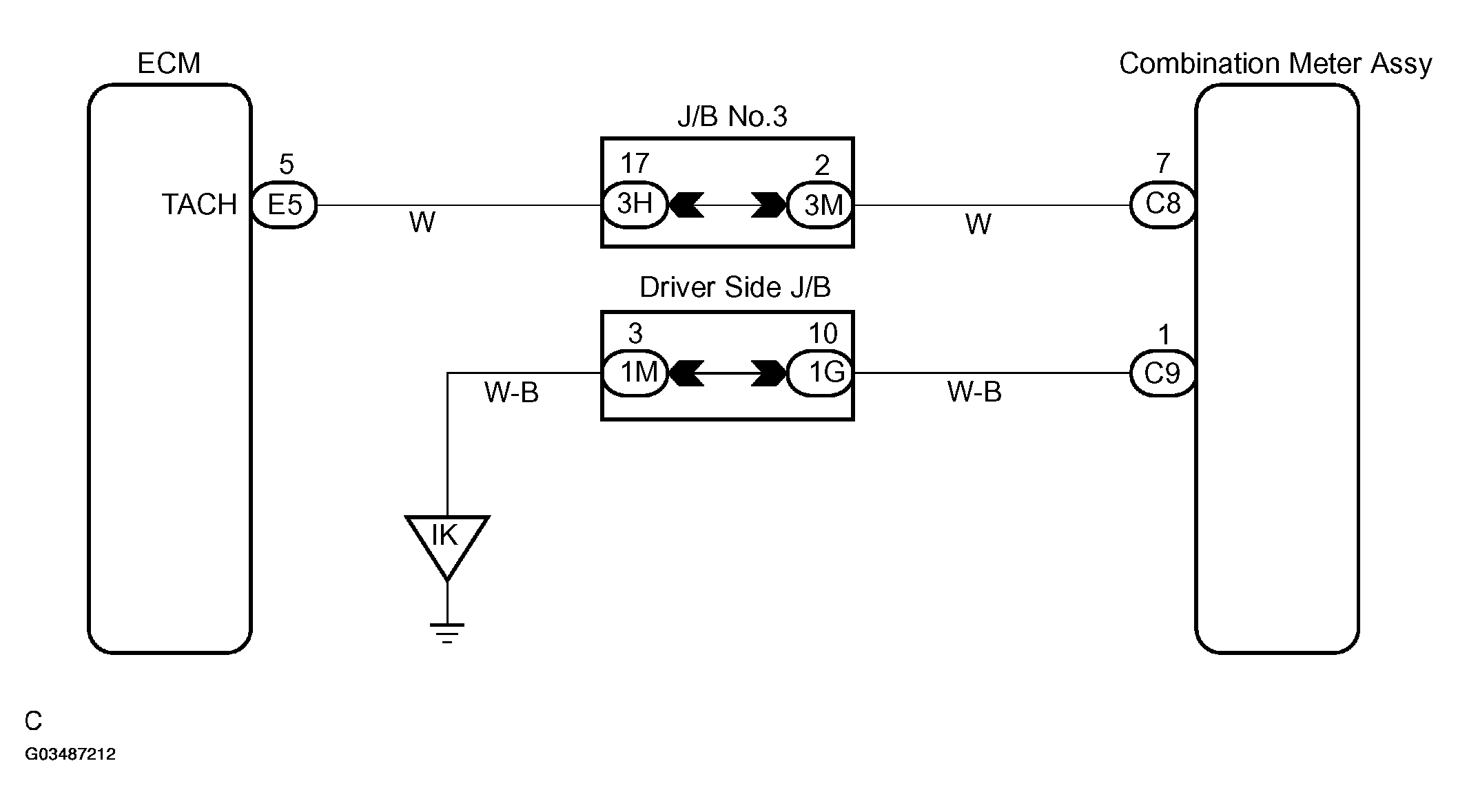

Fig 1: Wiring Diagram - Tachometer

G03487212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
