Malfunction In Speedometer: Wiring Diagram

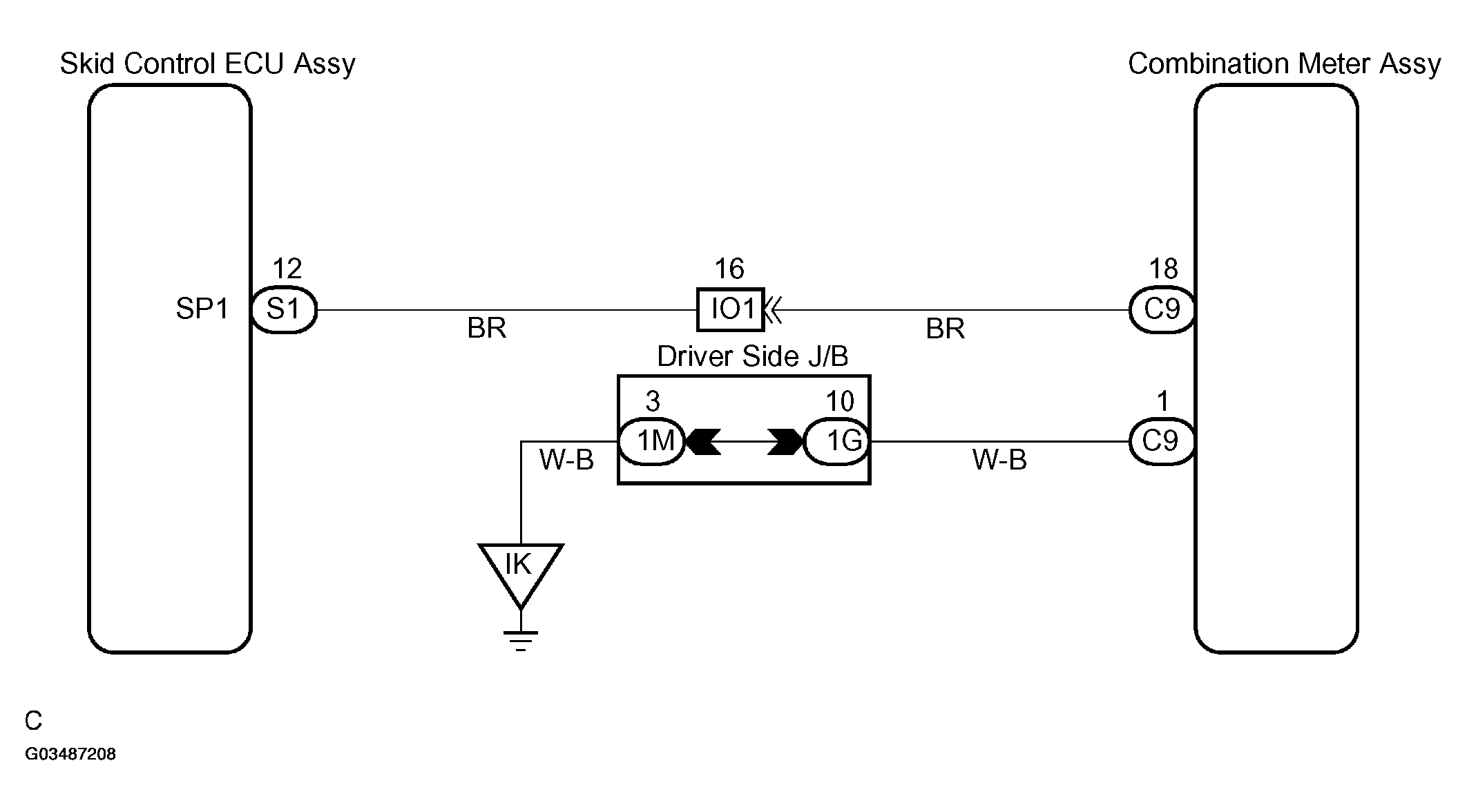

Fig 1: Wiring Diagram - Speedometer

G03487208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
