Combination Meter - Diagnosis: Location

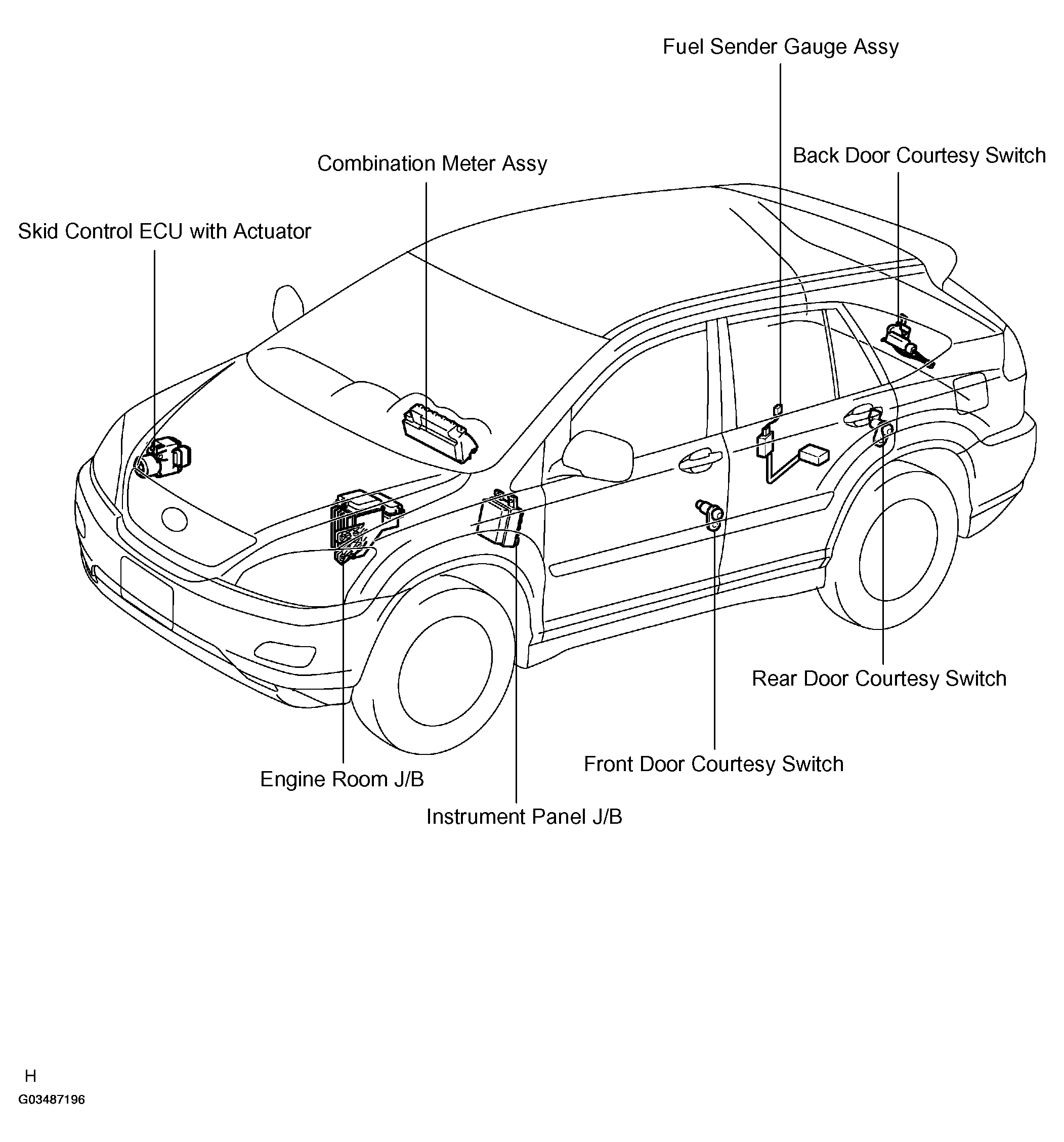

Fig 1: Identifying Combination Meter Related Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

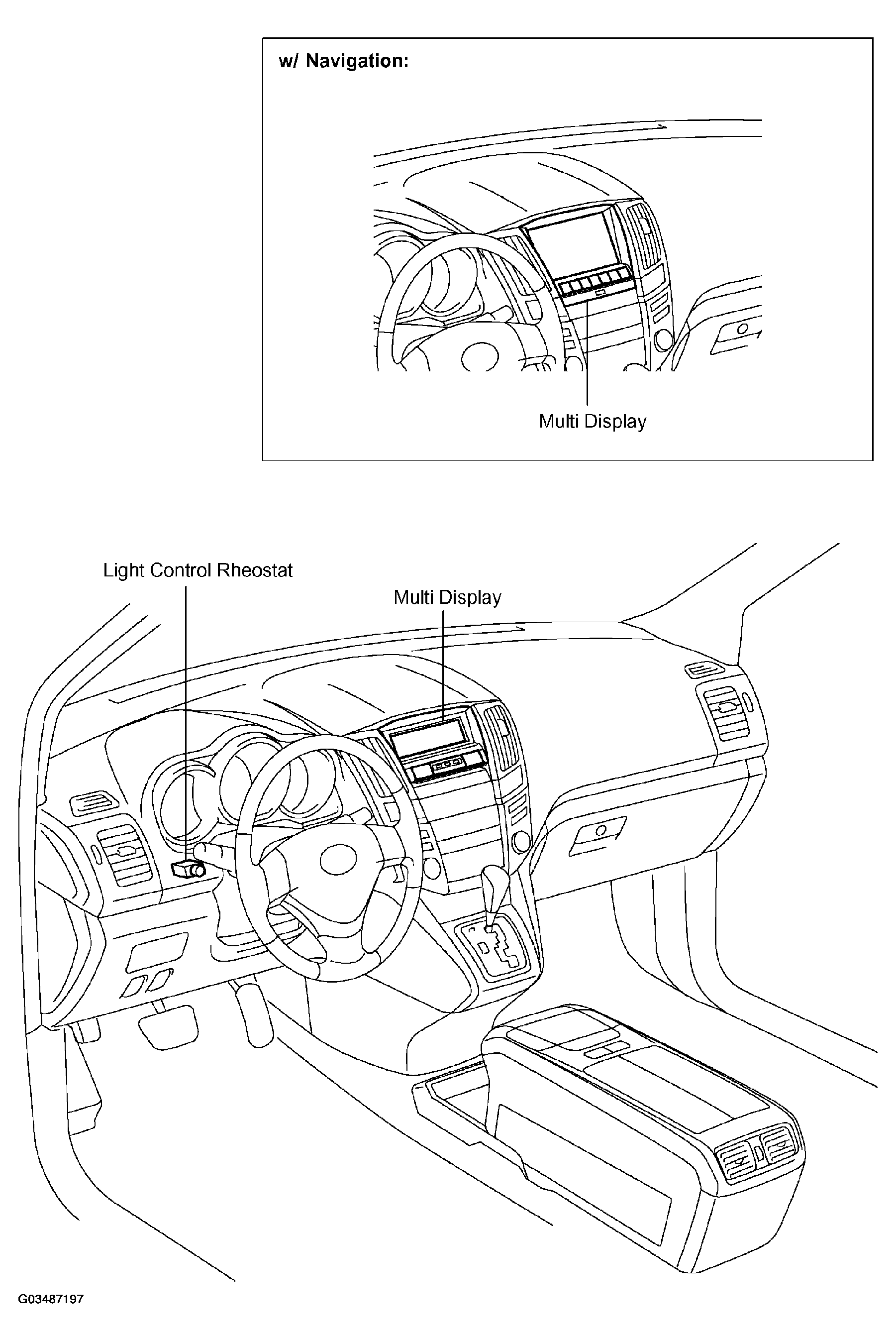

Fig 2: Identifying Multi Display And Light Control Rheostat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

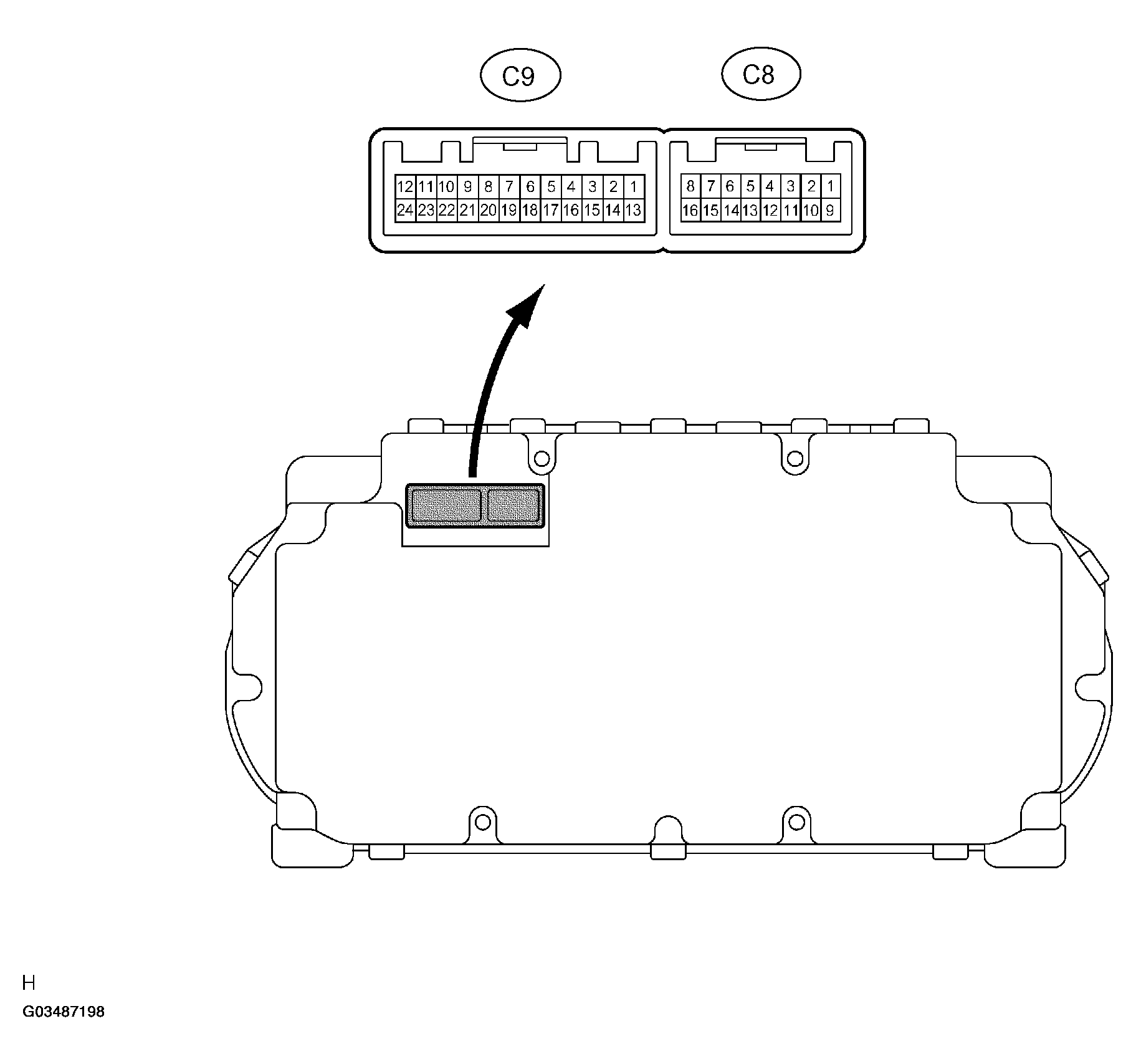

Fig 3: Identifying Combination Meter Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

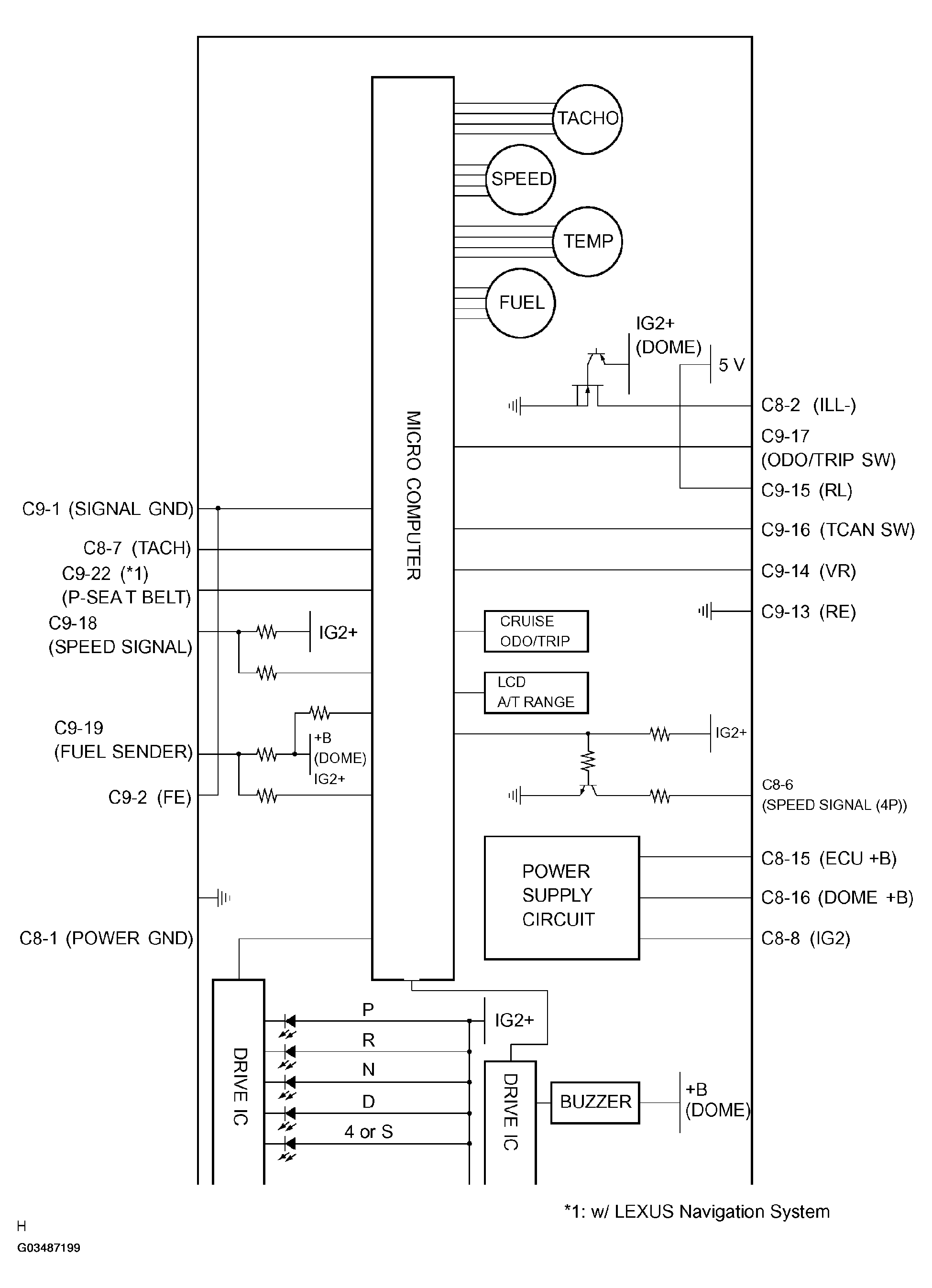

Fig 4: Circuit Diagram - Combination Meter (1 Of 2)

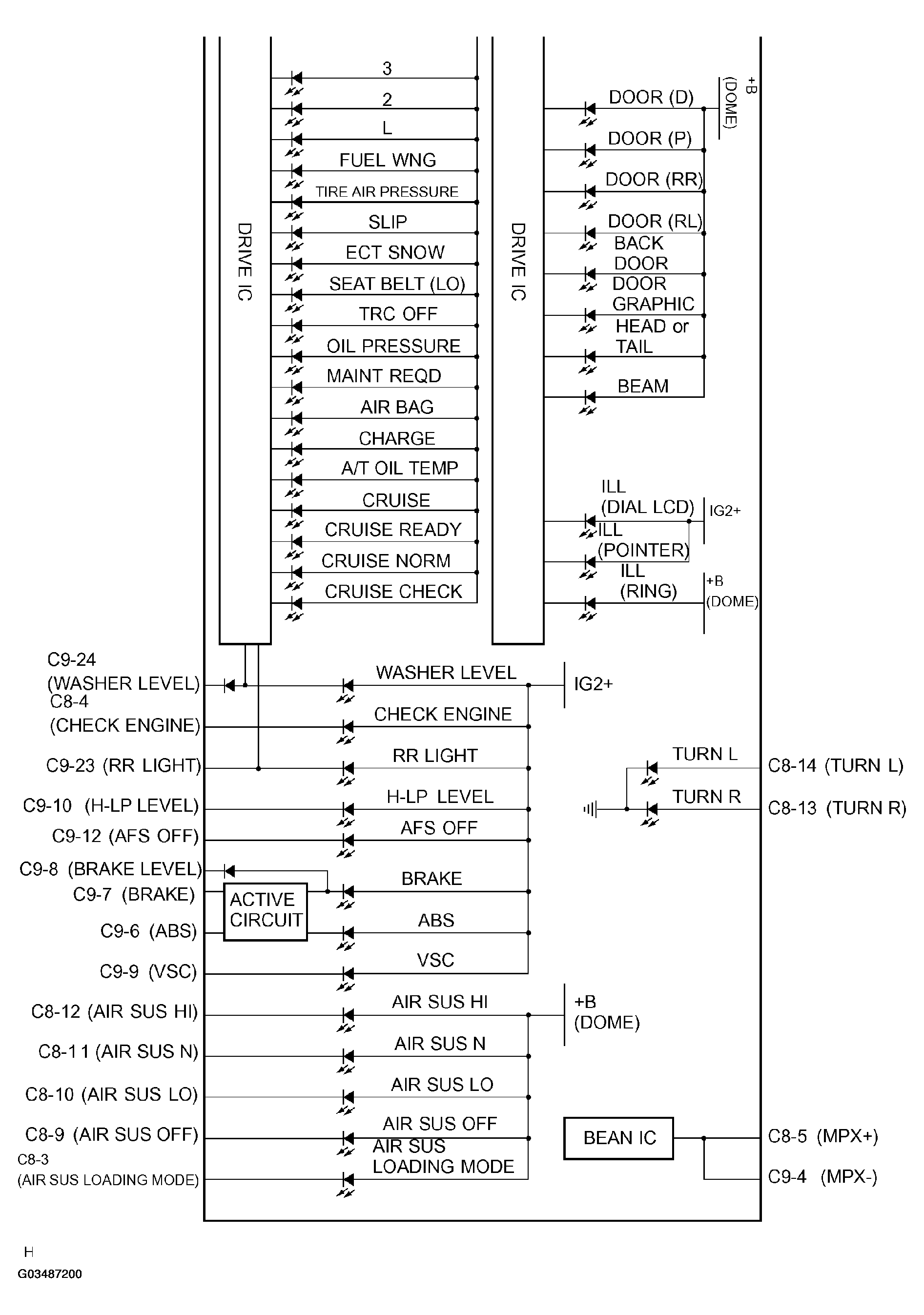

Fig 5: Circuit Diagram - Combination Meter (2 Of 2)

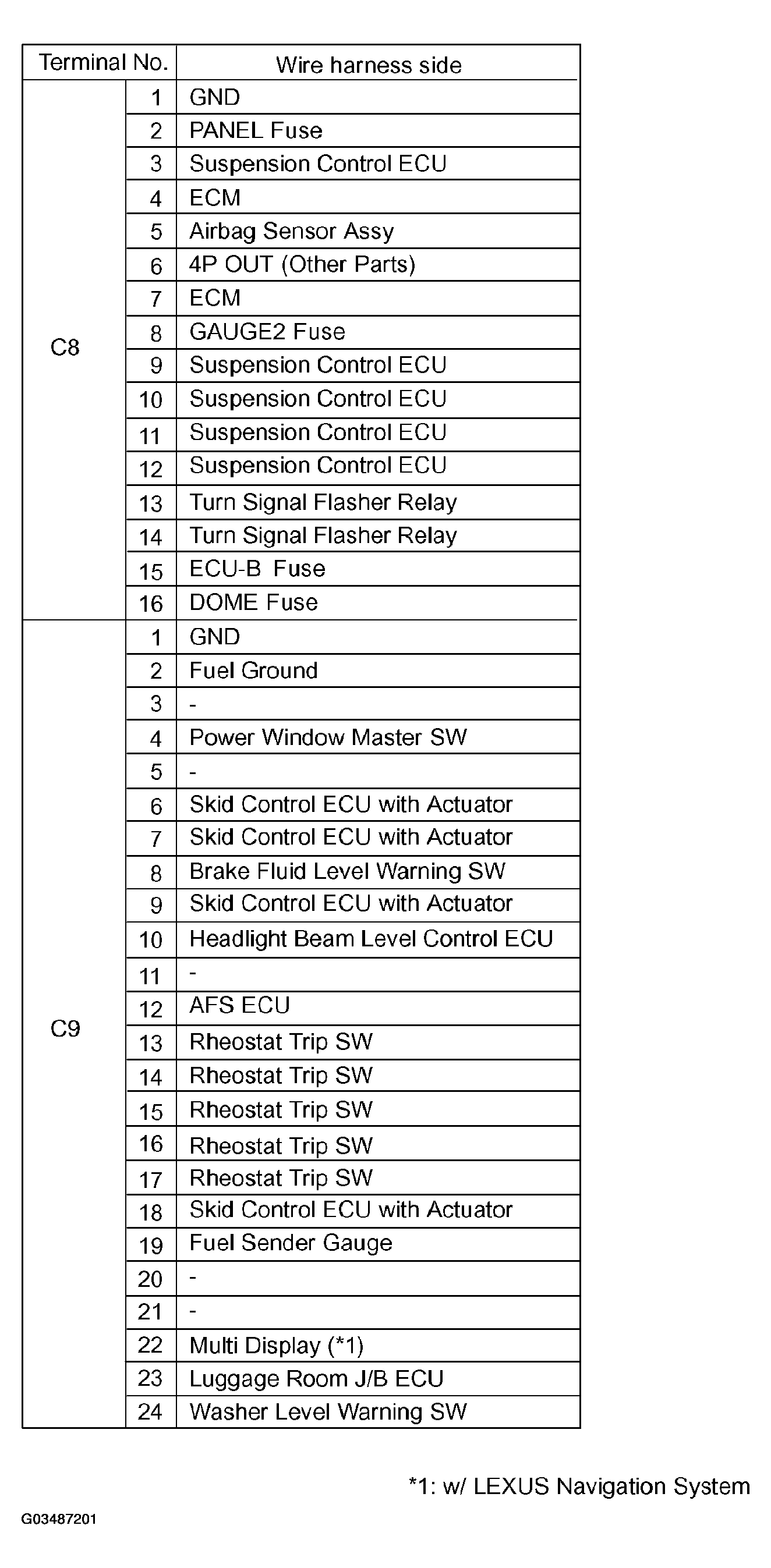

Fig 6: Combination Meter Terminals Description Chart
