Lexus
>>
2004
>>
RX 330 AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Combination Meter - Diagnosis
>>
Entire Combination Meter Does Not Operate
>>
Wiring Diagram
Entire Combination Meter Does Not Operate: Wiring Diagram

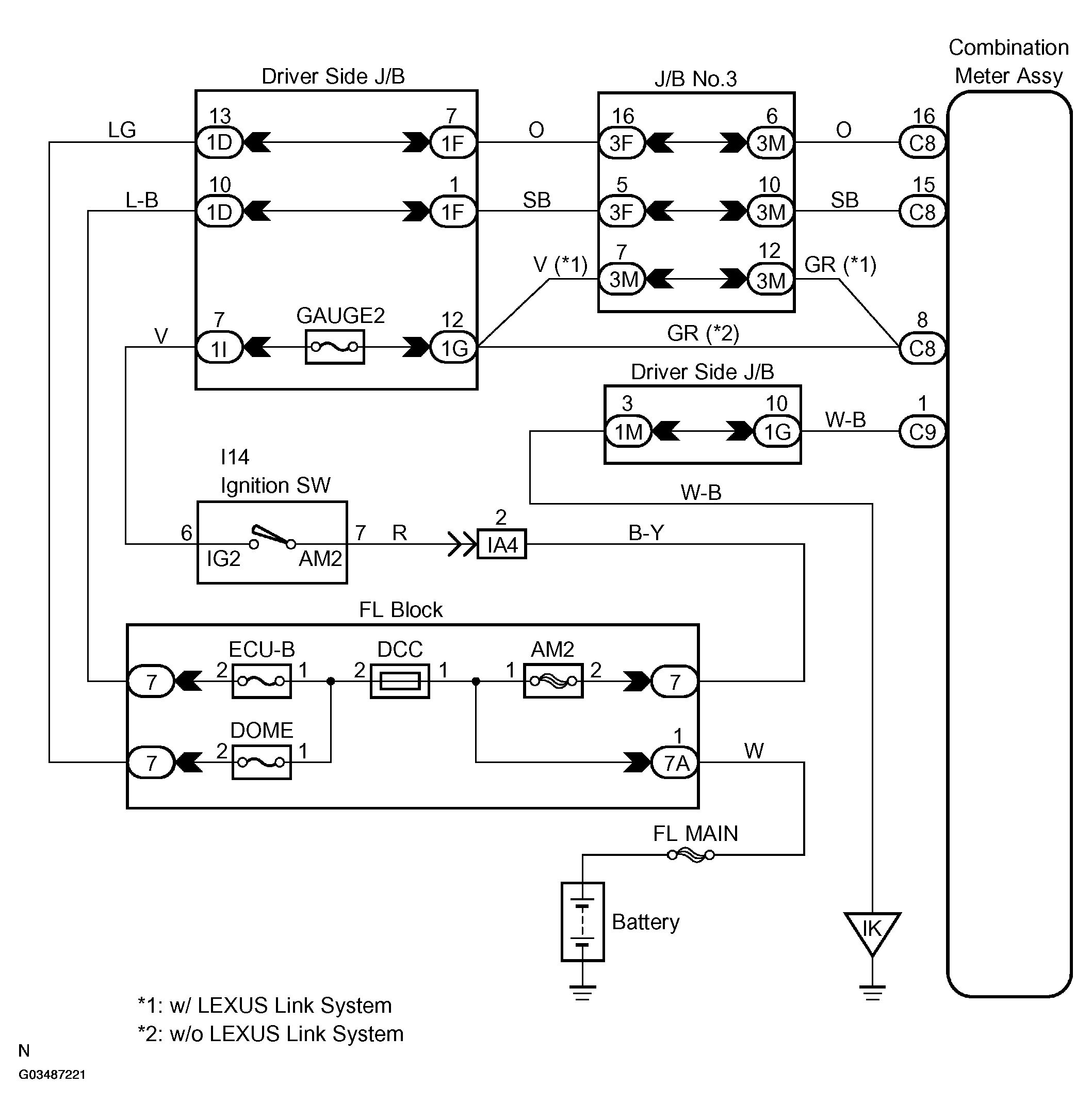

Fig 1: Wiring Diagram - Combination Meter (Entire Combination Meter Not Operating)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
