Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Headlight & Taillight System >> Location

Headlight & Taillight System: Location

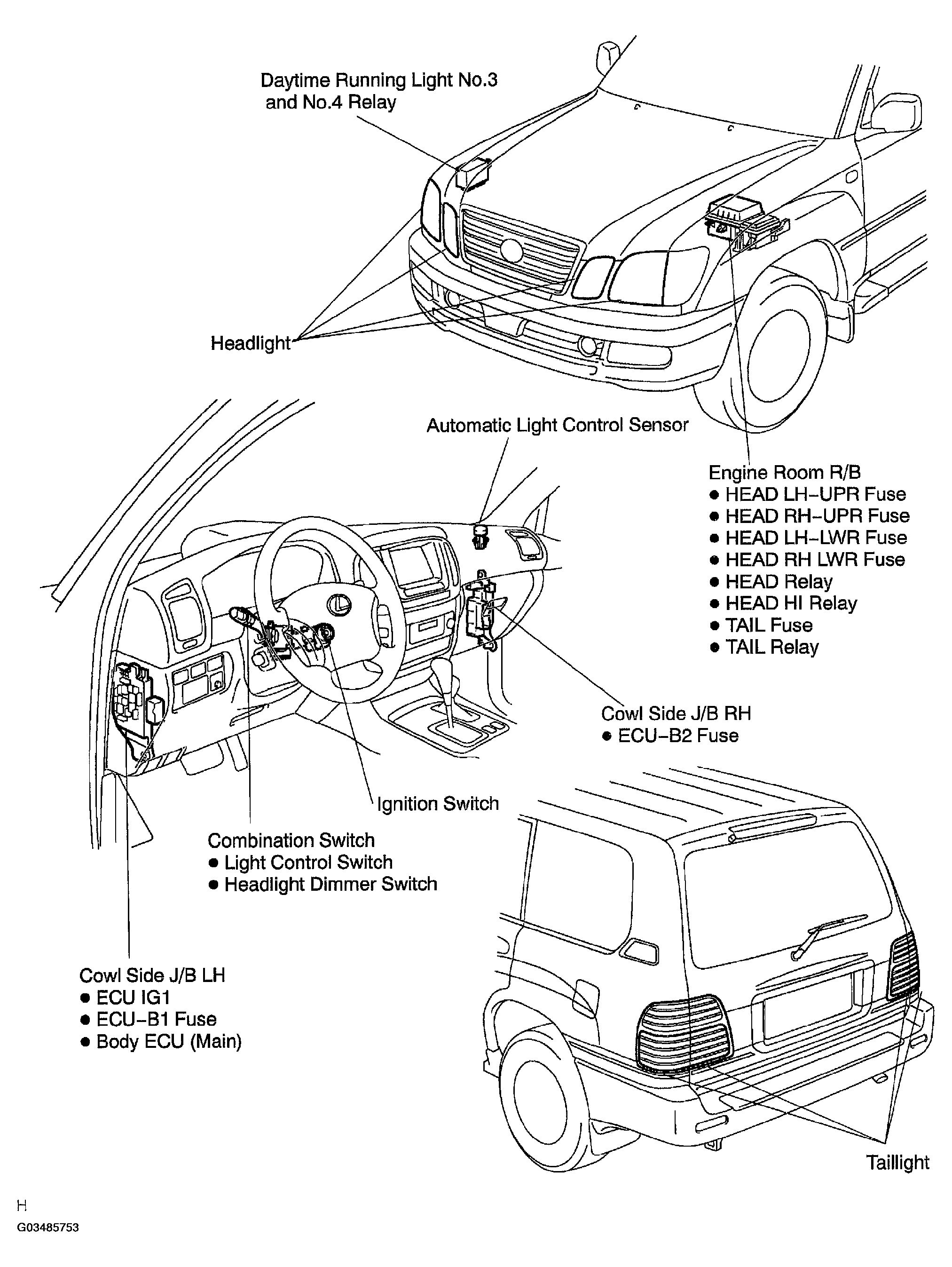

Fig 1: Locating Headlight & Taillight System Components (1 Of 2)

G03485753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
