Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Turn Signal & Hazard Warning System >> Location

Turn Signal & Hazard Warning System: Location

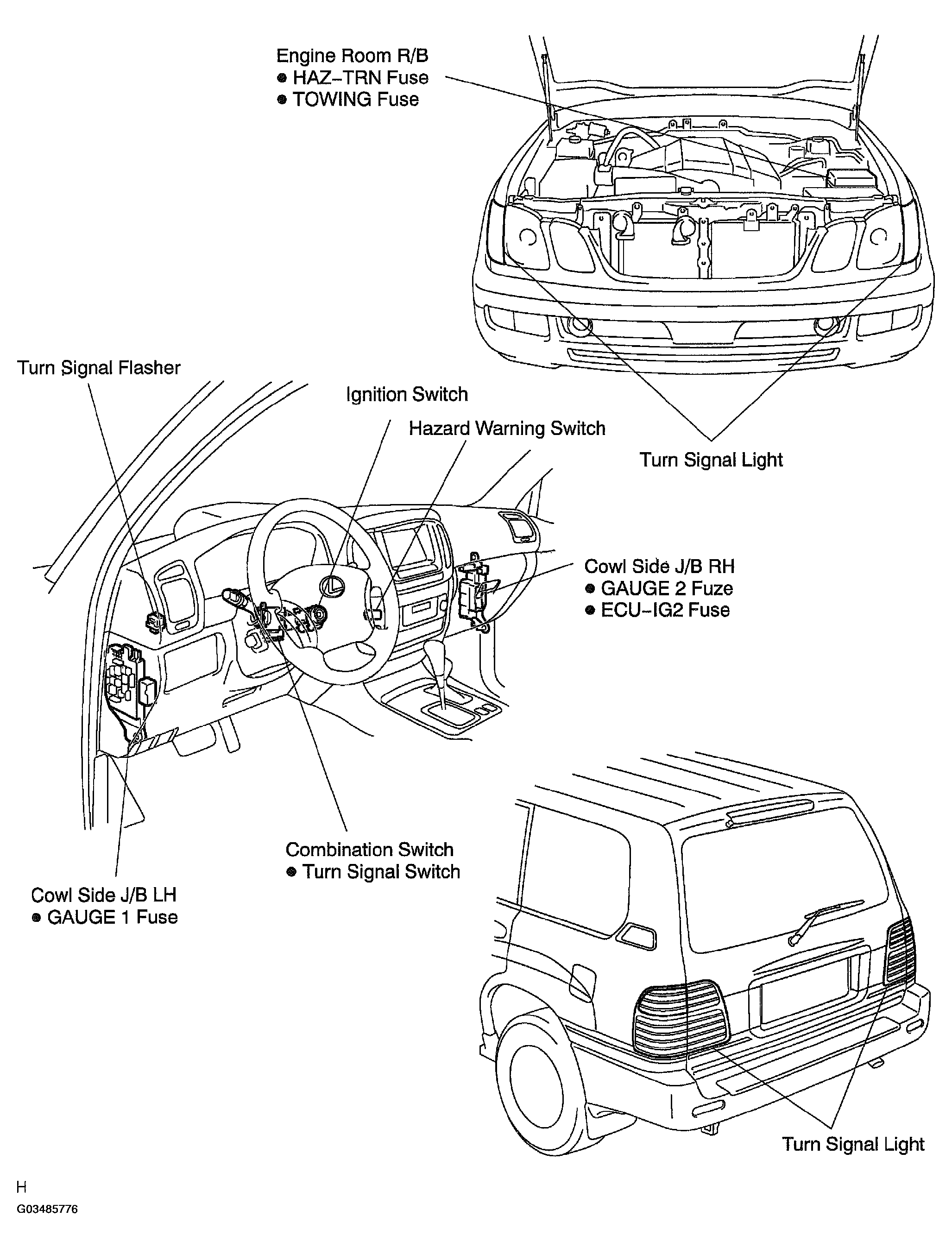

Fig 1: Locating Turn Signal & Hazard Warning System Components

G03485776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
