How To Proceed With Troubleshooting

HINT:

This ECU is connected to the multiplex communications system. Therefore, be sure to check that there is no troubles in the multiplex communications system before performing the trouble shooting.

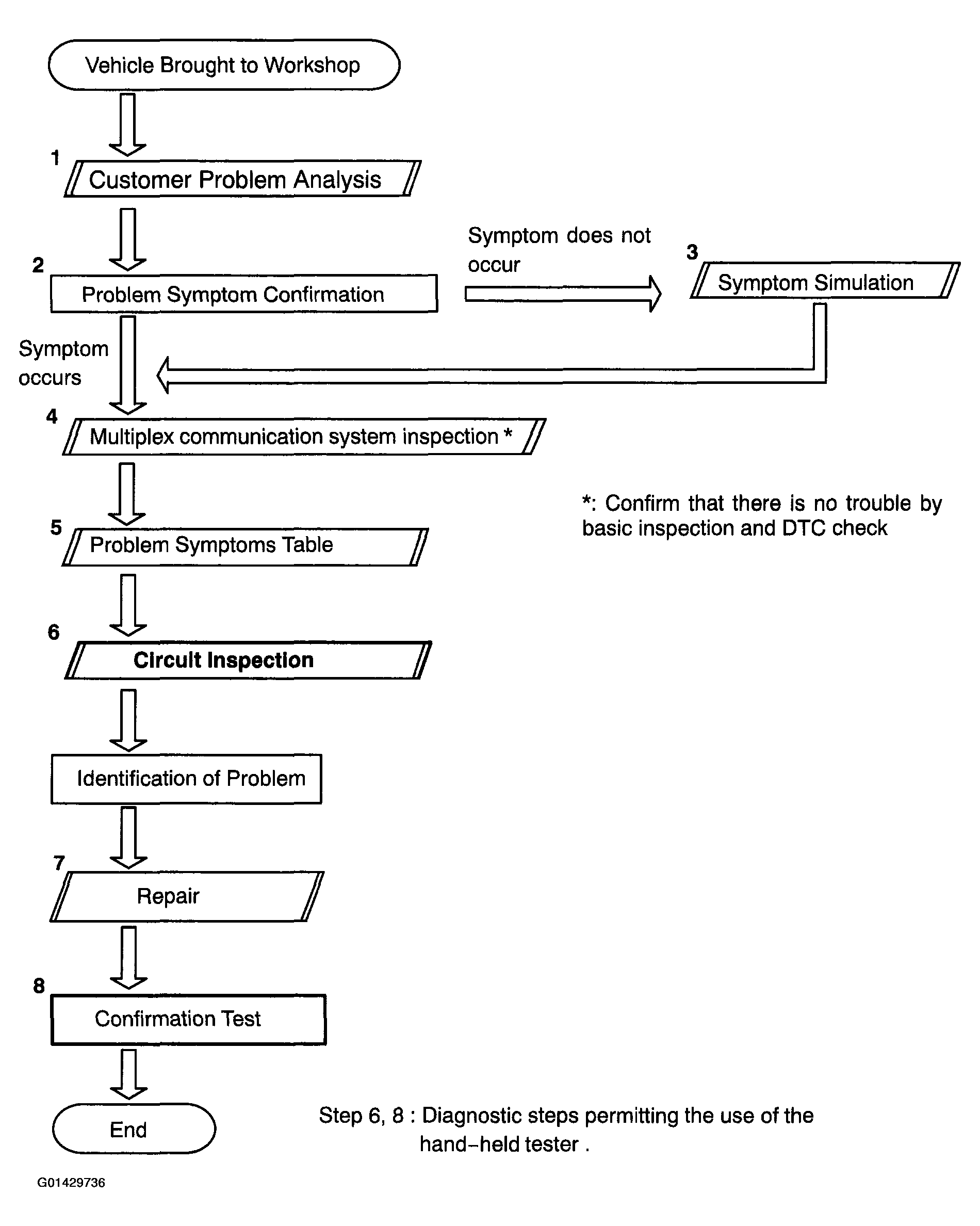

Fig 1: Troubleshooting Flow Chart
G01429736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
