Parking Brake Shoe Clearance

  1. Temporarily install lug nuts.
  2. Remove parking brake adjuster access plug.
  3. Turn adjuster and expand shoes until disc locks. See Fig 1.
  4. Back off adjuster 7 notches.
  5. Install access plug.

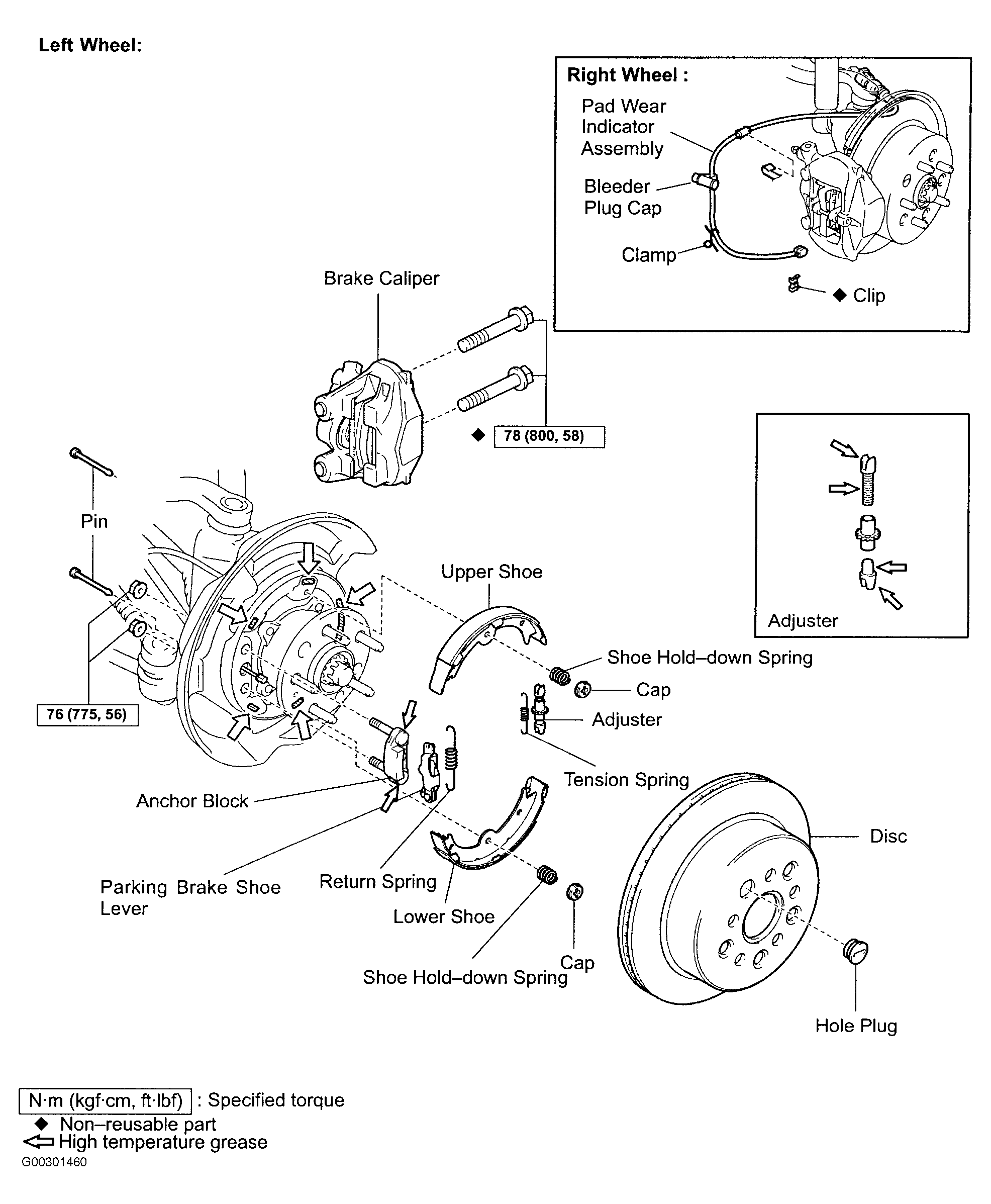

Fig 1: Parking Brake Assembly
G00301460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
