Typical Enabling Conditions

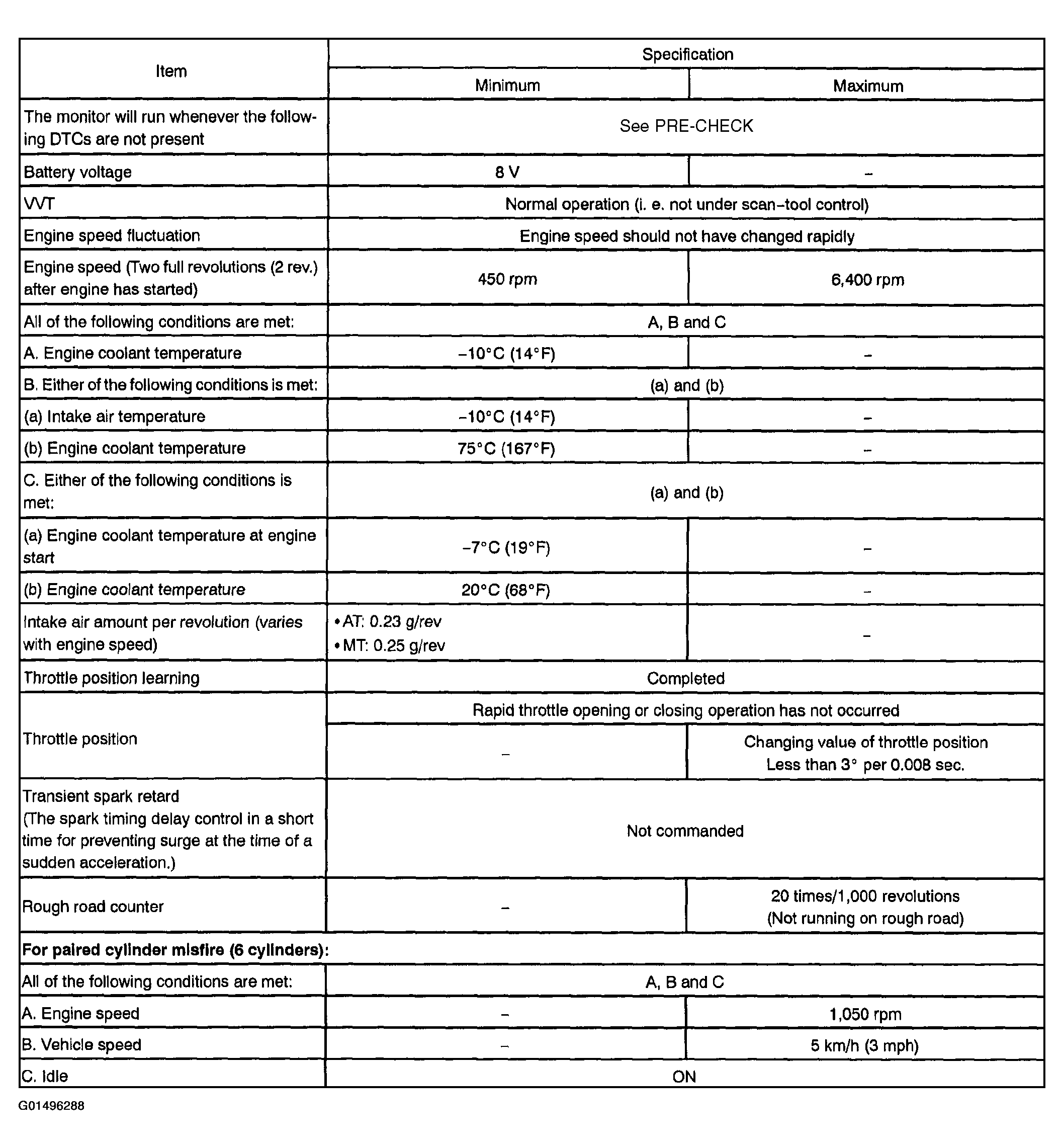

Fig 1: Typical Enabling Conditions Chart
G01496288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
