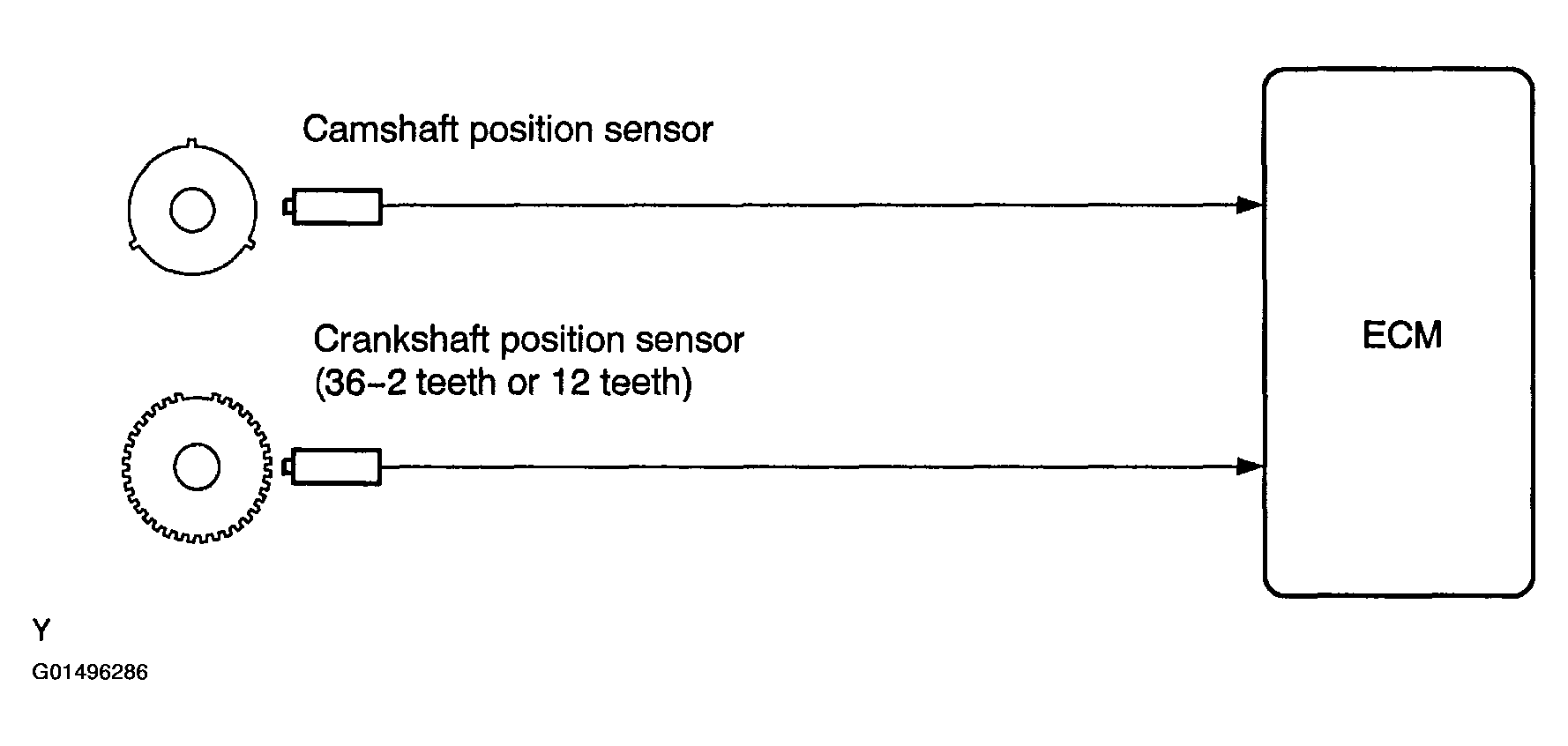

Monitor Description
The ECM illuminates the MIL (2 trip detection logic) if:
The ECM will illuminate the MIL when the percent misfire exceeds the specified limit per 1,000 engine revolutions. One occurrence of excessive misfire during engine start will set the MIL. Four occurrences are required to set the MIL 1,000 revolutions after engine start.
The ECM blinks the MIL (MIL blinks immediately) if:
- Within 200 engine revolutions at a high RPM, the threshold for "percent of misfire causing catalyst damage" is reached 1 times.
- Within 200 engine revolutions at a normal RPM, the threshold for "percent of misfire causing catalyst damage" is reached 3 times.
