Terminals Of Ecu

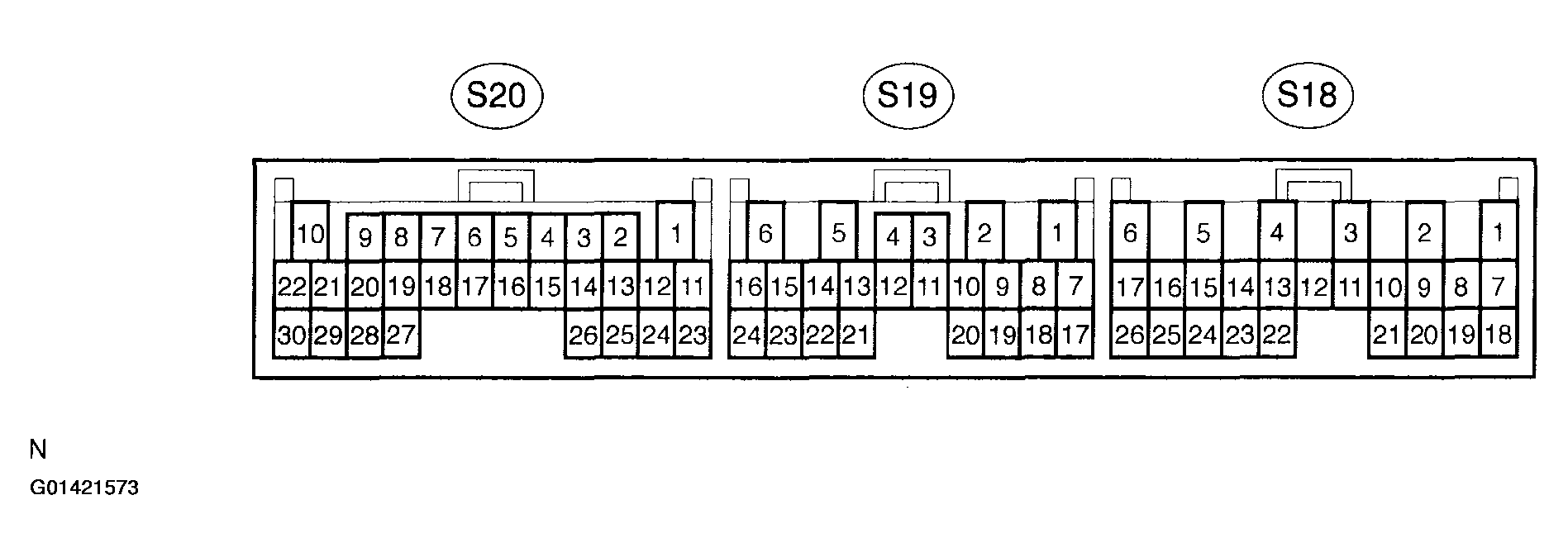

Fig 1: Identifying Terminals Of ECU
G01421573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

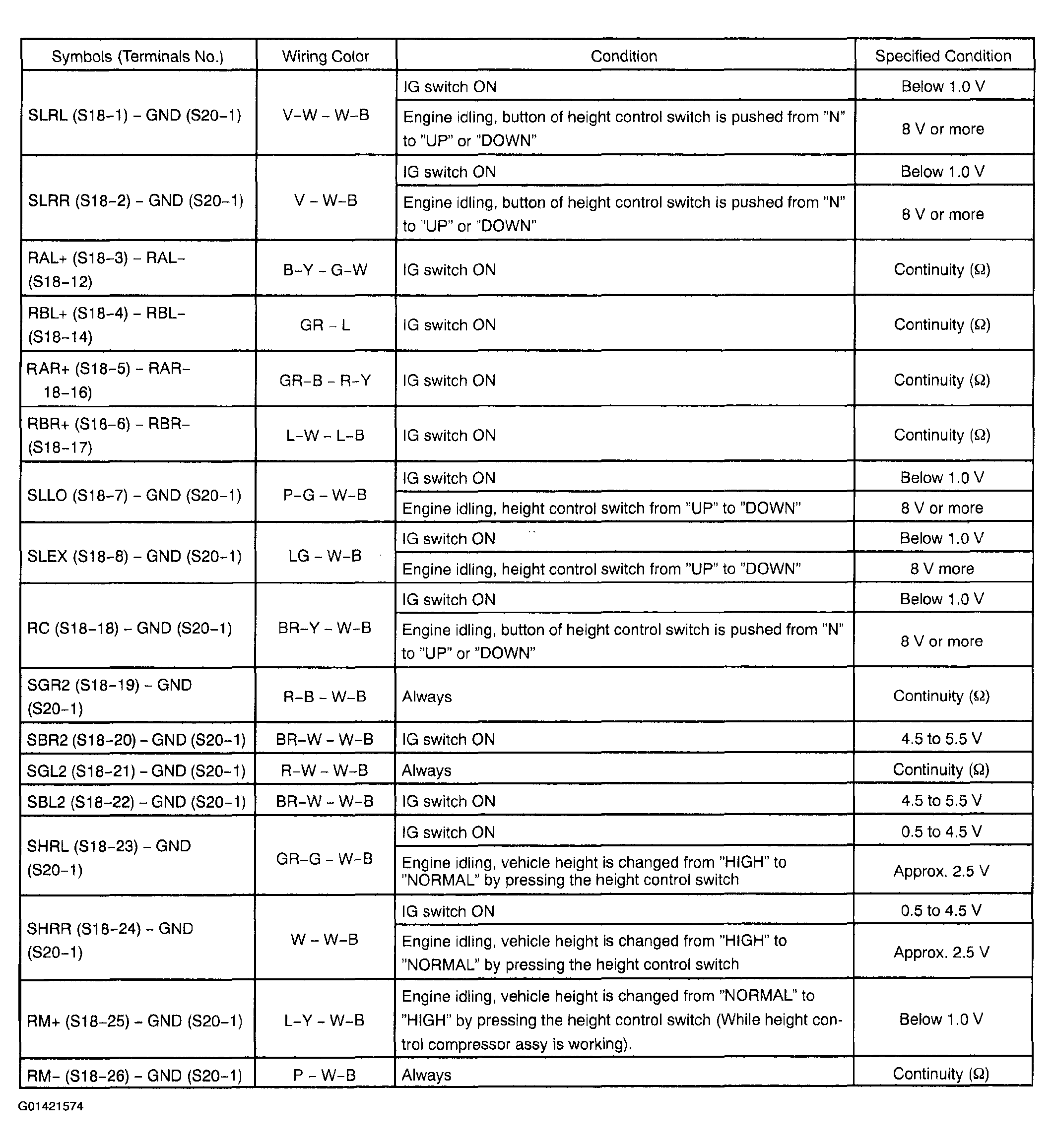

Fig 2: Symbols Specification (1 Of 3)
G01421574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

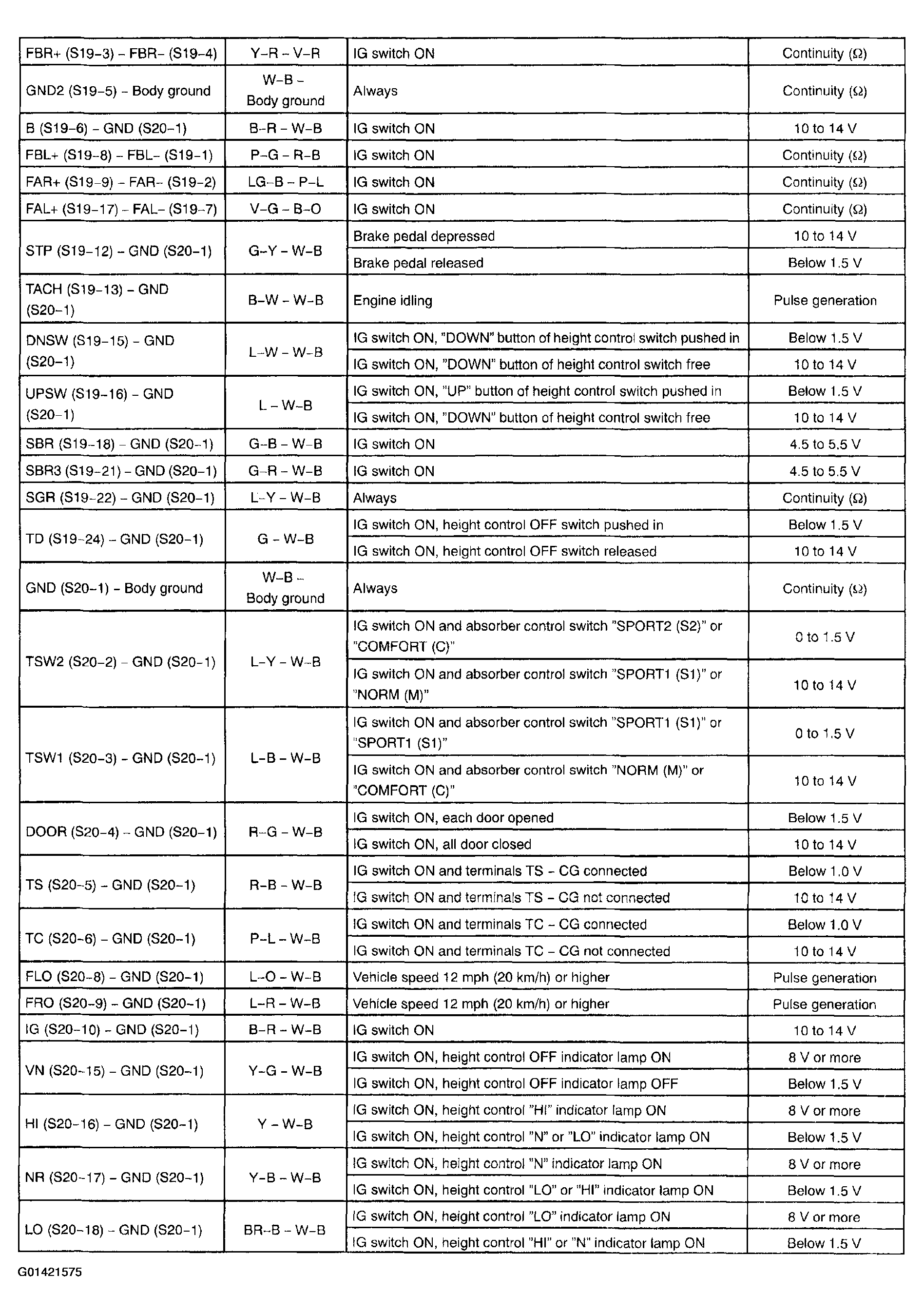

Fig 3: Symbols Specification (2 Of 3)
G01421575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

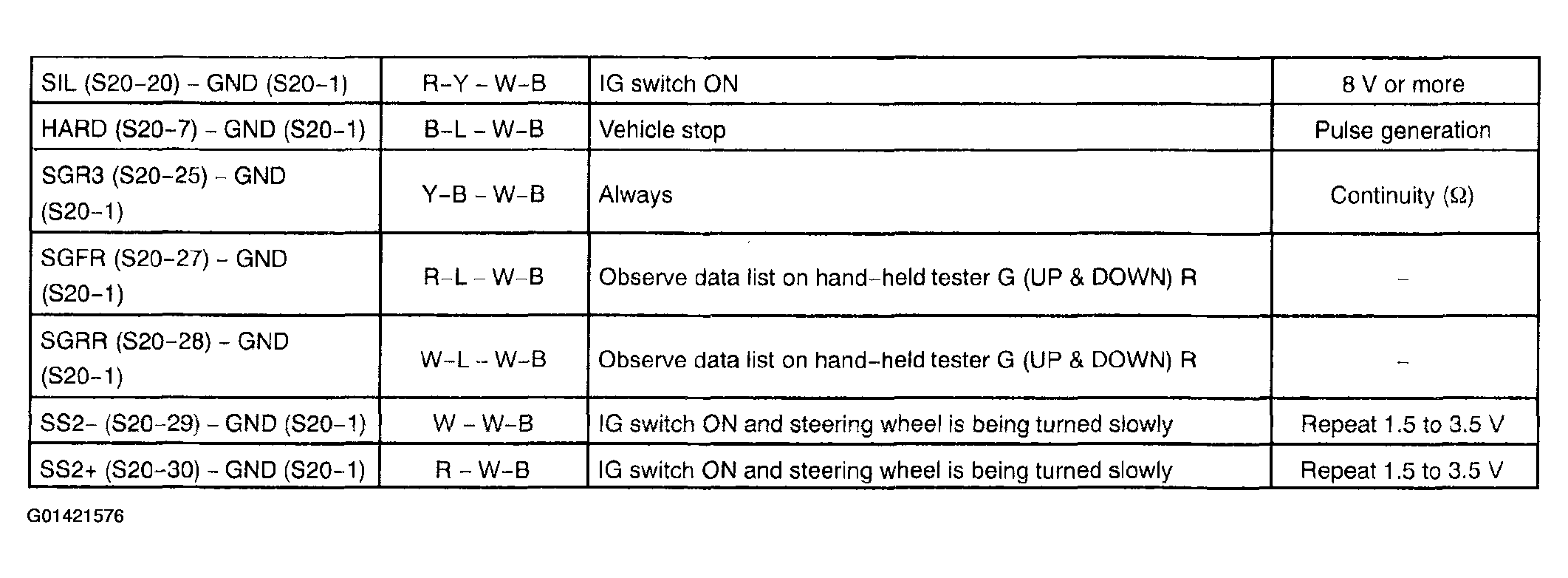

Fig 4: Symbols Specification (3 Of 3)
G01421576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
