Electronic Modulated Suspension & Rear Air Suspension System - Diagnosis: Location

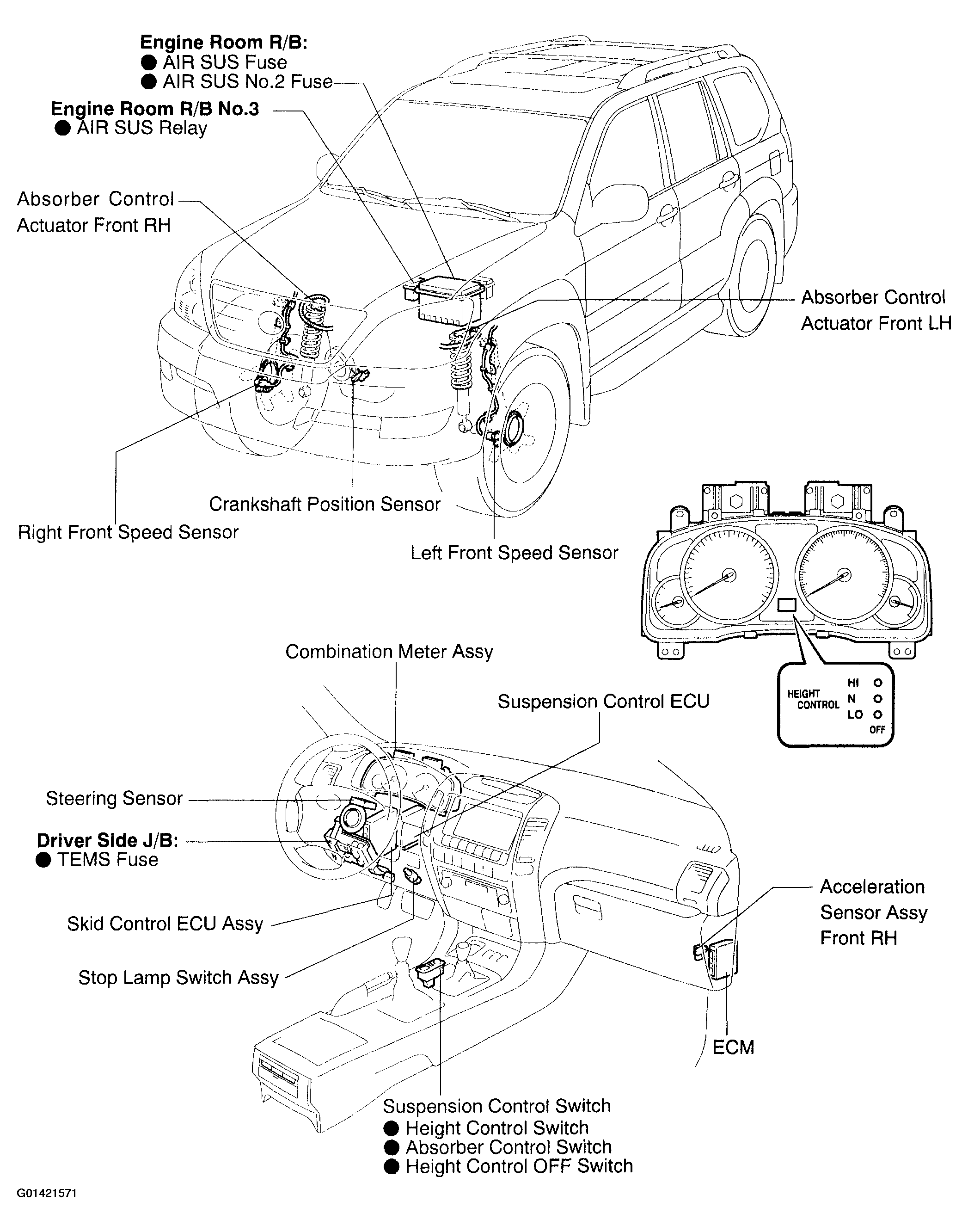

Fig 1: Identifying Electronic Modulated Suspension & Rear Air Suspension System Component (1 Of 2)
G01421571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

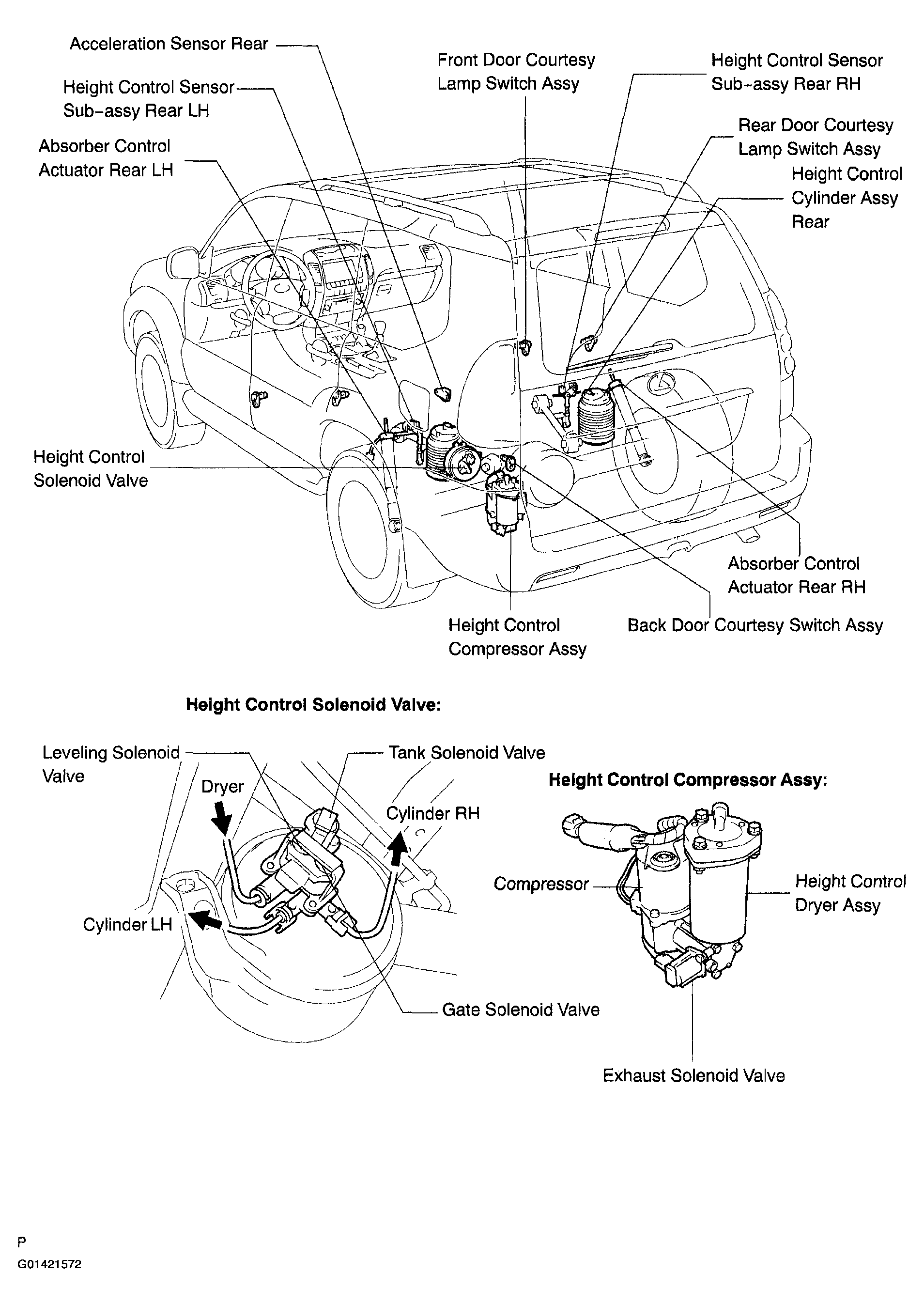

Fig 2: Identifying Electronic Modulated Suspension & Rear Air Suspension System Component (2 Of 2)
G01421572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
