Height Control Off Indicator Lamp Circuit: Wiring Diagram

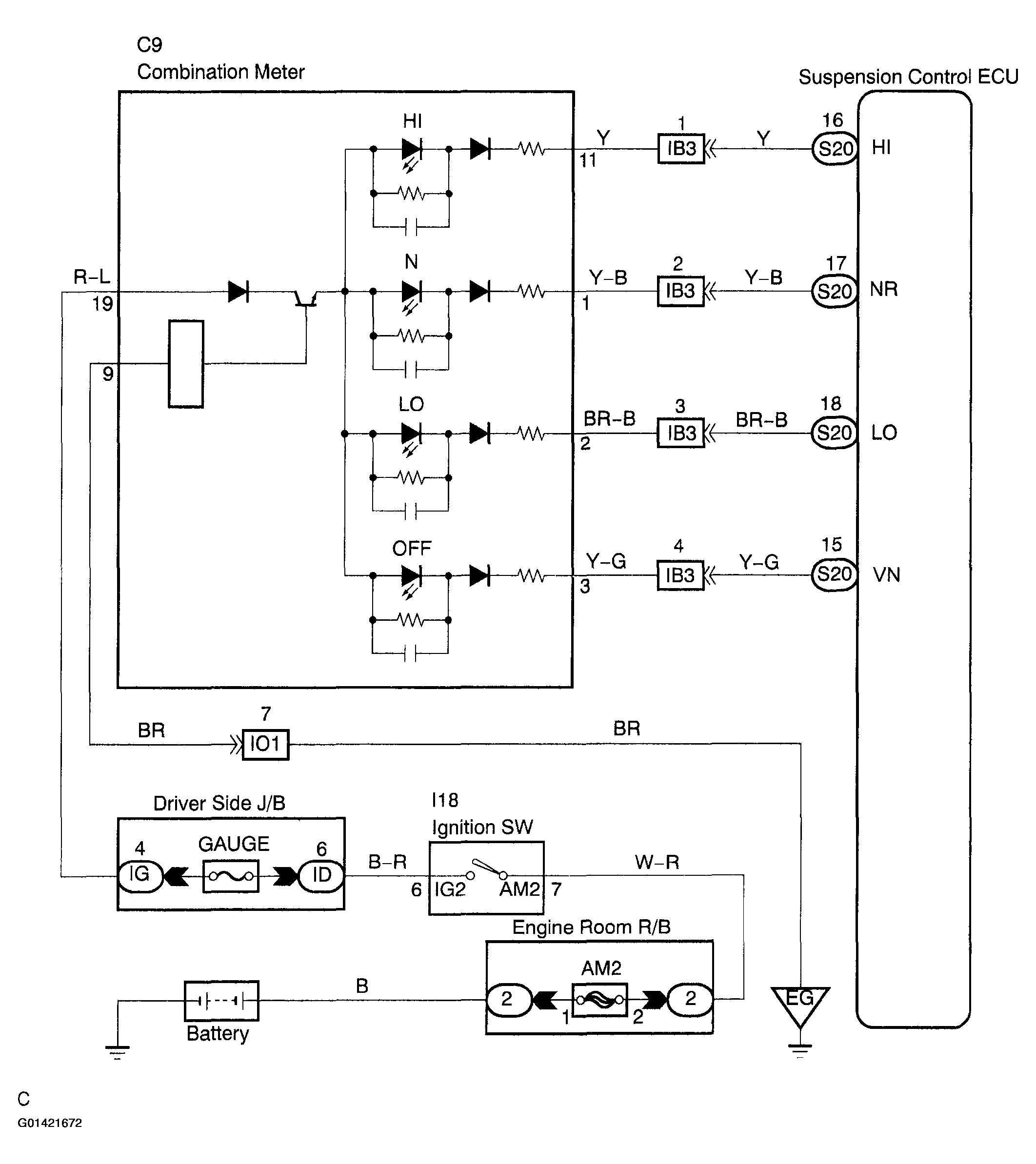

Fig 1: Height Control Off Indicator Lamp Circuit Wiring Diagram

G01421672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
